Fluke 771 Manual

Introduction


To avoid electric shock or personal injury, do not perform the calibration verification tests or calibration procedures described in this manual unless you are qualified to do so. The information provided in this manual is for the use of qualified personnel only.
This manual provides the complete verification and adjustment procedure for the 771 Milliamp Process Clamp Meter (referred to in this manual as the Meter). The Meter allows closed-case calibration using reference sources. It measures the reference signals, calculates the correction factors, and stores them in memory. The instrument should be calibrated after repair, or if it fails a performance test.

Symbols

Table 1 explains the symbols that are used on the Meter or in this manual.
Table 1. Symbols

Do not apply around, or remove from HAZARDOUS LIVE conductors
danger Risk of danger. Important information. See Users Manual.
shock hazard Risk of Electrical Shock
Equipment protected by double or reinforced insulation
Battery
Low Battery
Conforms to relevant European Union directives
DC (Direct Current)
Do not dispose of this product as unsorted municipal waste. Go to Fluke's web site for recycling information.

N10140
Conforms to relevant Australian standards
Conforms to relevant Canadian and US standards
Equipment is designed to protect against transients in equipment in fixed-equipment installations, such as distribution panels, feeders and short branch circuits, and lighting systems in large buildings.

Specifications

Current Ranges ±20.99 mA ±21.0 mA - ±99.9 mA
Resolution 0.01 mA 0.1 mA
Accuracy 20.99 mA range
99.9 mA range
0.2% reading ±5 digits
1% reading ±5 digits
Maximum Reading ±99.9 mA
Influence of Earth's Field < 0.20 mA
Battery 2 AA 1.5 V Alkaline, IEC LR6
Working hours 45 hours
Size
(H X W X L)
59 mm x 38 mm x 212 mm
(2.32 in x 1.49 in x 8.34 in)
(with clamp nested)
Weight 260 g (9.17 oz) (Including battery)
Operating Temperature -10 to 50°C
(14 to 122°F)
Storage Temperature -25 to 70°C
(-13 to 158°F)
Operating Humidity < 90% @ <30°C (86°F)
<75% @ 30 to 50°C (86 to 122°F)
Operating Altitude 0 to 2000 m (1.24 miles)
Storage Altitude None
IP Rating IP 40
Vibration Requirements Random 2 g, 5 to 500 Hz
EMI, RFI, EMC Meets all applicable requirements in EN 61326-1
Temperature Coefficients 0.1x(specified accuracy)/°C
(< 18°C or > 28°C)
Measurement Category IEC 61010-1
61010-2-032
CAT II 300 V
CAT II Equipment is designed to protect against transients from energy-consuming equipment supplied from the fixed installation, such as TVs, PCs, portable tools, and other household appliances.
Agency Approvals

Getting Acquainted with the Meter

Figure 1 shows the Meter functions and features.
Functions and Features Overview

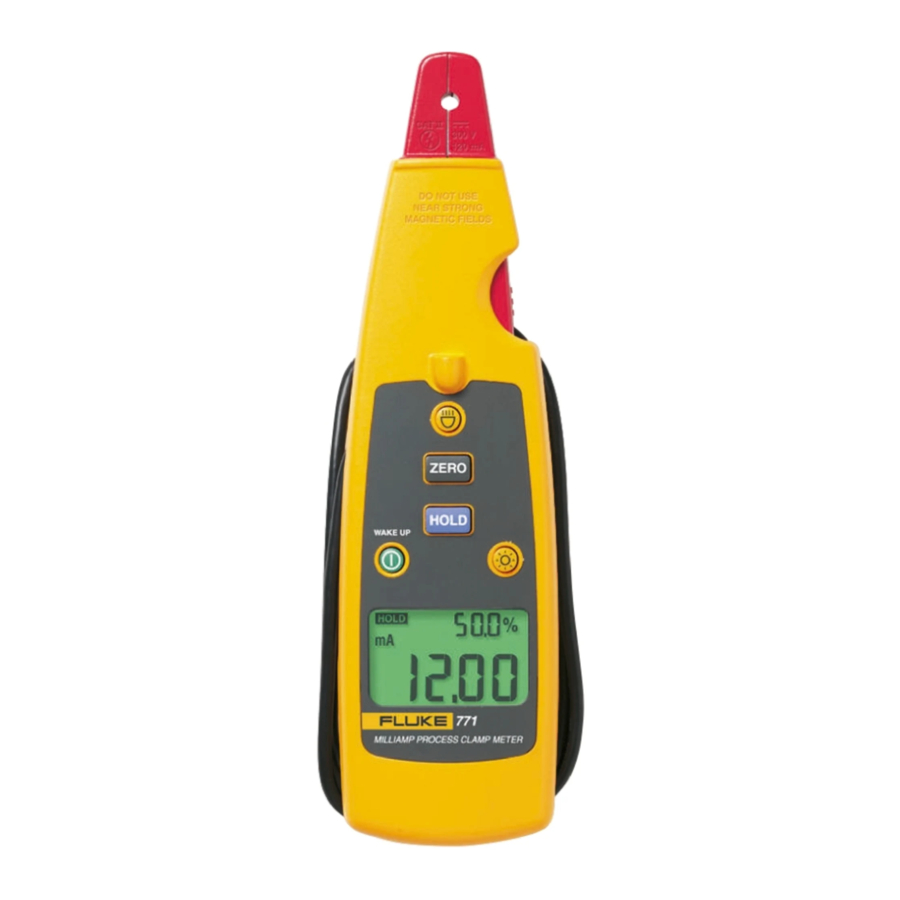

Figure 1. The 771 Milliamp Process Clamp Meter

  1. Turns the Meter on and off. When the Meter is in sleep mode, press this button to wake it up.
  2. Captures and holds the current reading
  3. Removes interference and zeros the display
  4. Measurement spotlight LED button
  5. Measurement spotlight LED
  6. Detachable clamp
  7. Turns the backlight off and on
  8. LCD
  9. Tactile Barrier docked and un-docked

Maintenance


To avoid possible electric shock or personal injury, repairs or servicing not covered in this manual should be performed only by qualified personnel.

Cleaning the Meter


To avoid electrical shock, remove any input signals before cleaning.

To avoid damaging the Meter, do not use aromatic hydrocarbons or chlorinated solvents for cleaning. These solutions will react with the plastics used in the Meter.
Clean the instrument case with a damp cloth and mild detergent.

Battery Replacement


To avoid false readings, that could lead to possible electric shock or personal injury, replace the battery as soon as the low battery indicator () appears.
To replace the batteries:
Changing the Batteries

  1. Turn the Meter off.
  2. Use a flat head screwdriver to loosen the battery access door fastener, and remove the door from the case bottom.
  3. Remove the batteries.
  4. Replace the batteries with two new AA batteries.
  5. Reattach the battery access door to the case bottom and tighten the fastener.

Performance Tests


To avoid electrical shock, personal injury, or fire:

  • Do not perform the verification tests or calibration adjustment described in this manual unless you are qualified to do so.
  • Repairs or servicing should be performed only by qualified personnel.

The following tests are used to verify the functions of the Meter. If the Meter fails any of the verification tests, repair is necessary. For service, see Contacting Fluke.

Required Equipment

Required equipment for the performance tests is listed in Table 2. If the recommended models are not available, equipment with equivalent specifications may be used.
Table 2. Required Equipment

Equipment Minimum Required Characteristics Recommended Model
Calibrator DC Current Accuracy:
Range:
20.99 mA = 0.11 %
99.9 mA = 0.375%
5520A or equivalent
1 loop insulated copper wire Insulated 18 gauge, minimum, copper wire, 6 inch diameter

Testing the Batteries

Prior to performing the following tests, check the batteries with a multimeter and replace as necessary. See Battery Replacement.

Testing the Display

Testing the Display

  1. Press and hold while powering on the Meter.
  2. Compare the Meter display to Figure 3.
  3. Check all display segments for clarity and contrast.

Display Hold Test

  1. Power on the Meter and allow time for the normal operating display to appear.
  2. Press and observe that appears on the display. flashes at 3 to 4 second intervals.

Backlight Test

  1. Power on the Meter and allow time for the normal operating display to come up.
  2. Press and observe that the backlight comes on.

Spotlight LED Test

  1. Power on the Meter and allow time for the normal operating display to come up.
  2. Press and observe that the spotlight LED comes on.

Zero Test

  1. Power on the Meter and allow time for the normal operating display to come up.
  2. Press . The main display momentarily reads 0.00, and the percentage scale momentarily reads -25.0%.

Accuracy Tests

Accuracy specifications are valid for 1 year after calibration when measured at an operation temperature of 18°C to 28°C. Allow the Meter to stabilize at room temperature prior to performing the accuracy tests.
Table 3 lists the required performance test points for verifying Meter accuracy. A zero adjustment must be performed prior to completing each performance test point.
Perform the tests as follows:

  1. Connect a single loop of 14 gauge insulated copper wire to the calibrator AUX output terminals.
  2. Clamp the Meter jaw around the wire with the jaw arrow pointing toward the calibrator HI terminal.
  3. Output 0 mA dc from the calibrator.
  4. Press on the Meter.
  5. Set the calibrator output for the value in Step 1 of Table 3.
  6. Compare the Meter displayed reading with the display reading limits in Table 3.
  7. Complete steps 2-4 for each calibrator output setting in Table 3.
  8. If the Meter fails to meet any of the Display Reading Limits, it requires calibration adjustment, or repair. See Calibration Adjustment or Contacting Fluke.

Table 3. Accuracy Tests

Step Unit Under Test Function Calibrator Output Setting Unit Under Test Display Reading Limits
Lower Limit Upper Limit
1. mA dc 100 mA dc 98.5 101.5
2. -100 mA dc -100.7 -99.3
3. 20 mA dc 19.91 20.09
4. -20 mA dc -20.09 -19.91
5. 12 mA dc 11.93 12.07
6. -12 mA dc -12.07 -11.93
7. 4 mA dc 3.94 4.06
8. -4 mA dc -4.06 -3.94

Calibration Adjustment

Adjustment Subroutines

The Meter features closed-case calibration adjustment using a known reference source. The Meter measures the applied reference source, calculates correction factors, and stores the correction factors in nonvolatile memory.
There are four adjustment subroutines in the Meter adjustment procedure:

  • Low Range (±20 mA)
  • High range (±100 mA)
  • Temperature
  • Phase

Note
Temperature adjustment should always be performed prior to performing the other adjustment routines. The phase adjustment routine is ONLY required if the unit is repaired or the current clamp is replaced.

Front Panel Operation for Adjustment

Use a small probe to press the calibration button once to enter the Meter's calibration mode. The calibration button is usually covered by the factory calibration seal. A second press of the button saves new calibration constants and exits calibration mode.
Accessing the Calibration Button
In calibration mode, is used to select subroutines: low range, high range, temperature, or phase. A short press of (<1 second) will toggle between low and high range subroutines. A long press (>1 second) will toggle between temperature and phase subroutines.

  • Pressing is valid for all subroutines and normal operation. Pressing will zero the reading.
  • In the low and high range subroutines, and are used to adjust the negative and positive gain of the range.
  • In the temperature subroutine, only is valid for adjustment.
  • In the phase subroutine, and are used to adjust the phase of two sensor-excitation signals by increasing or decreasing a parameter.

Calibration Error Messages

Table 4 lists the calibration error messages that can be shown on the Meter display.
The suggested actions to eliminate messages are also listed.
Table 4. Error Messages

Error Message Cause of Error Suggested Action
CAL ERR1 The difference between the input level and the zero point is less than the minimal threshold when performing low range and high range adjustments. Check current loop and ensure correct current is generated.
CAL ERR2 Calibration parameter checksum failure. Execute all adjustments including temperature and phase.
CAL ERR3 Code checksum failure. The Meter requires repair.

Calibration Adjustment Procedure

Allow the Meter to stabilize to room temperature before beginning the calibration adjustment.
To prepare for adjustment:

  1. Remove the battery door and calibration seal.
  2. Clamp the current loop in the current flow direction where required.
  3. Turn the meter on and wait at least 10 seconds for warming up.
  4. Press the hidden calibration button with a probe to enter calibration mode. See Figure 4.

Temperature Adjustment Procedure

  1. Press for >1 second until t23 appears on the percentage display.
  2. Wait at least 60 seconds for the internal temperature to balance.
  3. Press to adjust the temperature.

Low Range Adjustment Procedure

  1. Clamp the Meter's current clamp around an insulated 18 gauge, copper wire, with 6-inch diameter. Current flow should be in the direction of the arrow on the current clamp.
  2. Press < 1 second until CAL 20 appears on percentage display.
  3. Output 0 µA dc from the calibrator.
  4. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  5. Press on the Meter to zero the reading.
  6. Output 20 mA dc from the calibrator.
  7. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  8. Press on the Meter to adjust the positive gain.
  9. Output -20 mA dc from the calibrator.
  10. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  11. Press on the Meter to adjust the negative gain.

High Range Adjustment Procedure

  1. Clamp the Meter's current clamp around an insulated 18 gauge, copper wire, with 6-inch diameter. Current flow should be in the direction of the arrow on the current clamp.
  2. Press < 1 second until CAL 100 appears on percentage display.
  3. Output 0 µA dc from the calibrator.
  4. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  5. Press on the Meter to zero the reading.
  6. Output 100 mA dc from the calibrator.
  7. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  8. Press on the Meter to adjust the positive gain.
  9. Output -100 mA dc from the calibrator.
  10. Wait at least 15 seconds for the Meter's internal circuits to stabilize.
  11. Press on the Meter to adjust the negative gain.

Note
The following procedure is not required unless the Meter's current clamp has been replaced.

Phase Adjustment Procedure

Phase Adjustment Procedure

  1. Clamp the Meter's current clamp around an insulated 18 gauge, copper wire, with 6-inch diameter. Current flow should be in the direction of the arrow on the current clamp.
  2. Press >1 second until the percentage display indicates the Meter's currently saved phase value.
  3. Output 0 µA dc from the calibrator.
  4. Press on the Meter to zero the reading.
  5. Rotate the Meter's clamp around the current loop conductor and record the minimum and maximum values of the Meter's display reading. See Figure 5.
  6. Use and , to adjust the difference between the minimum and maximum value recorded in Step 5, until the reading difference is less than 0.05 mA.

User Replaceable Parts

Table 5 and Figure 6 list all user replaceable parts.
Replaceable Parts Overview
Table 5. Replaceable Parts

Item ID Description P/N Qty
1 Decal 2723063 1
2 Case top assembly
(does not include decal, order separately)
2720362 1
3 Keypad 2723056 1
4 Jaw assembly (Includes cable) 2722971 1
5 Screw, m2.2x0.8,8mm, pan, phillips, steel, zinc-black chromate, thread form 1991287 2
6 Case, bottom
(does not include battery contact, order separately)
2720285 1
7 Cable cleat 2720328 1
8 Screw, 4-14,.375,pan, phillips, steel, zinc-black chromate, thread form 2800097 2
9 Battery contact, dual 666435 1
10 Screw, m3,13.5mm, pan, phillips, steel, zinc-black chromate, thread form 2388412 2
11 Battery, primary, mno2-zn, 1.5v, 2.24ah, 15a, lr6,alkaline, aa, 14x50mm, bulk 376756 2
12 Battery pad, urethane, adhesive-back, 20.0mm l, 20.0mm w, 5.0mm thk 2687457 1
13 Battery door
(does not include fastener, order separately)
2720304 1
14 Access door fastener 948609 1
15 LED housing 2720319 1
- Soft case, black/yellow 2726174 1
- 771 Instruction Sheet 2567301 1

Safety Information

In this manual, a Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies conditions and actions that may damage the test instrument.
The design and manufacture of the device conforms to the latest state of technology and the safety standards specified in IEC 61010-1/2nd edition. If used improperly, there is a risk of damage to persons and property.

To avoid possible electric shock or personal injury, follow these guidelines:

  • Read this manual before use and follow all safety instructions.
  • Use the Meter only as specified in this manual; otherwise, the Meter's safety features may be impaired.
  • Before each use inspect Meter and cable for damage. Look for cracks and missing portions of the clamp and cable. Do not use if clamp is damaged.
  • Use caution when working with voltages above 33 V rms 47 V peak or 70 V dc these voltages pose a shock hazard.
  • Do not use to measure ac current.
  • Do not use to measure dc mA in circuits carrying more than 300 V CAT II.
  • Avoid working alone so assistance can be rendered in an emergency.
  • Use extreme caution when working around bare conductors or bus bars. Contact with the conductor could result in electric shock.
  • To avoid false readings that can lead to electrical shock and injury, replace the batteries as soon as the low battery indicator () appears.
  • Adhere to local and national safety codes. Individual protective equipment must be used to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • When measuring, keep fingers behind the Tactile Barrier.
    See Figure 1.
  • Not for use with non-insulated conductors.


To avoid damage to the Meter, do not open the Meter for cleaning. Do not use solvents to clean it, and do not immerse it in liquid.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Fluke 771 Manual

Advertisement

Need help?

Need help?

Do you have a question about the 771 and is the answer not in the manual?

Questions and answers

Table of Contents
