Chore-Time LIBERTY Feeding System Installation And Operator's Manual page 23

LIBERTY® Feeding System with Electronic Sensor (ES)
Use a hacksaw or bolt cutters to cut the auger at the stretched auger mark.
Boot under Feed Hopper
Pull an extra 8" [200 mm] of auger (minimum)
to allow for Anchor and Bearing Installation
15.Insert the Anchor Assembly into the
auger until it touches the washer at the
back of the anchor. Tighten the setscrews
in the center of the anchor until they touch
the auger, then tighten a maximum of 1/2
turn. See Figure 40.
Do Not Overtighten Set Screws.
Socket head
anchorbearing1
screw
16.Carefully remove the locking pliers while holding onto the Anchor and Bearing Assembly and auger
securely.
17.Slowly ease the auger back into the tube. Use caution. If the auger is allowed to spring back, the bearing
race may crack.
18.Install the Bearing Retainer and fasten with a tube clamp. Keep the Bearing Retainer flush with the end of
the anchor for safety.
19.Place the cannonball in the boot.
MF2426B

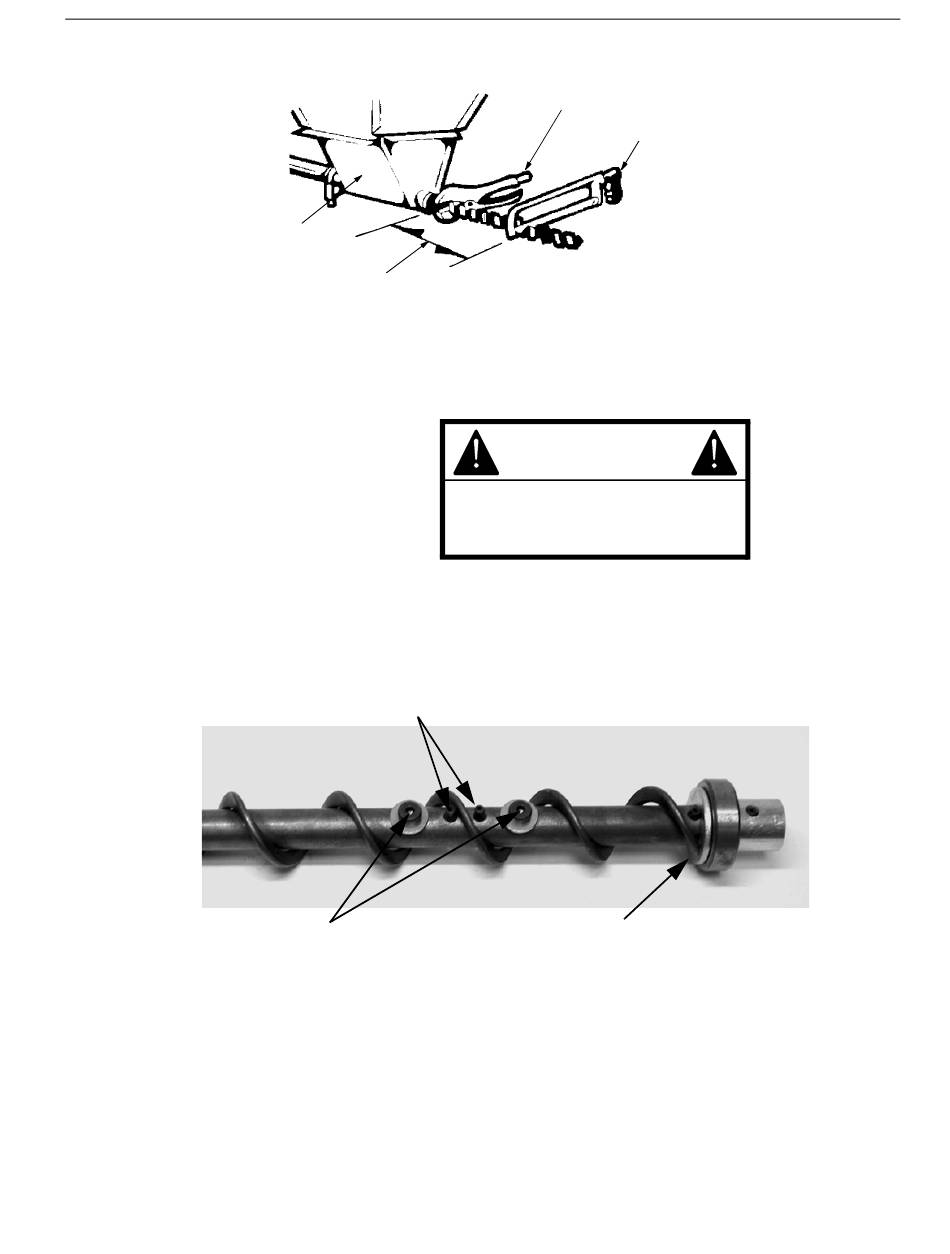

Figure 39.Cut the Auger with required stretch
KEEP HANDS AWAY FROM
PINCH POINTS WHEN INSTALLING
AUGER.
Roll Pins
Auger tip touching
flat washer
Figure 40.Anchor Bearing
Feeder Line Assembly and Suspension
Locking Pliers
Use a hacksaw or bolt
cutters to cut the auger
1523-102 4/2002
CAUTION
23
