Installing the Suspension System
6.After securing the Ceiling Hook to the truss,
slide the hook of a Swivel Pulley into the slot, as
shown in Figure 17.

Drop Installation

Refer to Figure 12 on page 11.
1.Attach a 3004 Pulley to each hook.
2.Thread the end of the 3/32" or 1/8" cable through the pulley toward the winch. Clamp this end to the
3/16" winch cable about 6" [150 mm] from the last pulley, using a 3/16" cable clamp. See
applicable figure; Figure 13 or Figure 17.
3.Allow enough cable length for installation of
the Adjustment Leveler.
Sufficient cable is included to provide
"throwbacks" on drops located beneath and near
the winch. Figure 18 shows a "throwback" cable
arrangement
4.Begin installing suspension drops at the
winch and proceed to the end of the feeder
line. Keep the main cable tight between drops.
It may be necessary to hang a weight on the end of the cable to maintain tension on the line.

Support Cords and Feed Cone

With the large end of the Feed Cone up, slide the straight end of the Support Cord in the openings on each side of
the Feed Cone. The BEAD OF THE CORD must lock under the lip of the cone.
Turkey Feeder
Broiler Feeder
14
LIBERTY® Feeding System with Electronic Sensor (ES)
Ceiling Bracket
1/4" Lag Screw
Swivel Pulley
3/32" Drop Cable

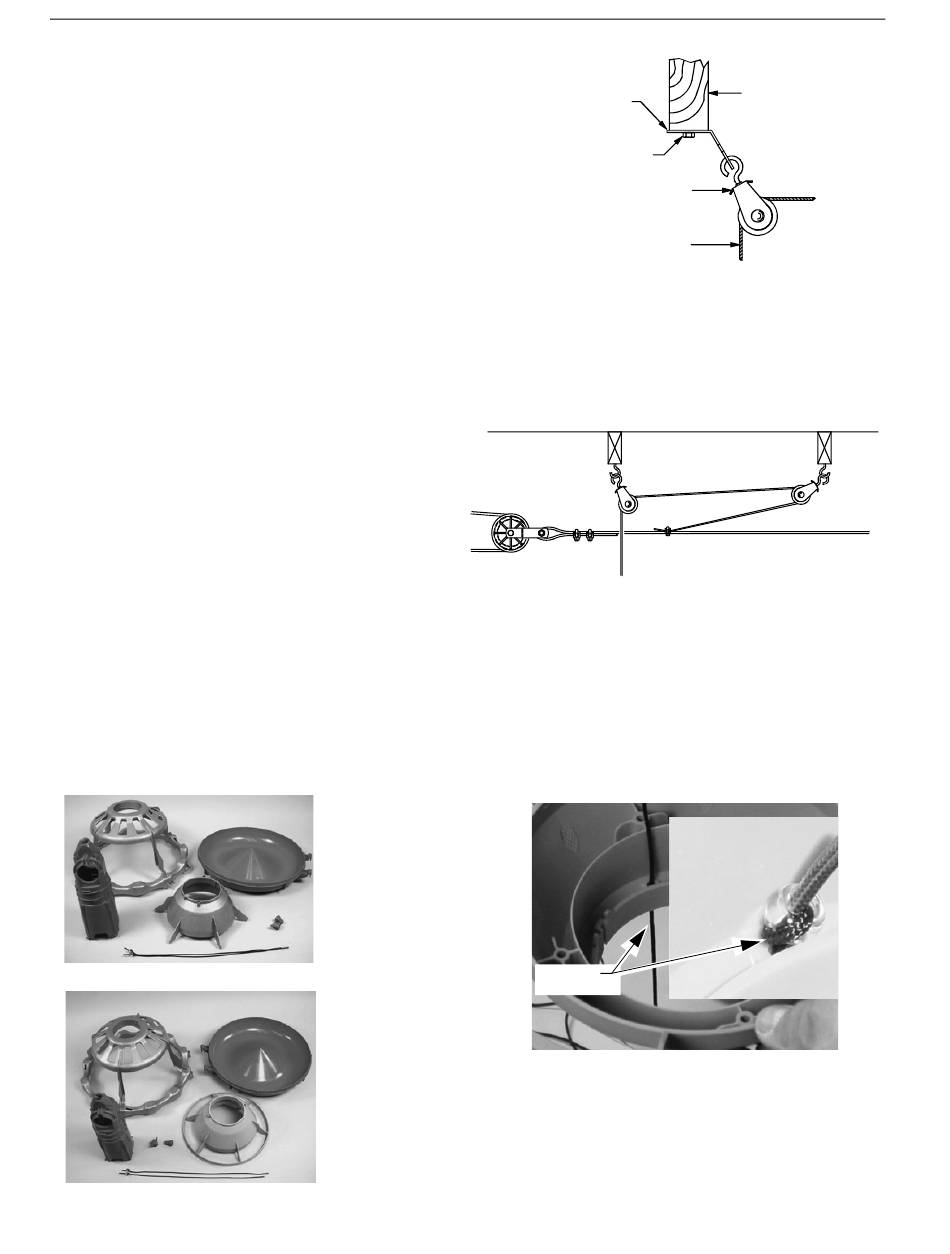

Figure 17.Pulley Installation
Figure 18."Throwback" cable arrangement
CORD
Figure 19. Assembling lift Cords to Feed Cone
Wood Truss
