Midline Control - Chore-Time LIBERTY Feeding System Installation And Operator's Manual

Feeder Line Assembly and Suspension

MIDLINE Control

Midline Control Units are available for the LIBERTY Feeding System Feeder. The Midline Controls are shown
in Figure 60.
NOTE: ALL LIBERTY MID LINE CONTROL HAVE MANUAL FLOODING
The Midline Control makes it possible to operate the feeding system when birds are confined away from the End
Control Unit. Chore-Time recommends placing the Midline Control Feeder at least 2 pans away from the curtain
or partition. See Figure 61.
1.New Feeder Lines: Leave one feeder pan assembly off the feeder tube at the point where the Midline Control
needs to be placed. The feeder line can be assembled and suspended before attaching the Midline Control; or
the Midline Control may be attached to the feeder tube when the other pans are installed.
Existing Feeder Lines: Cut the Grill Support and remove the feeder pan at the location where the Midline
Control will be installed.
Feed Hopper
Note: Both end and mid-line Controls use
32
LIBERTY midline control
with proximity switch

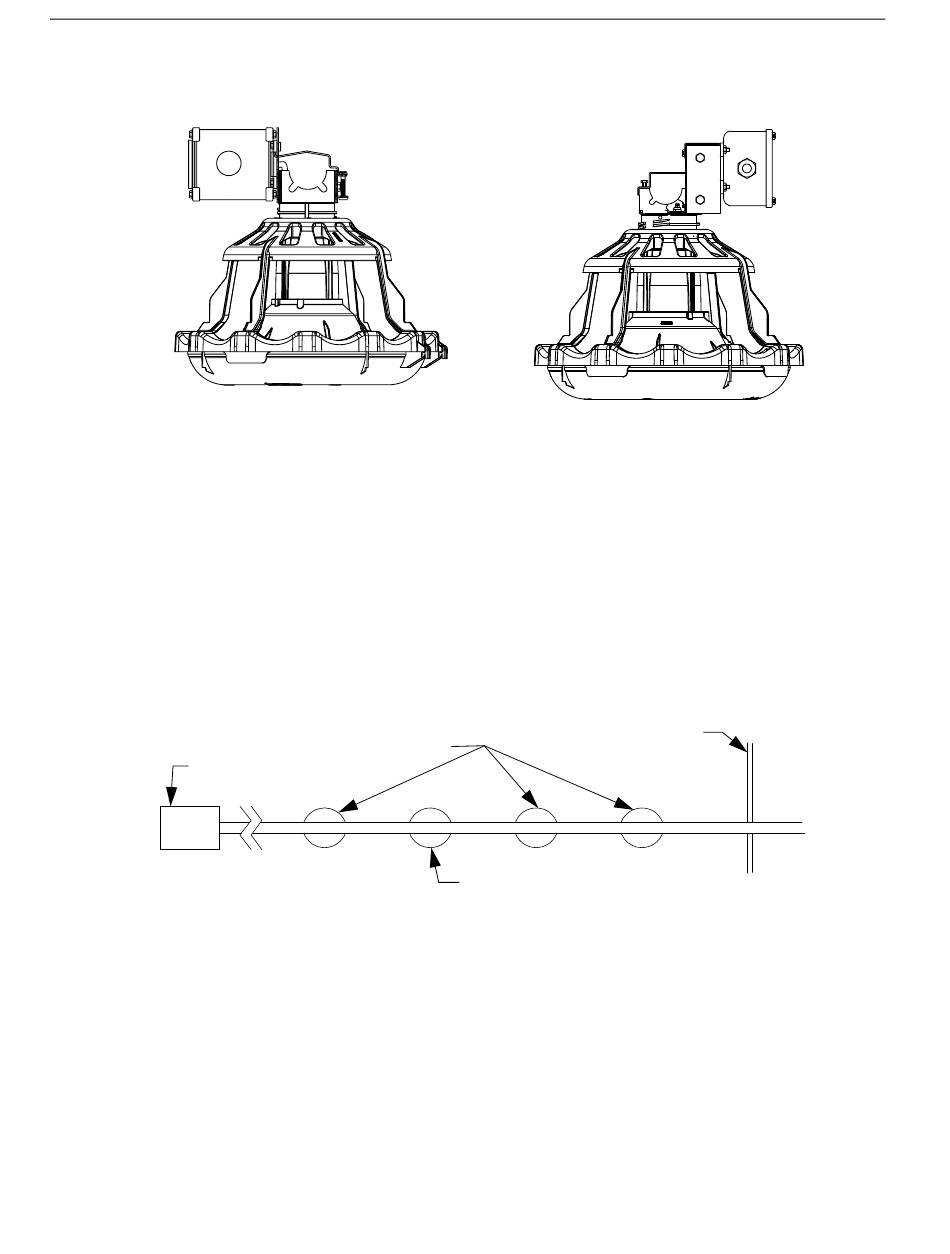

Figure 60.Midline Control Units (Side Views)
Feeder Pans
Figure 61.Midline Control Location Diagram (Top View)
LIBERTY® Feeding System with Electronic Sensor (ES)
LIBERTY midline control
Midline Control Unit
manual
ALL-OUT™ flood.
with mechanical switch
Curtain
MF2426B
