LIBERTY® Feeding System with Electronic Sensor (ES)

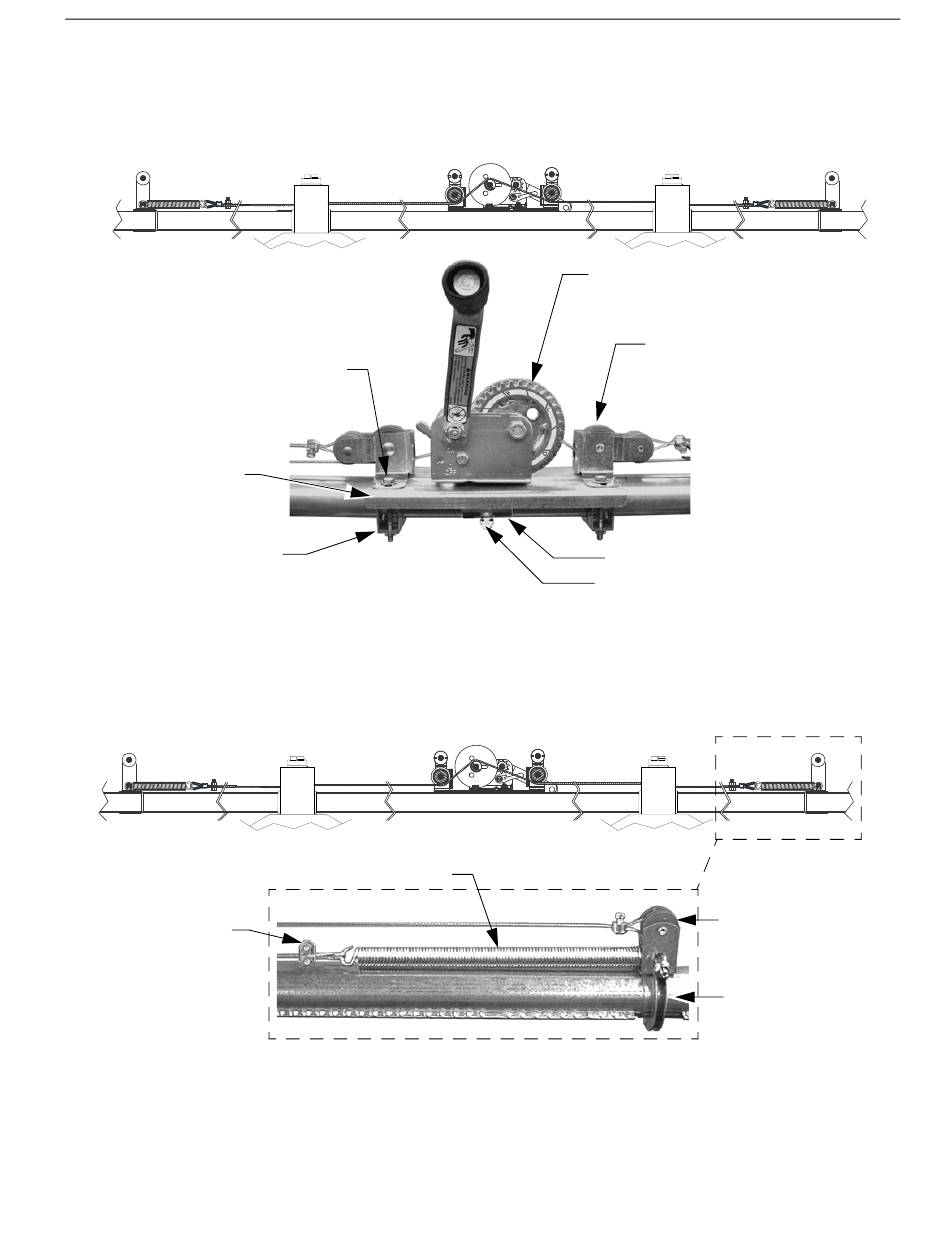

Actuator Installation
Attach the Actuator in the Middle of the system ( Figure 42) It may be necessary to remove a Pan to install the
Actuator. Use a Tube Closure (9126) and Band Clamp (3527) to cover the outlet hole where Pans are removed.
Mount the winch using the Lower Clamp Half (48487) and 1/4-20 x 2.5" Bolts (4404-4) included in the Actuator
Kit. See Figure 43
(4x) 1/4-20 x 2.5" Hex Bolt (3527)
(48933) Actuator Base
(48487)
(2x) Lower Clamp Half
Springs at end of system
Attach a Spring at each end of the system as shown in Figure 44 below.
(14898)
1/8" Cable Clamp
MF2426B
Figure 43.Actuator Installation
11" Spring (24302)
Figure 44.Spring Installation
Feeder Line Assembly and Suspension
(52495) Actuator
(52586) Insulator &
Pulley Assembly
(9126) Tube Closure
(3527) Clamp
(24060)
Anti Roost Bracket
(24063)
Tube Clamp
25
