LIBERTY® Feeding System with Electronic Sensor (ES)
7.Slide the Drive Tube and flat washer
over the output shaft on the Power Unit,
as shown in
Figure 35.
8.Continue installing auger until the auger
reaches the Control Unit end of the
feeder line.
9.Turn the Drive Tube Weldment into
the auger, then attach to the output
shaft of the Power Unit, as shown in
Figure 35. Use the Driver Block to
secure the auger to the Output Shaft
10.Attach the Anchor Plate and
Gearhead Assembly to the Control
Unit Body using the included 1/4"
lock washers and 1/4-20 x 1/2" Bolts. See Figure 36.

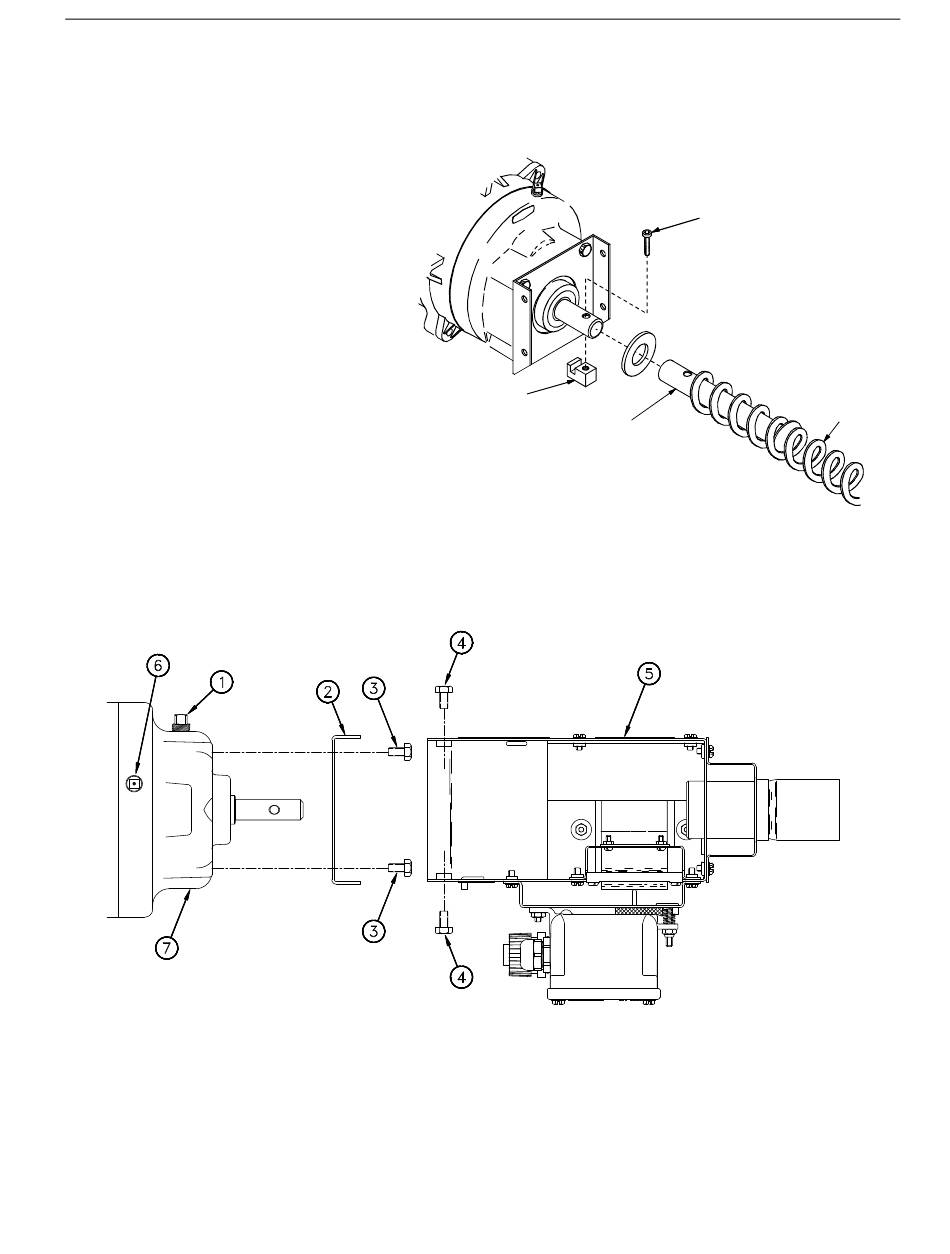

Figure 36.Attaching the Anchor Plate and Gearhead Assembly to the Control Unit Body
MF2426B
Control Unit not
shown for clarity
Driver Block
Drive Tube Weldment
Figure 35.Auger Driver Components
Feeder Line Assembly and Suspension
1/4-20 x 1-1/2"
Socket Head Bolt
