Open-Q 820 µSOM Development Kit
Two additional USB3.0 SuperSpeed ports are located on header J2600. This header allows an end
user to design their own daughter card with additional USB ports. In addition to that, this header can
be used with the Akasa dual USB3.0 PCI slow connector with 19-pin connector (P/N# AK-CBUB17-
40BK).
Note that this header only consists of 19 pins.
Similar to the connector J23, switch S1 position 2 needs to be set to the off position.

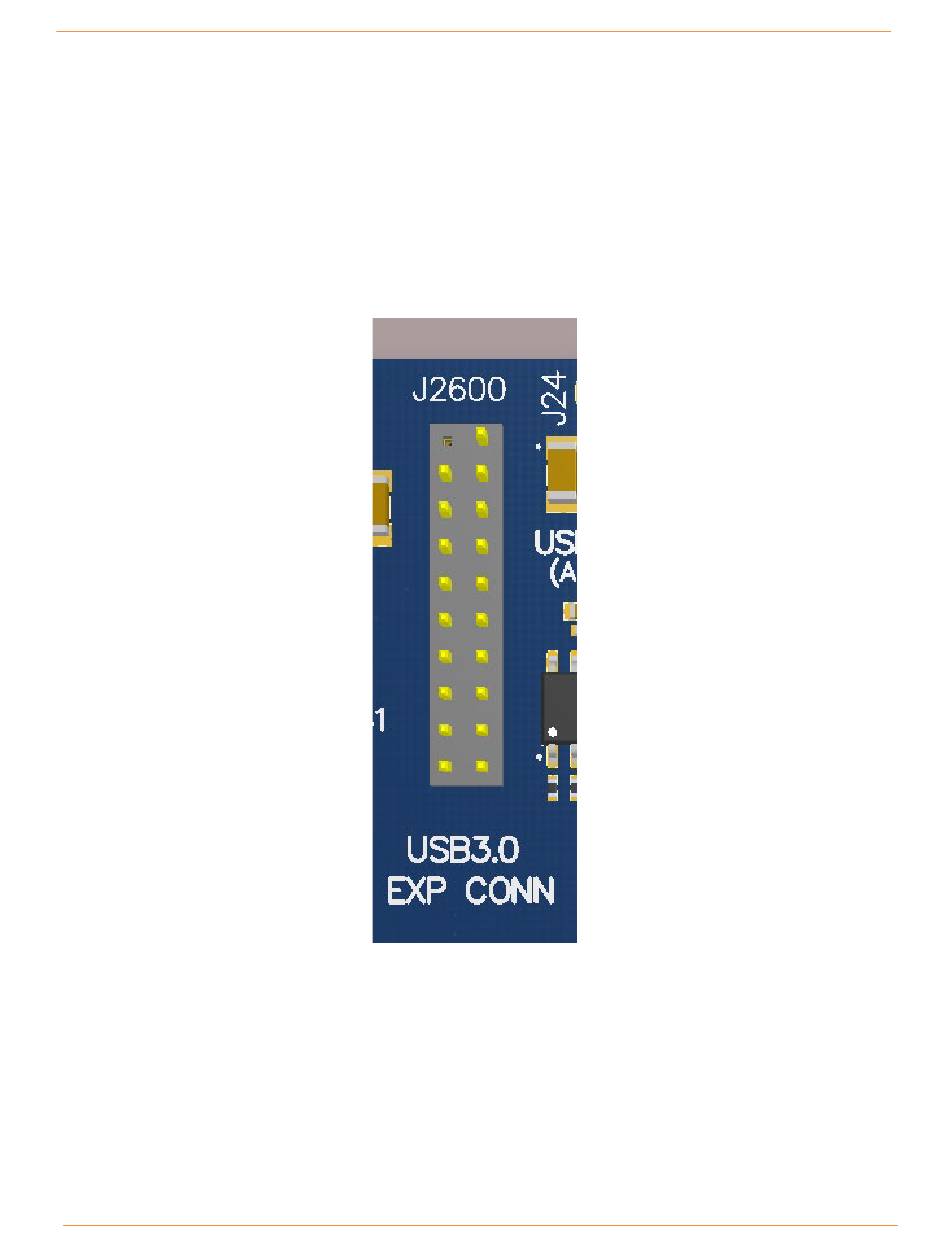

Figure 32 J2600 USB3.0 Expansion Connector
Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide
57
