The µSOM consists of 2 PMIC modules. Functionalities of the 2 modules are outlined below.

PMI8996 PMIC is used for:

Source various regulated power rails

•

Battery charging. Please see section below for additional information on battery support.

•

Please note that support for battery charging over external charger is not implemented in the

•

design. Please contact Lantronix for such customization.

PM8996 PMIC is used for:

Source various regulated power rails

•

Source system clock

Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide

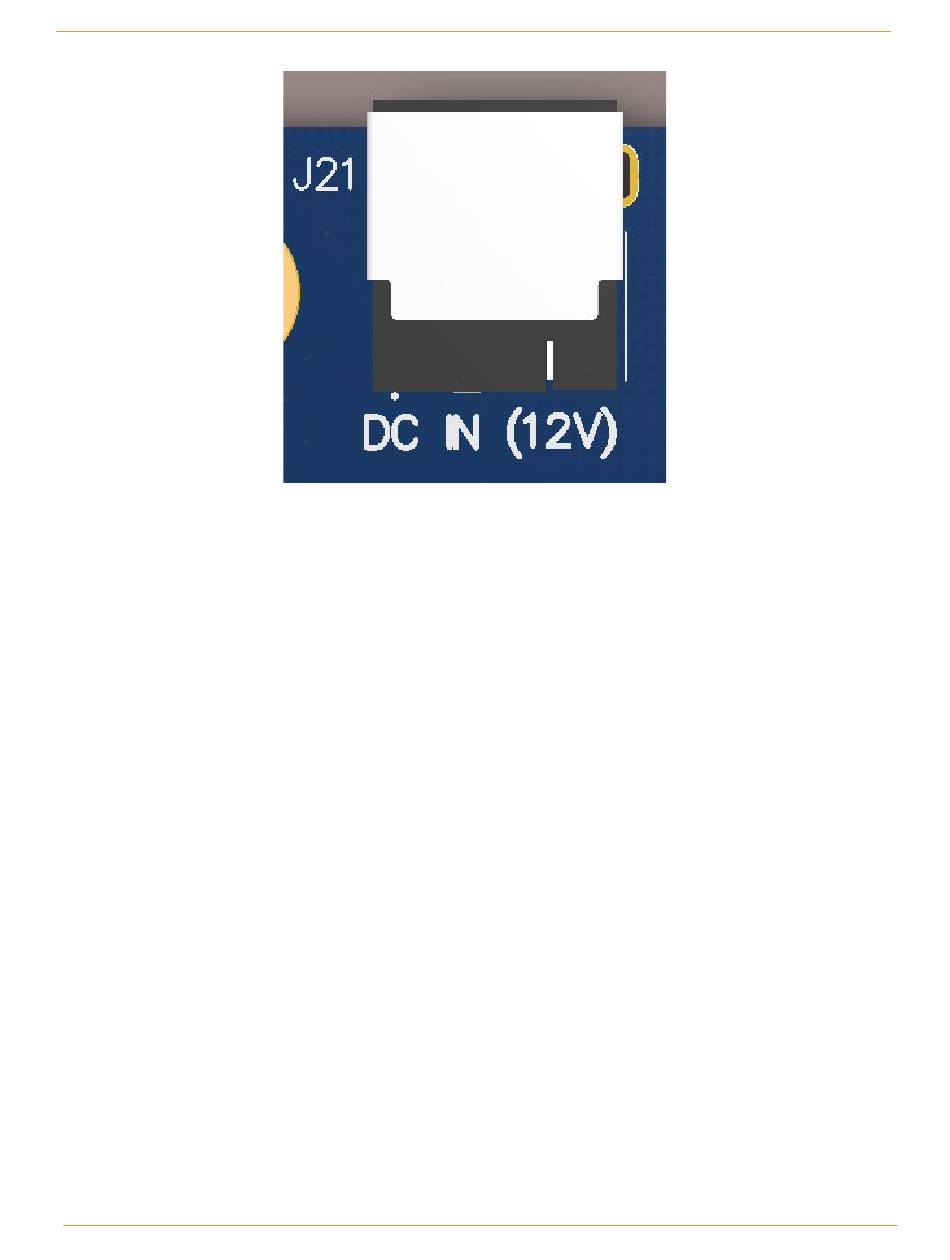

Figure 5 J21 12V DC Power Jack

Open-Q 820 µSOM Development Kit
