o
The Open-Q 820 / 820Pro µSOM development platform can support the following display combinations:
MIPI DSI
HDMI
3.9.16 HDMI Connector J25
The on-board HDMI type A connector enables the Open-Q 820 / 820Pro µSOM development platform to
connect to an external HDMI monitor/ television via an HDMI cable. As part of a new feature, the APQ8096 /
APQ8096SG can now support up to 4K UHD (3840 x 2400 at 60fps) and HDMI 2.0 (4K60)/ 4K30 Miracast.
Please note that the Open-Q 820 / 820Pro µSOM Development kit is for evaluation purposes only and may
not be HDMI compliant.
Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide
Backlight LED
Can support external backlight driver control and power

PMI8996 backlight driver supports three LED strings of up to 30mA each with

28V maximum boost voltage
1 x 4lane DSI0 + 1 x 4lane DSI1
1 x 8 lane combining DIS0 and DSI1 for up to 4K resolution
2 x 4-lane DSI DPHY 1.2 and HDMI (4K60) or 4K30 Miracast
Display 3840 x 2400 at 60fps, 2560 buffer width (10 layers blending)
V2.0 (4K60)

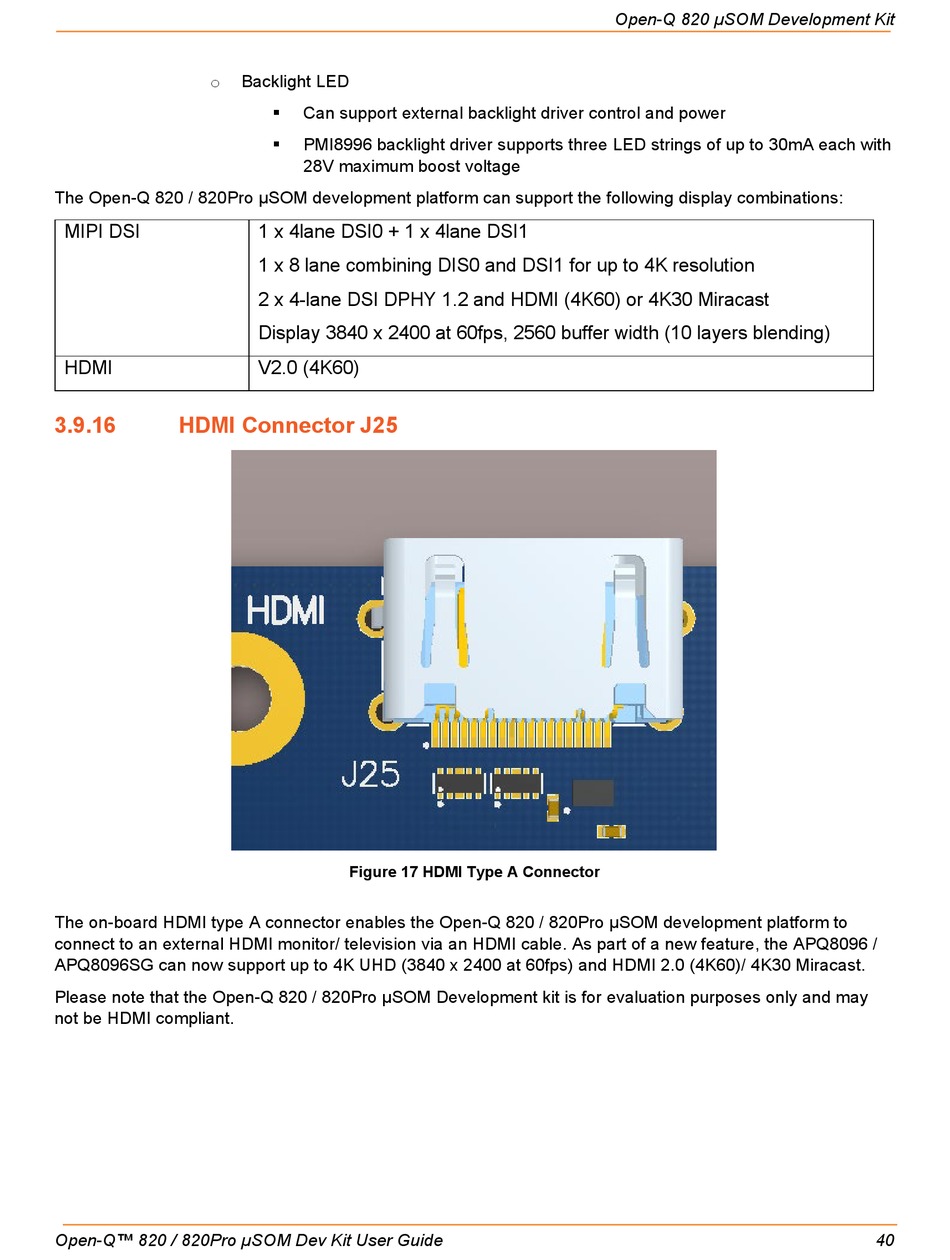

Figure 17 HDMI Type A Connector
