Ethernet AVB Expansion Header J73

This header is used for interfacing with automotive peripherals via Ethernet AVB standard. Note that this is

used for Lantronix internal testing and is not supported.

3.9.23

VIP Expansion Header J71

This header is used for interfacing with Qualcomm® legacy automotive VIP boards. Note that this is

for Lantronix internal testing and is not supported.

Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide

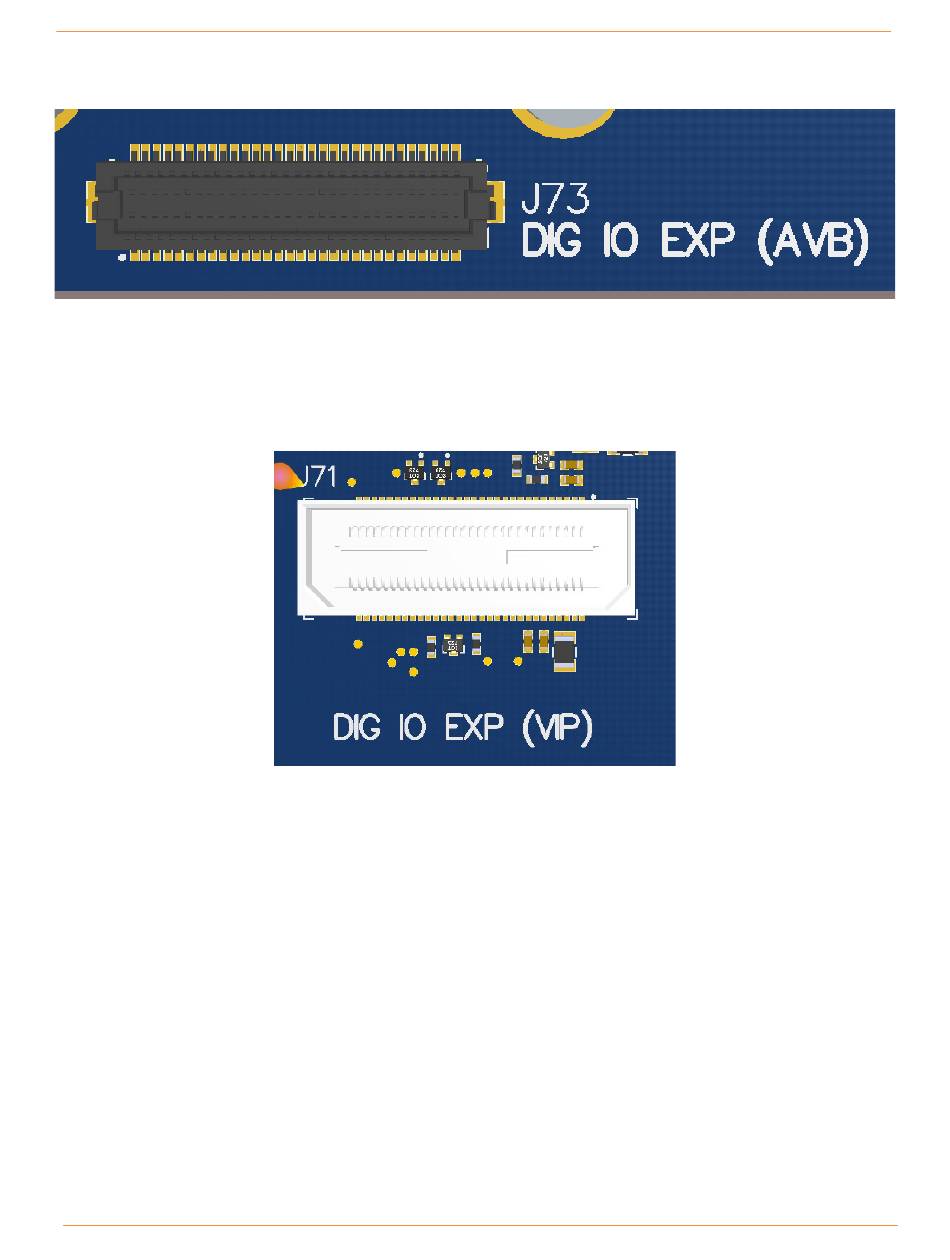

Figure 26 J73 Ethernet AVB Expansion Header

Figure 27 J71 VIP Expansion Header
