Connecting the Display Board to the Development Kit
This configuration allows the user to use the preinstalled LCD display that comes with the display adaptor
board. As shown in the block diagram below, the MIPI DSI0 lines, which come from the 100-pin ERM8
connector, directly connects to the LCD panel. See the section below for more details on this LCD panel. It is
important to note that connector J1 on the display board needs to connect to J2 on the carrier board for this
configuration to work.
Display Adaptor
Board
LCD Display
Panel (Top)
DSI0
Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide
DSI0
DSI1
J1
ERM8
C
O
N
N
E
C
T
O
R
(Bott)

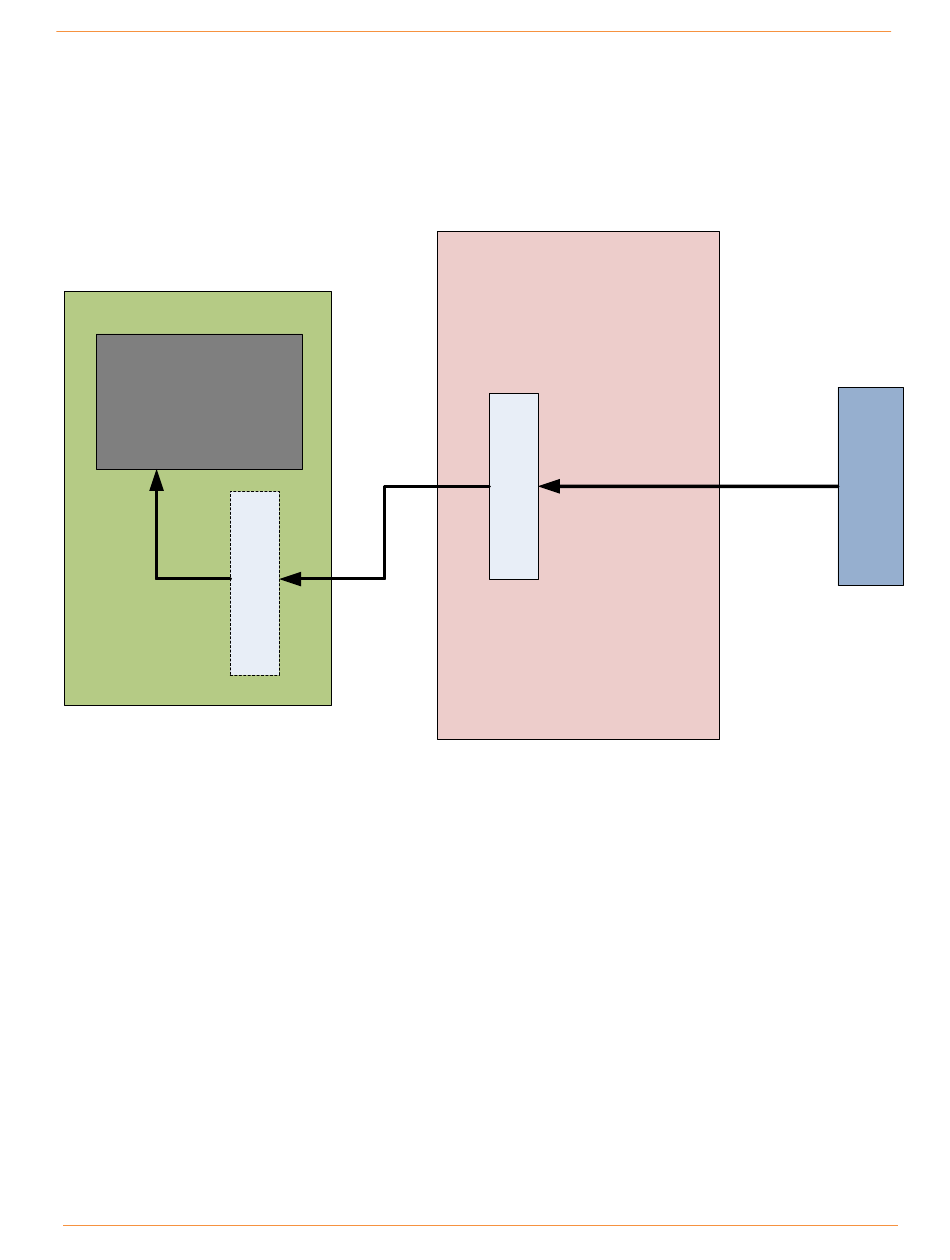

Figure 20 Display Board Default Configuration
Open-Q 820 µSOM Development Kit
Carrier Board
J2
ERF8
C
O
N
N
E
C
T
O
R
(Top)
DSI0
DSI1
S
O
M
Via MXM Connector
44
