3.9.17.1 LCD display panel
The LCD panel comes preinstalled on the Open-Q 820 / 820Pro display adaptor board. Below are the Panel
specifications:
Resolution: 480x854
•
• LCD Type: IPS
• PCAP touch panel with cover glass
No of Lanes: 1 x 2 lane MIPI DSI interface via Display Board.
•
Diagonal Length: 4.5"
•
• Contact sales@lantronix.com
Note: The display above when mounted on the Open-Q 820 Display Adapter is meant to work with the carrier
board. Altering the use of this LCD panel is not recommended.
3.9.18 PCI Express 1X Slot J30
The PCI Express slot J30 used on the Open-Q 820 / 820Pro µSOM development kit is a standard PC style
half card slot. It allows for external peripheral connectivity such as Gigabit Ethernet, Gigabit Wi-Fi, PCIe based
audio / video processors etc. Since there is no native Ethernet connectivity on the Open-Q platform, an off-the
shelf PCIe based Ethernet card can be used here. Please check the software compatibility before connecting
the PCIe Ethernet card. In addition to being able to establish external connectivity, the connector provides
access to the PCIE2 interface which is being routed out from the µSOM.
• PCI slot power specification
Supports half card only
o
o Supports 10W card via PSU
o Supports 25W card via ATX PSU
Open-Q™ 820 / 820Pro µSOM Dev Kit User Guide
for more information

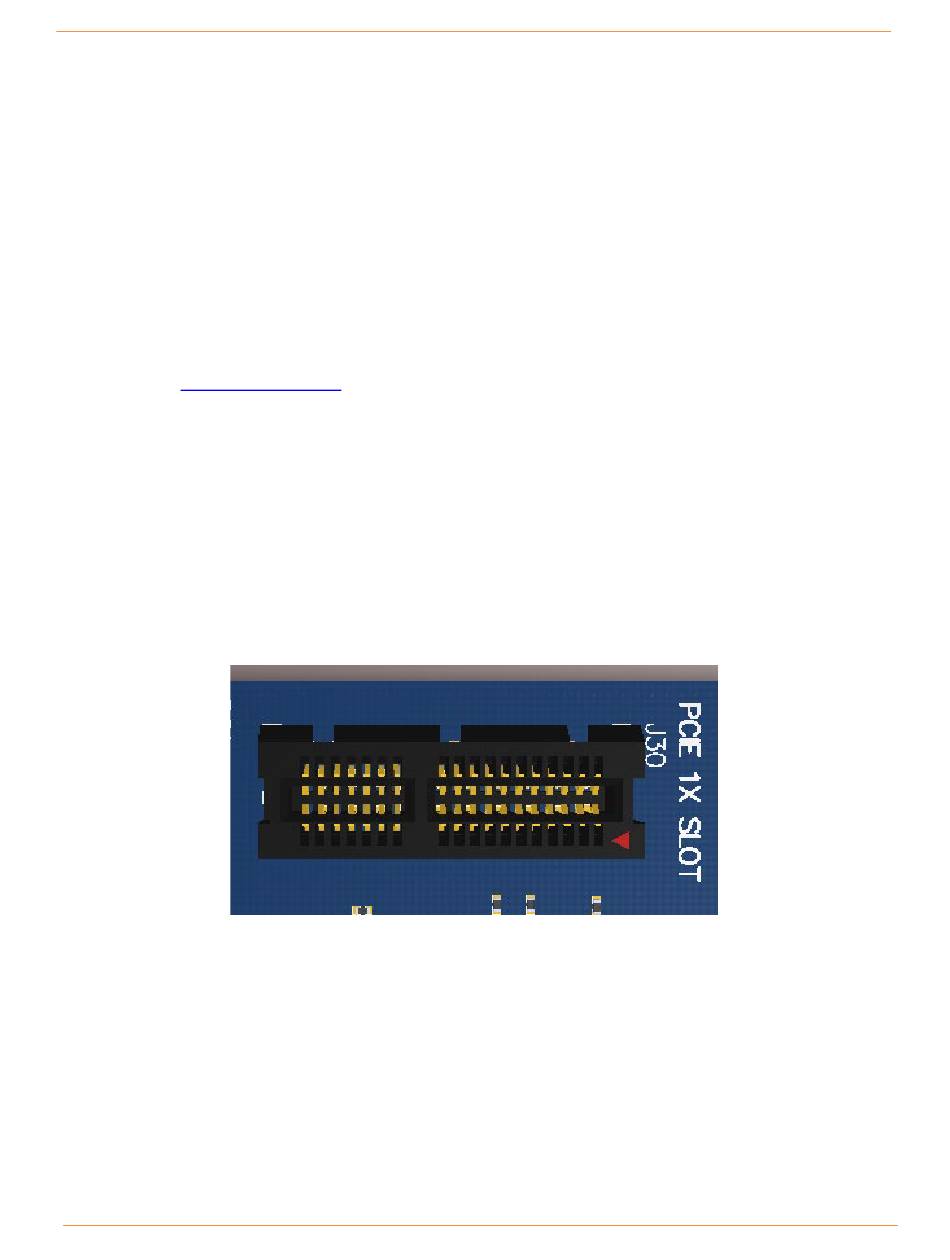

Figure 21 J30 PCIe Connector
