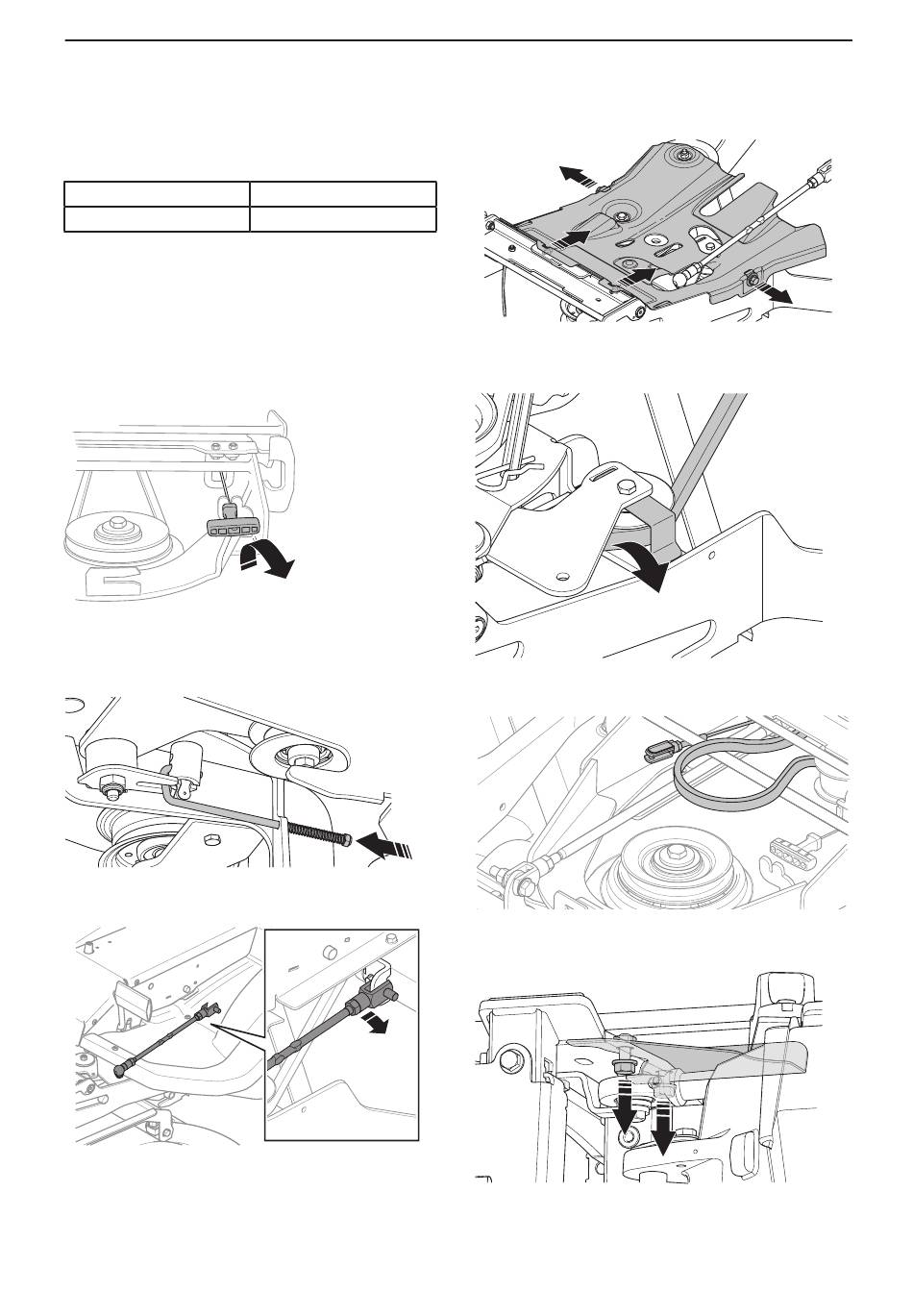

5.6.11 Changing the PTO belt
The condition of the belt pulleys should be checked
when changing belts in the machine. Replace belt
pulleys if necessary.
Tools
Combination wrench
Dismantling
1. Lower the cutting deck.
2. Remove the front cover to access the PTO belt.
3. Release the belt tensioner.
4. Remove the left wing cover.
5. Unhook the lifting chain.
6. Loosen the automatic belt tensioner stay.
Dimension
13 mm
7. Remove the protecting cover on the tool frame.
8. Prise off the belt from the pulley, lift the belt
stop and prise the belt off the belt tensioner.
9. Release the belt from the belt pulley on the tool
frame.
10. Remove the protecting cover under the engine
pulley.
