A3 Horizontal Assembly
Erecting the tower
Rectangular towers are erected via the
shorter side of the frame and rotated
around the longitudinal axis.
Rotate the tower around the
longitudinal axis
1. Brace the tower in the centre with
horizontal diagonal, see fig. A3.05.
2. With a 2-sling lifting gear, attach the
tower on one side and symmetrically
to the tower height.
(Fig. A3.08)
3. Lift tower slightly.
4. Turn tower by 90° and place
down on timber base.
The shorter frame lies at the top/bottom.
(Fig. A3.09)
22
1
2
4
3

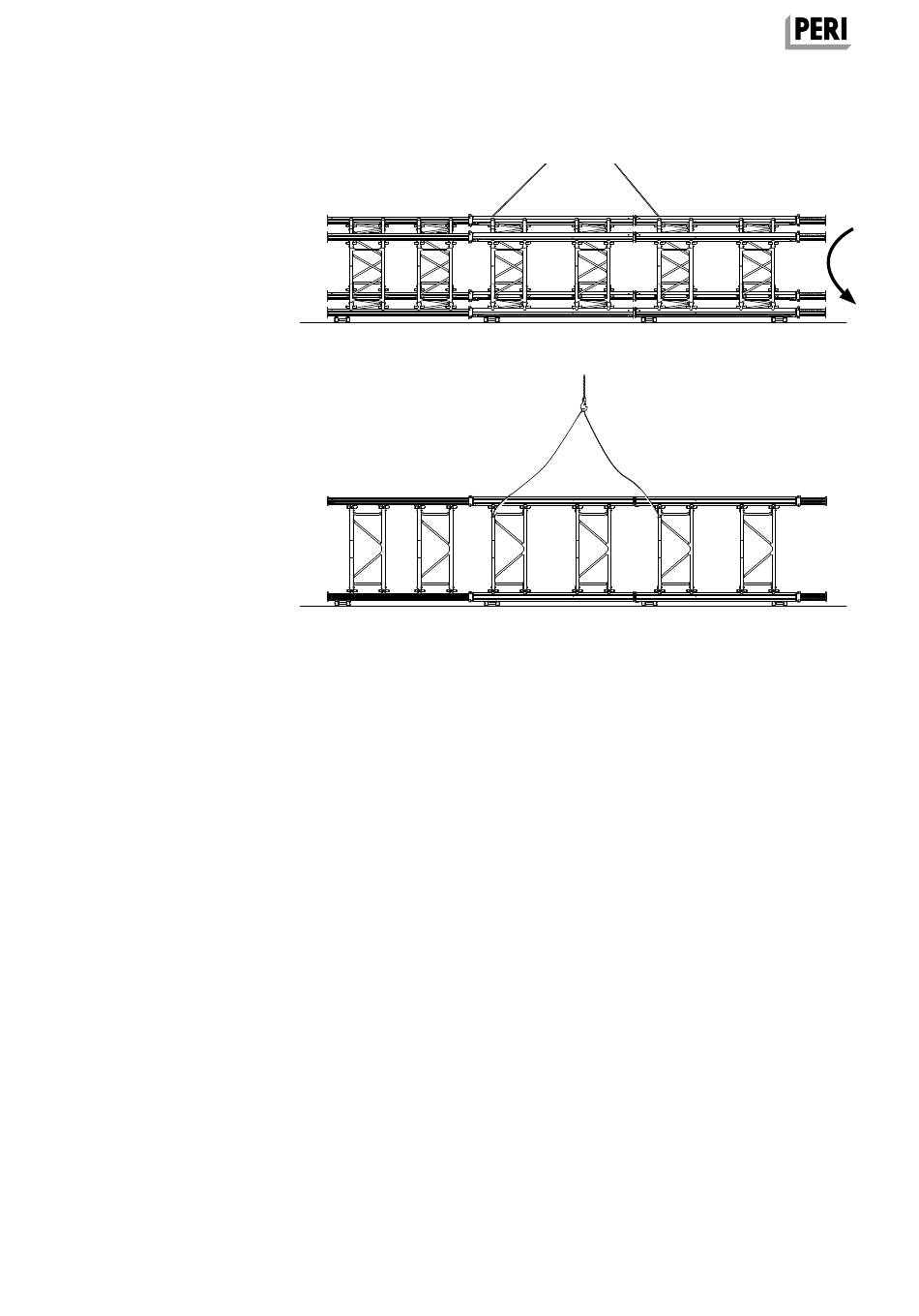

Fig. A3.08
1/4
2/3
Fig. A3.09
