A4 Vertical Assembly
First level
If horizontal assembly is not possible due
to reasons of space or other circumstanc-
es, erection can take place vertically.
Secure props against tipping!
Preparation
1. Adjust lengths of MULTIPROP Props,
see A1.
2. Ensure the required number of
frames are available.
Assembly

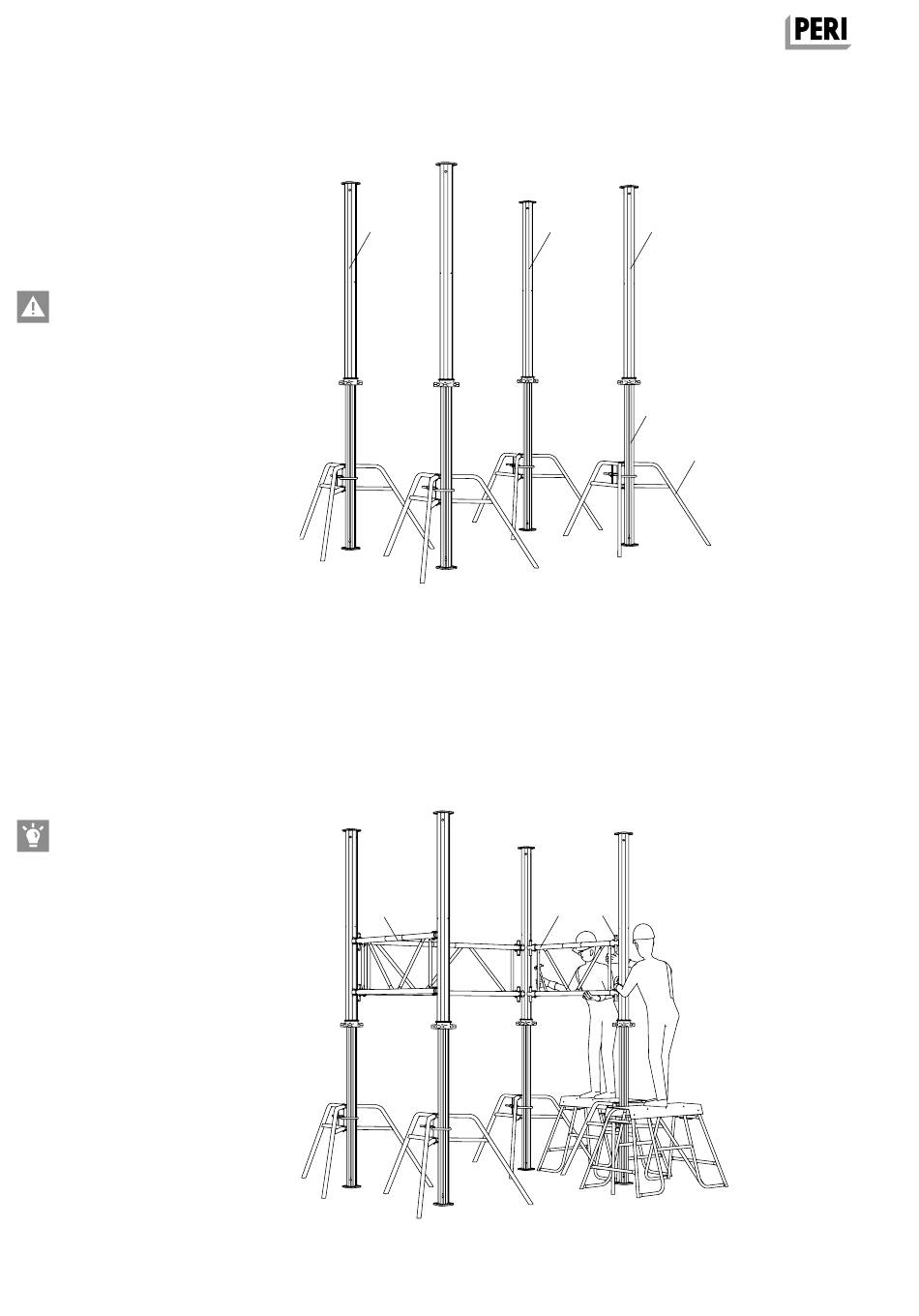

1. Position MULTIPROP Props (1):
– Use the Universal Tripod (12) as an
erection aid.
– Position props in the dimension
between axes of the frames to be
assembled.
– Inner tubes (1.2) are at the bottom.
– The measuring tape (1.6) is pointing
inwards. (Fig. A4.01)
2. Install Frame MRK, see A3:
Use trestles, work scaffolds.
– Place frame (2) on the designated
positions, see plan or type test.
– Securely fix the wedges (2.3) with
a hammer blow in a downwards
direction. (Fig. A4.02)
–
The text on the adhesive label (2.4) is
legible from the ground!
24
1.6
Fig. A4.01
2.4
Fig. A4.02
1.6 1
1.2
12
2 2.3
