Peri MULTIPROP Instructions For Assembly And Use page 29

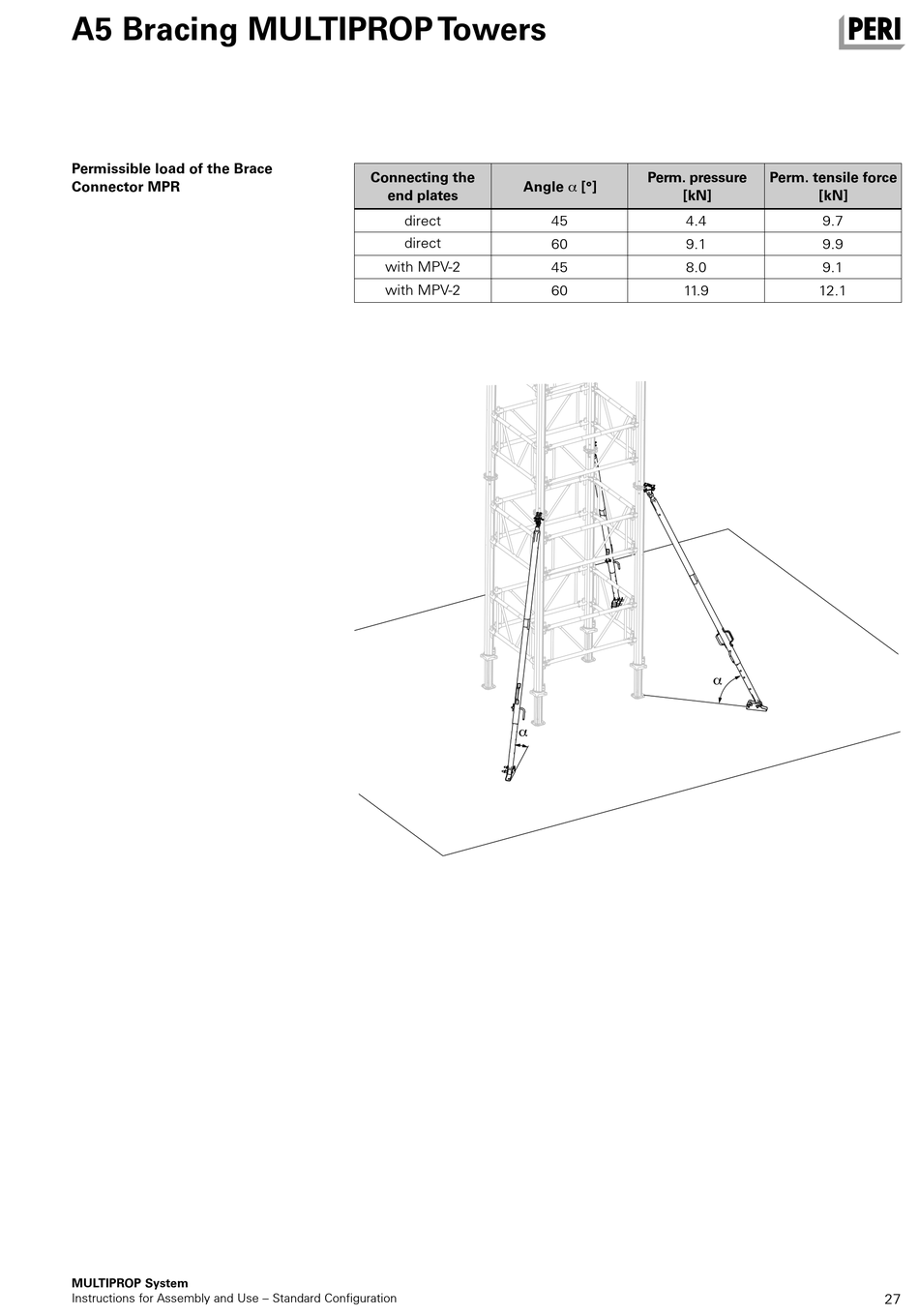

A5 Bracing MULTIPROP Towers
Permissible load of the Brace
Connector MPR
MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
Connecting the
Angle  [°]
end plates
direct
direct
with MPV-2
with MPV-2

Perm. pressure
[kN]
45 4.4
60 9.1
45 8.0
60 11.9

Perm. tensile force
[kN]
9.7
9.9
9.1
12.1
27
