A2 MULTIPROP System
Frame MRK
Set down the MULTIPROP Frames
MRK in a secure position so that
they cannot tip over!
Do not damage the wedge
connection!
Assembly
Always mount the Frames MRK (2) to
the Props (1) so that the wedge can be
hit into position from top to bottom.
(Fig. A2.03)
1. Open wedge connection C (silver)
(2.1) or D (yellow) (2.2). The wedge
(2.3) is at the top. (Fig. A2.04)
2. Engage wedge connection in the
profi le grooves of the MP Tubes.
(Fig. A2.05)
3. Keep the wedge connection closed.
4. Firmly strike the wedge with the
hammer.
5. Close the other wedge connections
in the same way.
The frame is mounted to the prop.
(Fig. A2.05)
If the wedge slips through, there is
no clamping effect!
– In that case, release the wedge and
reconnect.
– For a tight connection to the outer or
inner tube with different jaw opening
"a" two wedge courses are provided
in the wedge itself (2.3).
(Fig. A2.05 jaw opening "a")
– In the clamping area, the prop profi le
must be clean, e.g. free of concrete
residues.
(Fig. A2.06)
12
2

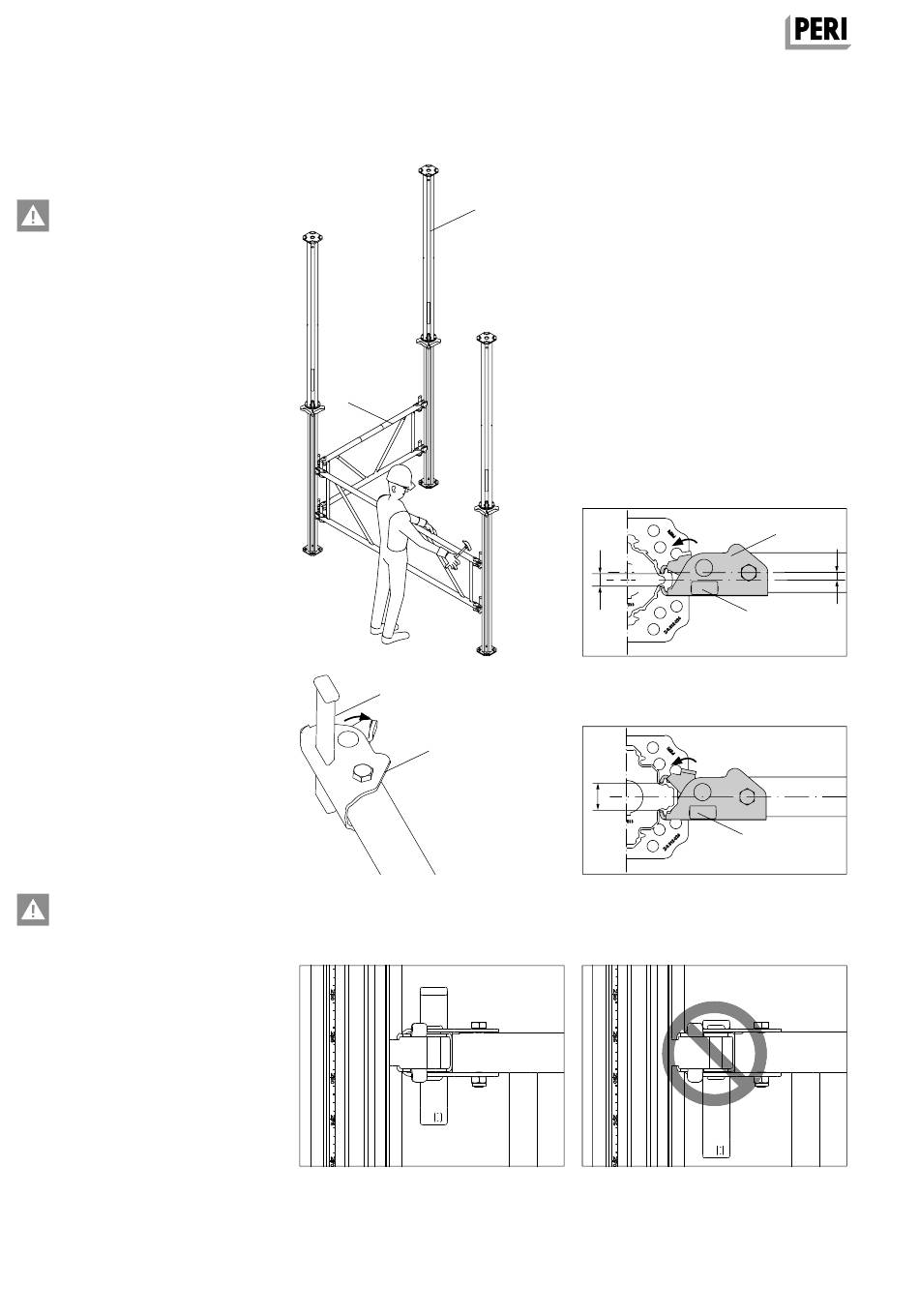

Fig. A2.03
2.3
2.1/2.2
Fig. A2.04
Fig. A2.06
1
Inner tube
a
Outer tube
a
Fig. A2.05
Instructions for Assembly and Use – Standard Configuration
2.1/2.2
e
2.3
2.3
MULTIPROP System
