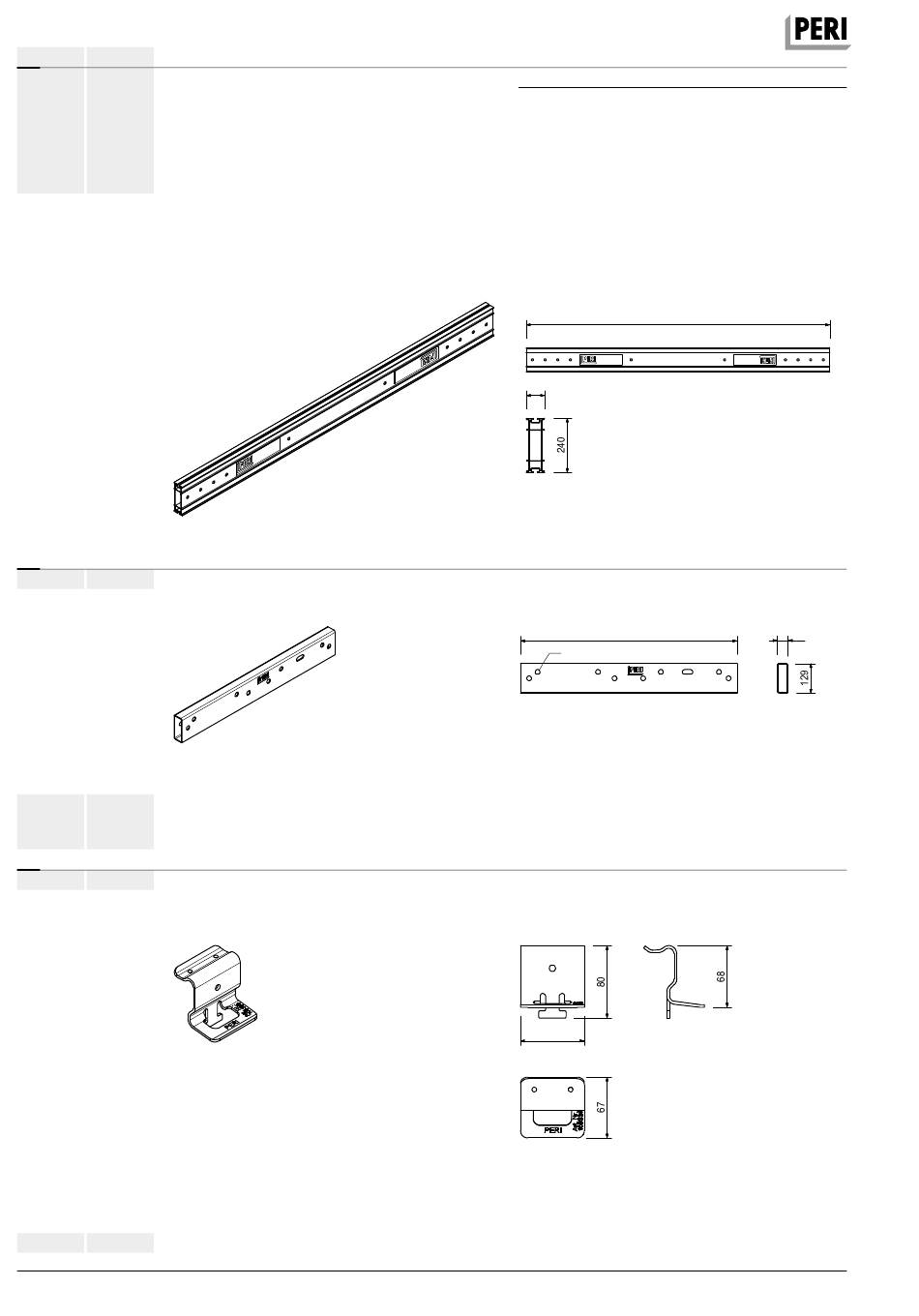

Peri MULTIPROP Instructions For Assembly And Use page 50

MULTIPROP Single Props and System
Item no. Weight kg
Alu Beams MPB 24
079300 24,000 Alu Beam MPB 24 L = 3.00 m
079360 28,800 Alu Beam MPB 24 L = 3.60 m
079420 33,700 Alu Beam MPB 24 L = 4.20 m
079480 38,500 Alu Beam MPB 24 L = 4.80 m
Alu Beam MPB 24 L = 5.40 m
079540 43,300
079600 48,100 Alu Beam MPB 24 L = 6.00 m
Aluminium main beam for the MULTIPROP
system.
Coupling MPB 24
107348 9,590
For connecting the Alu Beam MPB 24.
Accessories
105400 0,330 Pin Ø 20 x 140, galv.
104031 0,462 Fitting Pin Ø 21 x 120
Cotter Pin 4/1, galv.
018060 0,030
Quick Strap MPB 24/GT 24
108339 0,203
For assembly of GT 24 Girders on the Alu Beam
MPB 24.
Accessories
Double Head Nail, L = 65 mm
018280 1,000
48
L
2998
3598
4198
4798
5398
5998
Technical Data
perm. Q = 50 kN
perm. A = 80 kN
perm. M = 15 kNm
L
80
950
Ø21
Ø7
70
Ø5
48
