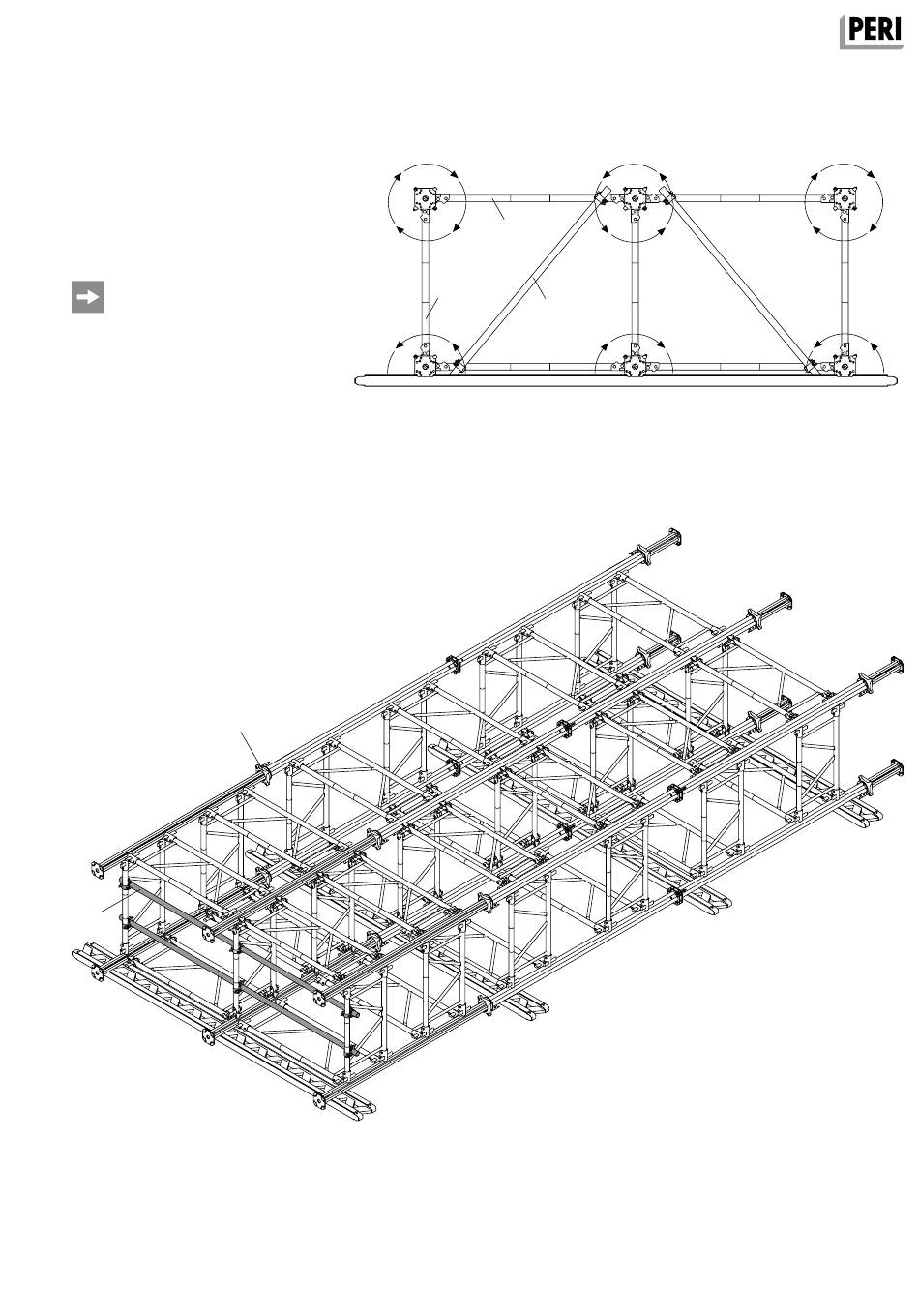

A3 Horizontal Assembly
Assembly with multiple
number of legs, example
The instructions provided on page 16
apply.
In addition, the following is to be
taken into consideration:
– The Frames MRK (2) must be consist-
ently installed in a "windmill" design.
– The assemblies are to be braced
diagonally using scaffold tubes with
a diameter of 48.3 (10) at about half
the tower height. (Fig. A3.06)
– All adjusting collars (1.4) are to be
turned until they touch the rubbing
plates (1.7).
– For crane suspension, scaffold tubes
(10.1) are to be mounted under the
frame tubes of the topmost frame.
(Fig. A3.07)
1.4 + 1.7
top
10.1
Fig. A3.07
MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
2
2
Fig. A3.06
10
bottom
21
