A1 MULTIPROP as an Individual Prop
Extension length
– Lift the prop so that the adjusting
collar runs downwards.
– If the prop is partially loaded up to
15 kN, it can be continuously
readjusted with the adjusting collar.
– Use a Wing Nut Spanner HD in order
to allow the prop to spindle unencum-
bered with loads > 60 kN.
– Occasionally grease the rubbing plate
for easier handling.
The pallets RP serve as a secure prop
support.
Preparation
Place MULTIPROP Prop with retracted
inner tube on a trestle / pallet
provided.
(Fig. A1.01)
Rough adjustment of the extension
length
1. Press safety hook. (1.3). The adjusting
collar (1.4) is disconnected.
(Fig. A1.01a)
2. Extend inner tube (1.2) over the
required prop length.
(Fig. A1.01a + A1.01b)
3. Adjust to the exact prop length by
means of the adjusting collar on
the integrated measuring tape (1.6)
(36 mm adjusting range per turn).
4. Push in the inner tube until the
adjusting collar lies against the
rubbing plate (1.7). (Fig. A1.02)
5. Lock the safety hook in place.
The prop has now been adjusted.
Is the safety hook locked in place?
Already pre-assemble Tilting Base MKF
and Tilting Forkhead MKK now.
10

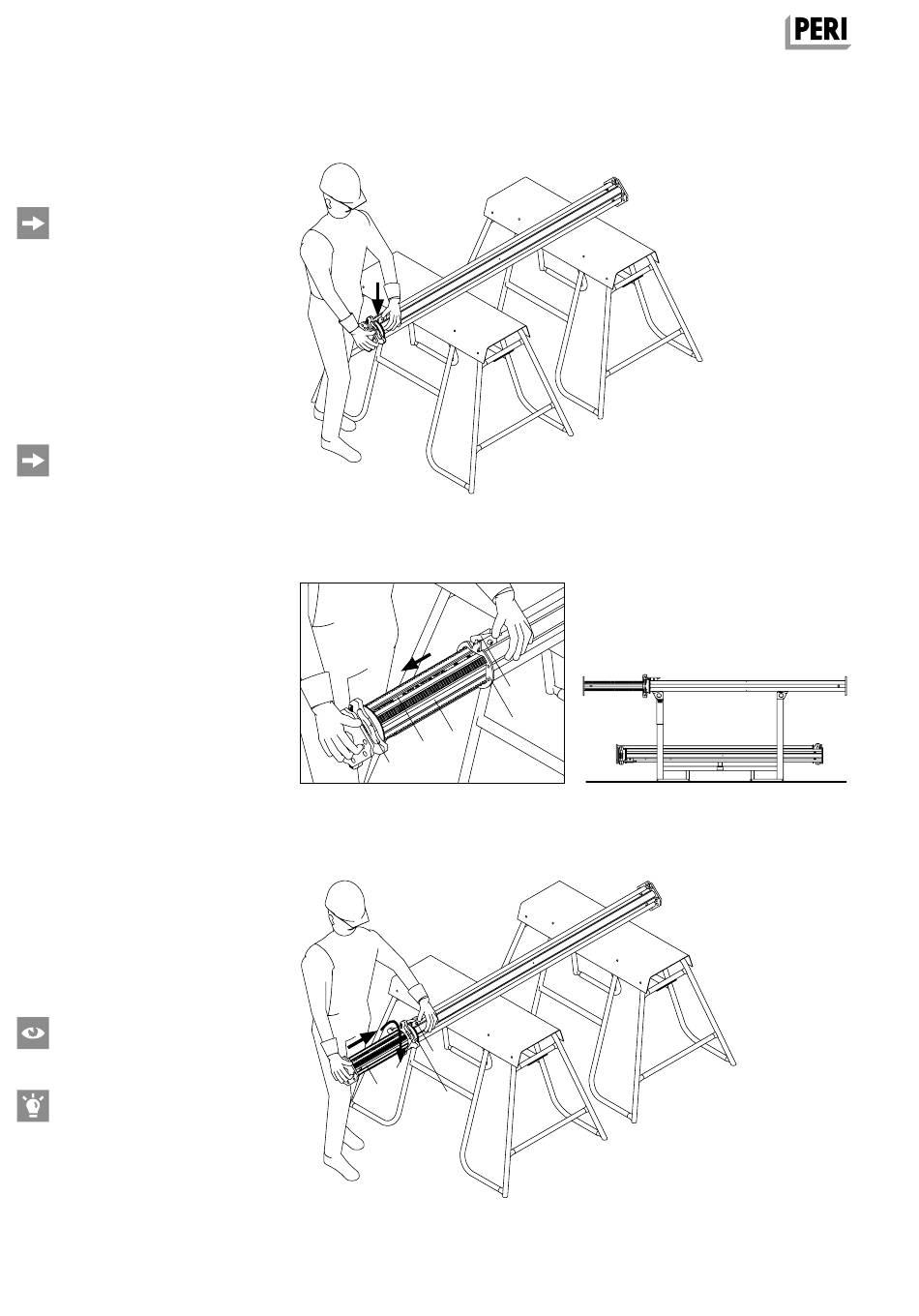

Fig. A1.01
1.2
1.6
1.4
Fig. A1.01a
1.3
1.4
1.2
1.7
Fig. A1.02
1.3
1.7
Fig. A1.01b
