A2 MULTIPROP System
Connecting the props
Extended props may only be used for
towers!
Brace with Frame MRK!
Check connections to ensure fittings
are tight!

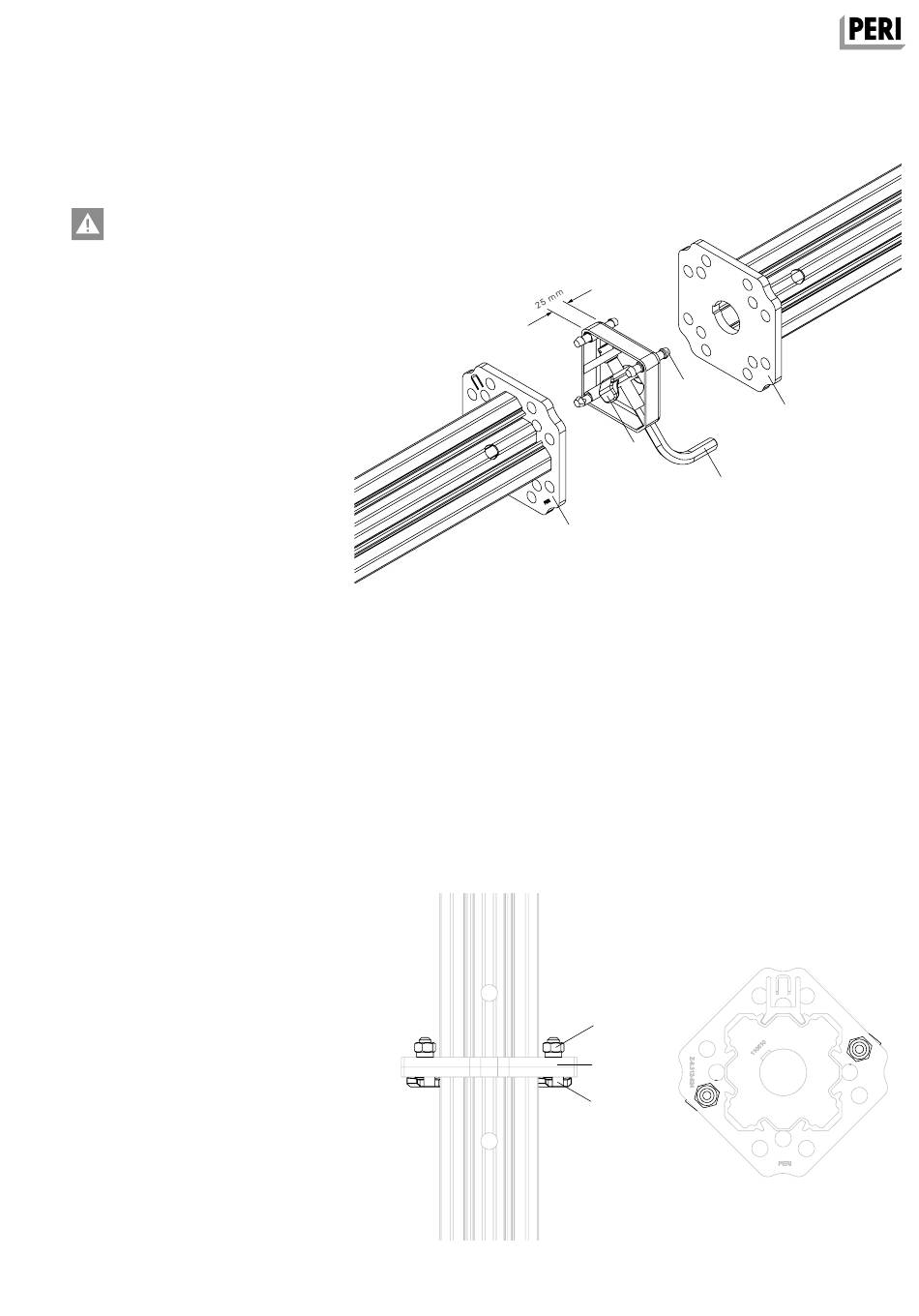

Connector MPV-2
The Connector MPV-2 (7) connects
two MULTIPROP Props with end plate
thicknesses of 10 mm.
Assembly
1. Insert centering pins (7 .3) into the
drilled holes of the prop base (1.8) or
head plate (1.9).
2. Insert second prop on the centering
pin of the Connector MPV.
3. Turn clamping lever (7 .1) to the right
and firmly tighten.
4. Engage clamping jaws (7 .2) in the
centre drilled hole of the prop.
(Fig. A2.01)
The props are connected.
The tower height can be adjusted by
means of the integrated measuring
tape. For each Connector MPV, an extra
2.5 cm must be added.
MULTIPROP Bolt with Nut
As an alternative to the Connector
MPV-2, the end plates of both props
can be connected using two diagonally-
arranged MULTIPROP Bolts with Nuts.
(Fig. A2.02 + A2.02a)
Assembly
1. From the bottom, insert the bolt (8.1)
throught the drilled hole.
2. Open nut (8.2) with the collar to the
head plate (1.9) and tighten, SW 19.
MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
Fig. A2.01
Fig. A2.02
7.3
7.2
7.1
1.9
8.2
1.9
8.1
Fig. A2.02a
1.8
