Step 2 Check Enable Radar, and then you can configure the parameters. See Table 6-11.
Parameter
Enable Radar
COM Port
COM SET
Radar Type
Speed Limit Config
Work Mode
Interval
ITARD-024
SA-I
Detect Mode The detection direction of radar.
Angle
Sensitivity
Trigger
Speed
Pre Speed
Wait

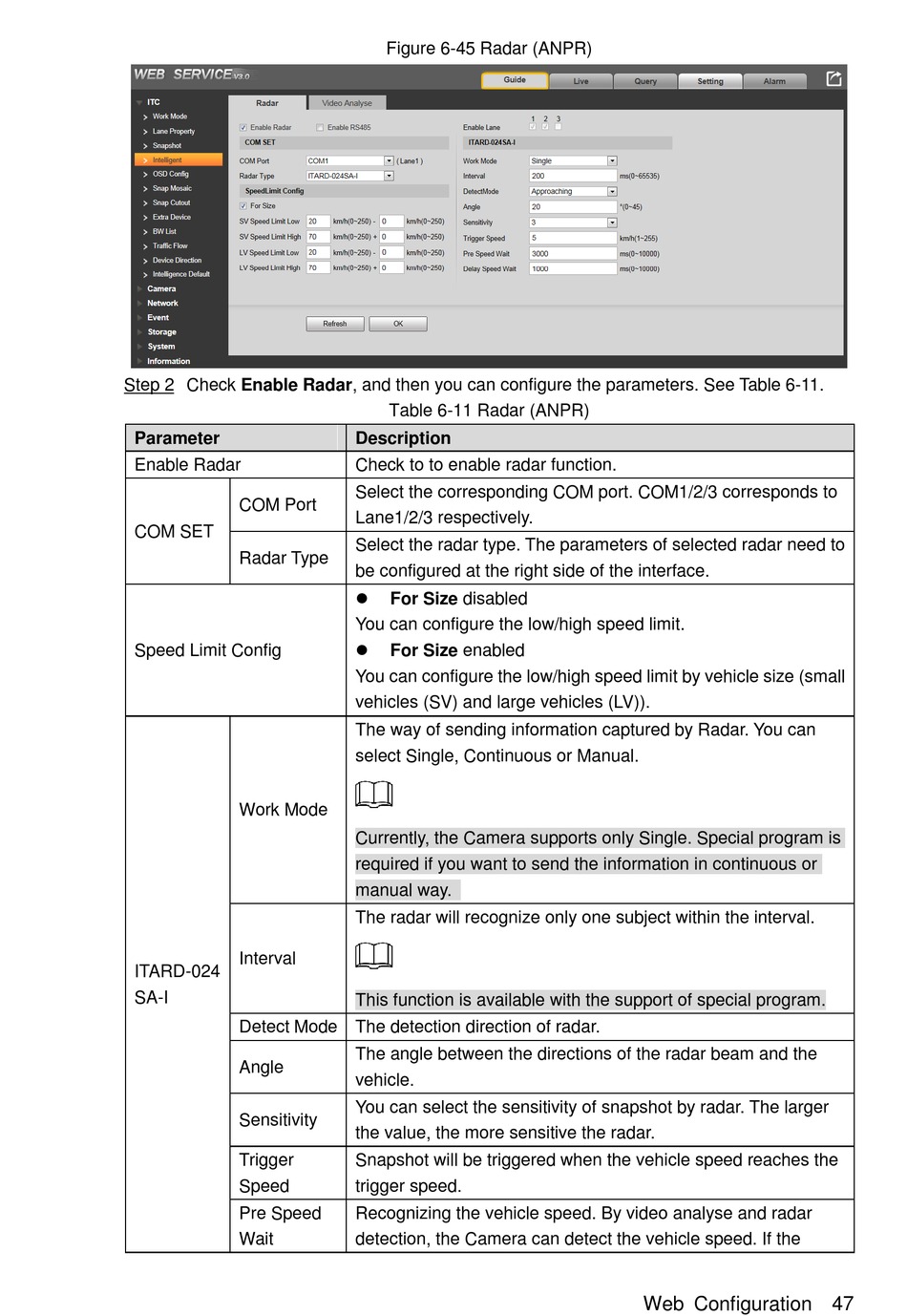

Figure 6-45 Radar (ANPR)
Table 6-11 Radar (ANPR)
Description
Check to to enable radar function.
Select the corresponding COM port. COM1/2/3 corresponds to
Lane1/2/3 respectively.
Select the radar type. The parameters of selected radar need to
be configured at the right side of the interface.

For Size disabled
You can configure the low/high speed limit.

For Size enabled
You can configure the low/high speed limit by vehicle size (small
vehicles (SV) and large vehicles (LV)).
The way of sending information captured by Radar. You can
select Single, Continuous or Manual.
Currently, the Camera supports only Single. Special program is
required if you want to send the information in continuous or
manual way.
The radar will recognize only one subject within the interval.
This function is available with the support of special program.
The angle between the directions of the radar beam and the
vehicle.
You can select the sensitivity of snapshot by radar. The larger
the value, the more sensitive the radar.
Snapshot will be triggered when the vehicle speed reaches the
trigger speed.
Recognizing the vehicle speed. By video analyse and radar
detection, the Camera can detect the vehicle speed. If the
Web Configuration 47
