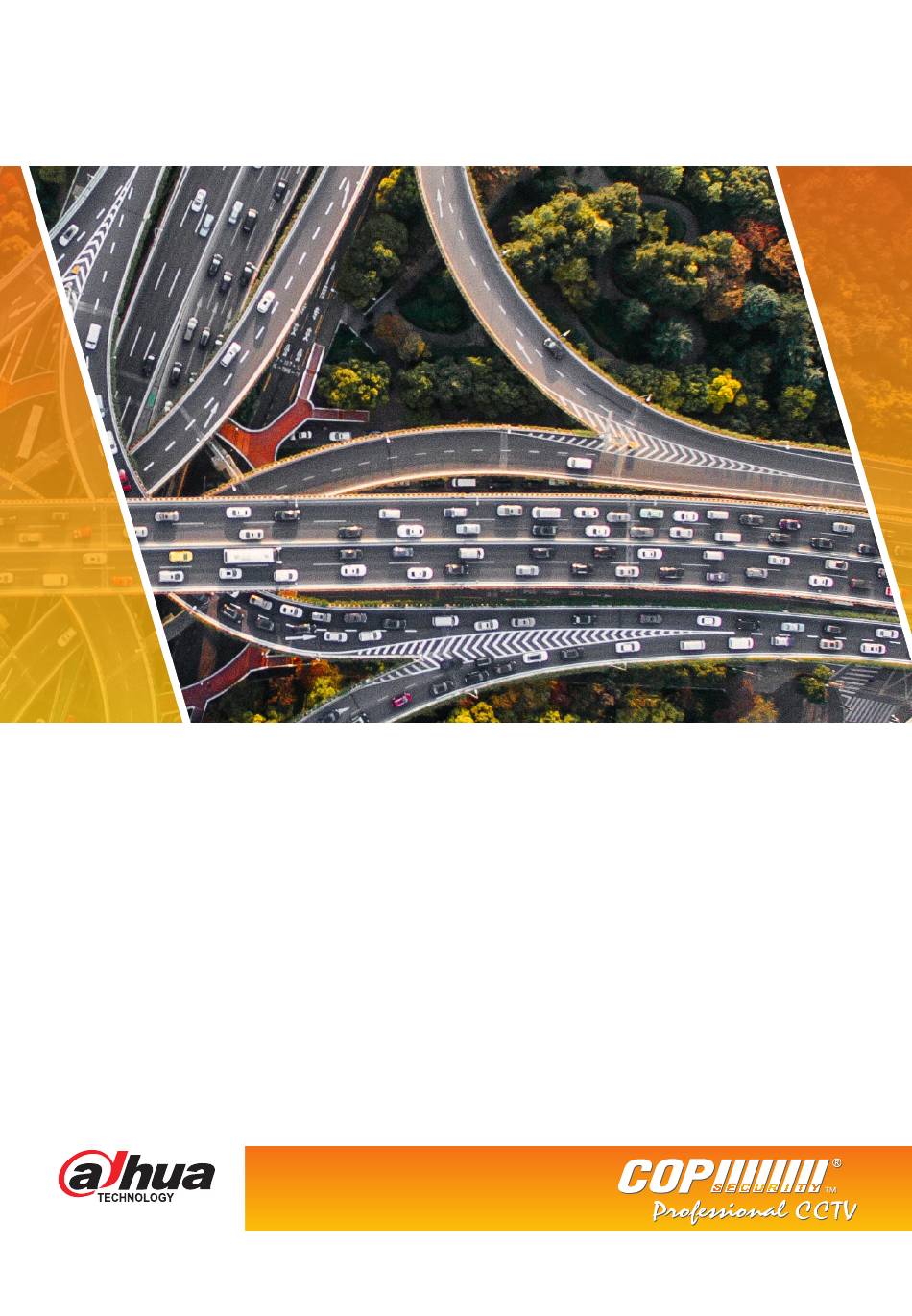

- Page 1 FEBRUARY 2017 ITC237-PU1A-IRHL Quick Install Guide Official UK distribution partner tel: +44 (0)1457 874 999 | fax: +44 (0)1457 829 201 | email: sales@cop-eu.com | web: www.cop-eu.com...
-
Page 2: Installation Overview
INSTALLATION OVERVIEW ANPR Setup When installing the ITC237-PU1A-IRHL it is important to consider both the mounting height and angle of the camera. If the camera is mounted too high or the horizontal/vertical angle too great, then the accuracy of the recognition software will be diminished. Listed below are the recommended mounting height and angles for reference. -
Page 3: Installation Scenarios
Installation Scenarios Example 1 - Standalone ANPR camera Camera connected to network, accessed for viewing on PC using camera IP address. Features available (with SD card installed) • Display plate snapshot • Building of white list • Live View • Alarm output The camera can capture and store number plate snapshot images on an SD card. -
Page 4: Installation
INSTALLATION When configuring the ANPR camera for use with an NVR or as a standalone system, all devices should first be connected together. The ITC237-PU1A-IRHL supports POE (802.3at) or can be powered by 12v DC Housing Connections LED_DRI 12V GND HEATER Used when not utilizing the PoE capability, connect the 12v positive to this terminal This is the terminal used for the negative connection when using 12v power... - Page 5 CONFIGURATION Once the camera has been mounted and all connections terminated, use a PC or Laptop connected to the same network switch as the ANPR to login to the web browser interface. By default the IP address of the camera is 192.168.1.108, if required this can be changed via the Config Tool or within the camera web browser.
- Page 6 CONFIGURATION Select the Detect Line button and then Redraw, use the left mouse button to draw the detect line. The detect line is used to set the trigger point for recognition. Set Local Plate to the desired group, EU is the recommended setting. Select Save to store the settings.
- Page 7 Go to Setup > Storage > Destination Select the Format button to format the SD Card, once complete the SD Card is ready for use. Return to the Live tab and select the Receive Pictures tickbox. When vehicles pass through the detect zone, the snapshot and number plate information should be displayed. The snapshot can be quickly downloaded by double clicking the event entry in the event list.
- Page 8 WHITELIST SETUP To configure a whitelist to trigger the camera alarm output when a pre-configured number plate is detected follow the steps below. Go to Setup > ITC > BW List Select the Enable tickbox Select the Start Match tickbox Select the White List Search tab Click add to input a number plate into the whitelist database Plate Number...
- Page 9 Select the Link Sign Out tab, this option sets when the alarm output will trigger and also the time the alarm output triggers for. Select the Enable tickbox to enable the alarm output There are three operating modes: Traffic Trust List Trigger the alarm output based on white list All Snap Car Trigger the alarm output for all vehicles...
- Page 12 Cop Security | Delph New Road, Dobcross, Oldham OL3 5BG...
