Networking TX3 Panels

Mircom devices such as the Emergency Phone, lobby control unit, the card
access unit, and the Touch Screen can be networked with the TX3 system through
a peer-to-peer RS-485 network, an Ethernet TCP/IP network, or a combination of
Ethernet and RS-485 networks.
The TX3 Configurator software can connect to any of these network
configurations. How you connect to the network (that is, through TCP/IP, USB,
a modem, or the COM port) determines what devices you can configure on the
network using the TX3 Configurator. The different network configurations are
explained in the rest of this section.
Figure 29 shows a configuration with TX3 controllers connected on an RS-485
network. Each controller has to have a unique network address on the RS-485
network. Up to 63 unique network addresses can be assigned. If you connect to
any device on the RS-485 network (using USB, a modem, or the COM port), you
can also connect to and configure any other device on the RS-485 network using
the TX3 Configurator.
Lobby Control Unit
1
4
GHI
7
PQRS
*

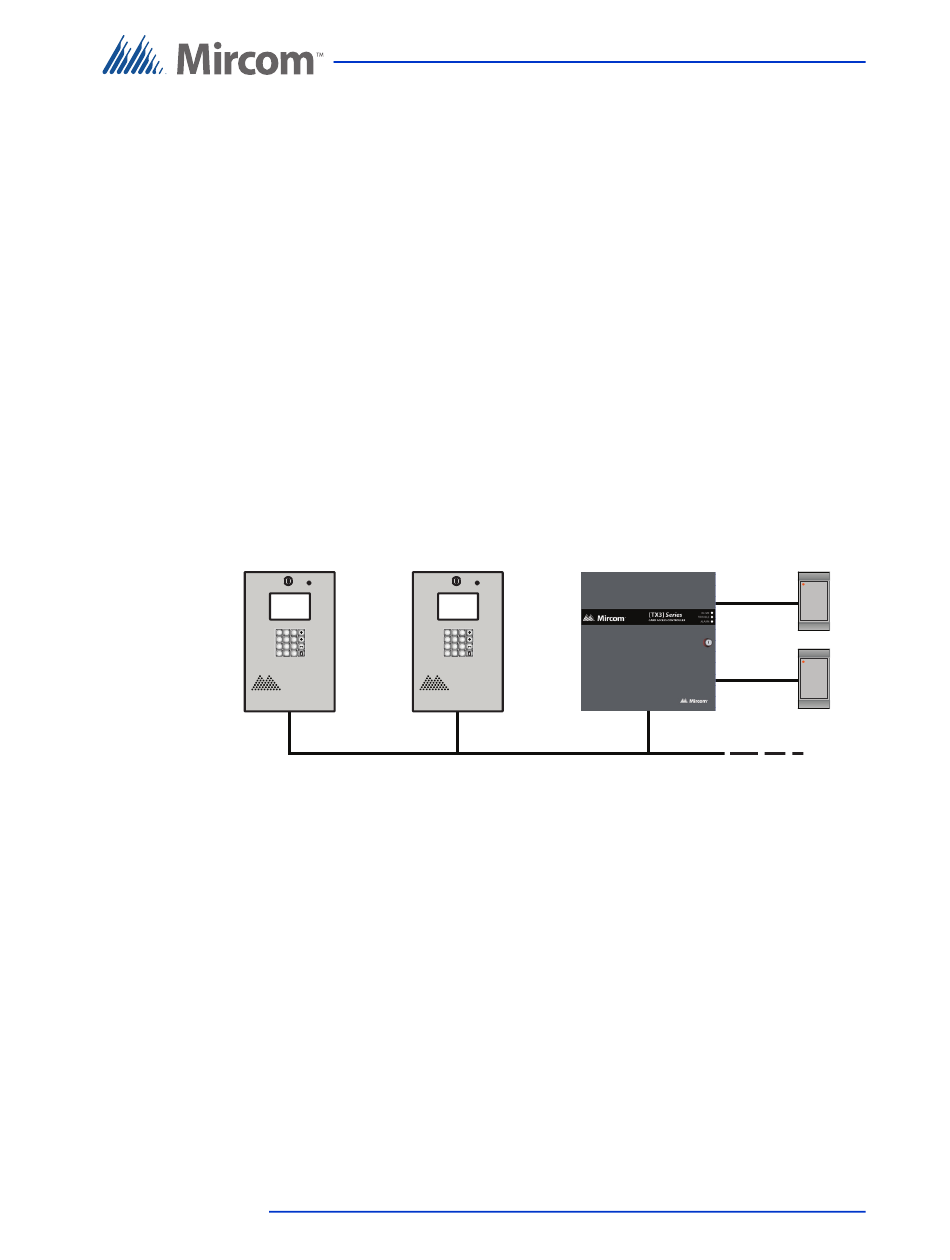

Figure 29. TX3 devices on an RS-485 network.
Figure 30 shows a configuration with TX3 devices connected to an Ethernet
TCP/IP network. This configuration removes the 63 device limitation that you
have on an RS-485 network. The devices connected to an Ethernet TCP/IP
network are called Master Nodes. If you connect to the TCP/IP network with the
TX3 Configurator, you can connect to and configure any of the Master Nodes on
TX3 Emergency Phone Installation and Operation Manual
Version 2
LT-6113 Copyright 2017
Lobby Control Unit
2 3 1 2 3
ABC DEF ABC DEF
4
5 6 5 6
JKL MNO GHI JKL MNO
8 7 8
9 9
TUV WXYZ PQRS TUV WXYZ
0 # * 0 #
RS-485 Network
Card Access Controller
TX3 System
