2.9
Connect the Optional Strobe
See Chapter 4 on page 40 for information on how the strobe is programmed.
1.
2.
3.
TS3
Red
Black

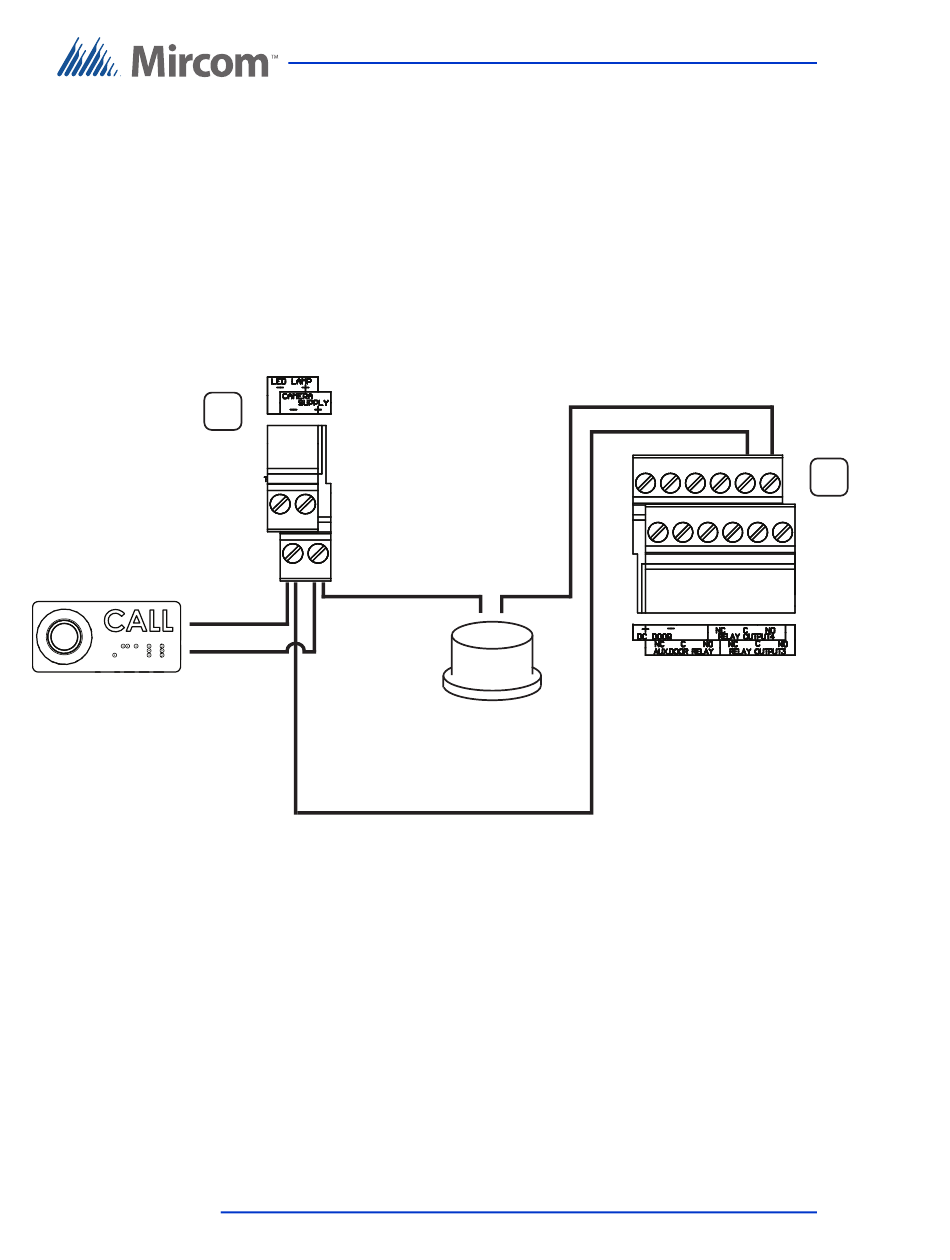

Figure 11.
TX3 Emergency Phone Installation and Operation Manual
26
LT-6113
Copyright 2017
Connect the strobe's + wire to the + terminal of the Camera Supply.
Connect the strobe's - wire to the NO terminal of Output 4 at the top of the
board.
Connect the C terminal of Output 4 to the - terminal of the Camera Supply
with 22 AWG wire.
Connecting the optional strobe
-
+
Strobe
Installation
TS9
Version 2
