2.3 Mounting the Emergency Phone with the optional
trim ring
1.
2.
3.
4 1/2"
(114 mm)

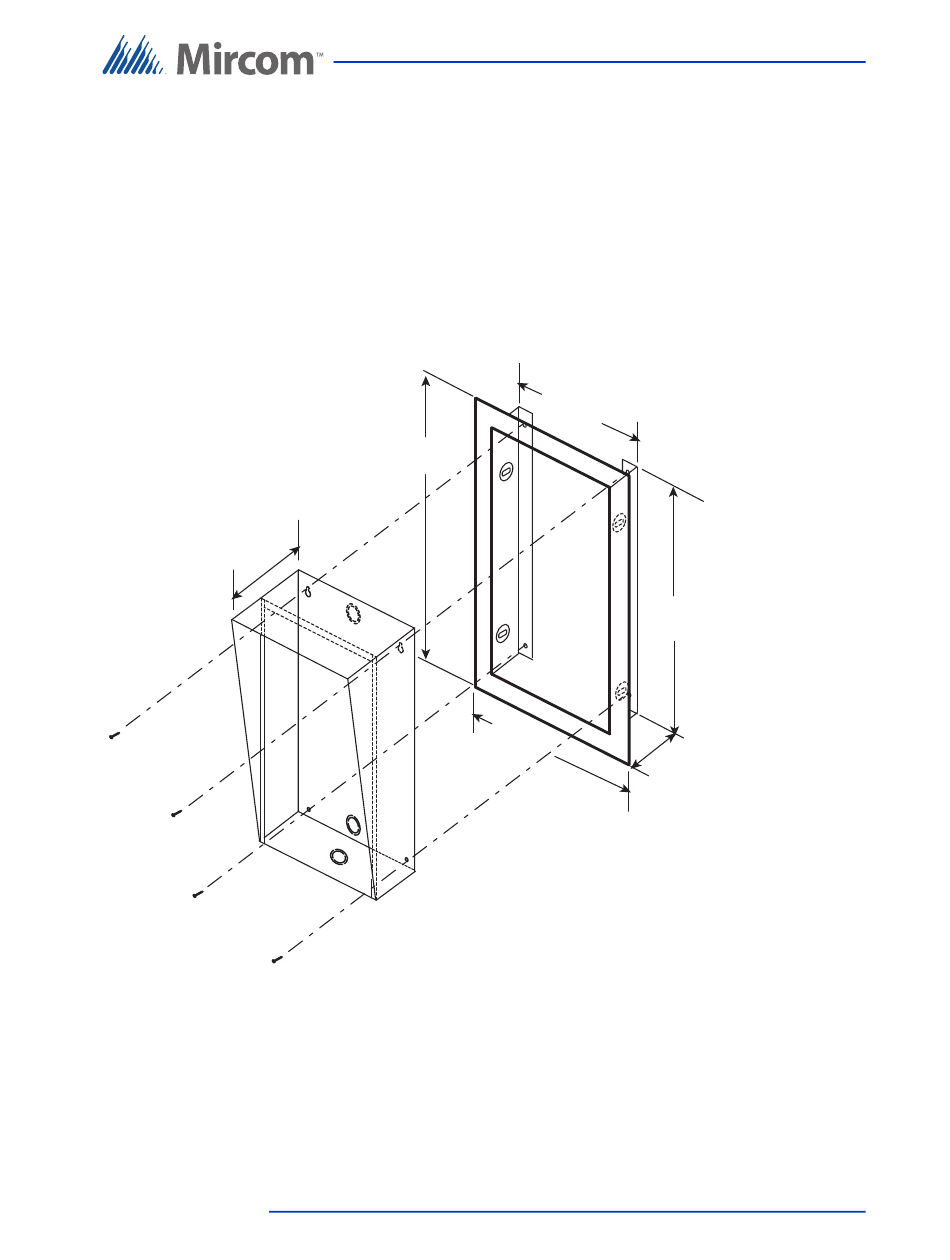

Figure 3.
TX3 Emergency Phone Installation and Operation Manual
Version 2
LT-6113 Copyright 2017
Mount the semi-flush trim into the wall cut out, attach to the wall stud, left
or right using the two slot holes on the side of the semi-flush trim ring.
Place the Emergency Phone inside the trim ring.
Secure the entry panel enclosure and the semi-flush trim using the four
screws provided.
19 5/8"
(498 mm)
8 55/64"
(225 mm)
TX3 Emergency Phone
Mounting the Emergency Phone with the trim ring
6 13/32"
(163 mm)
16 45/64"
(424 mm)
2 3/4"
(70 mm)
TX3-EMER-FTB trim ring
Installation
