2.14

Installing the Optional Guard Phone Module

The TX3-GPM Guard Phone Module mounts above the Emergency Phone main
board on the top left hand side. See Figure 4 on page 17.
The module has two connectors, an RJ-11 connector and a ribbon cable as shown
in Figure 16.
The TX3-GPM ribbon cable connects to the P7 connector on the Emergency
Phone main board. The guard phone uses a telephone cable to connect to the RJ-
11 connector.

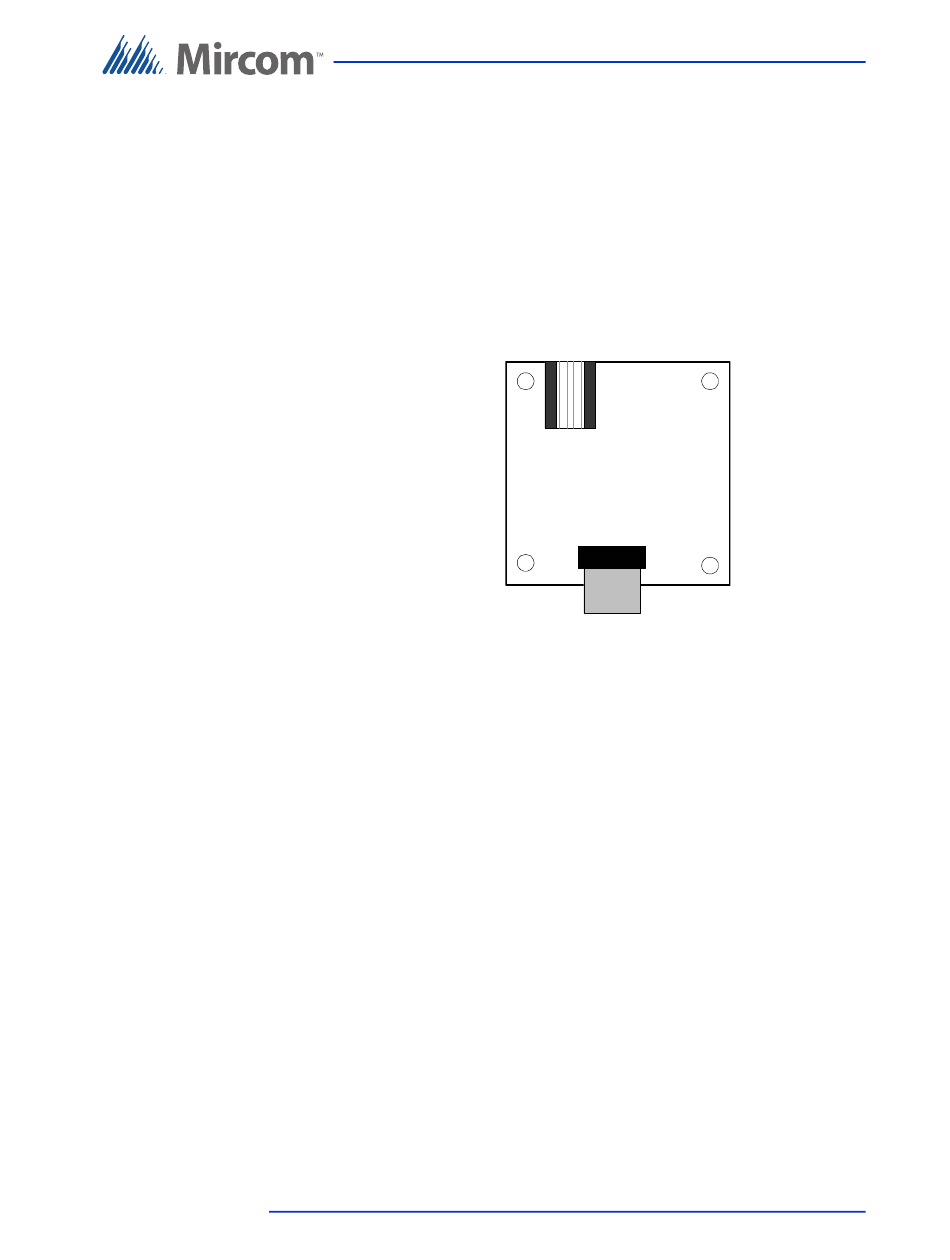

Figure 16. Guard Phone Module
For a description on how to install the modem board see LT-972 Guard Phone
Manual Installation Instructions.
2.15

Using the Guard Phone

The Guard phone is an auxiliary phone that plugs into the RJ-11 connector on the
Guard Phone Module on the Emergency Phone. This phone provides most of the
same features as a normal telephone and lets you do the following:
•
•
•
To call the Emergency Phone
1.
2.
TX3 Emergency Phone Installation and Operation Manual
Version 2
LT-6113 Copyright 2017
Place calls to the Emergency Phone.
Receive calls from the Emergency Phone.
Place calls to residents.
Pick up the guard phone, wait for the dial tone and dial *9997. The guard
phone connects to the Emergency Phone.
Press the # key on the guard phone. The main door unlocks.
RJ-11
Connector
GPM Ribbon Cable
Installation
31
