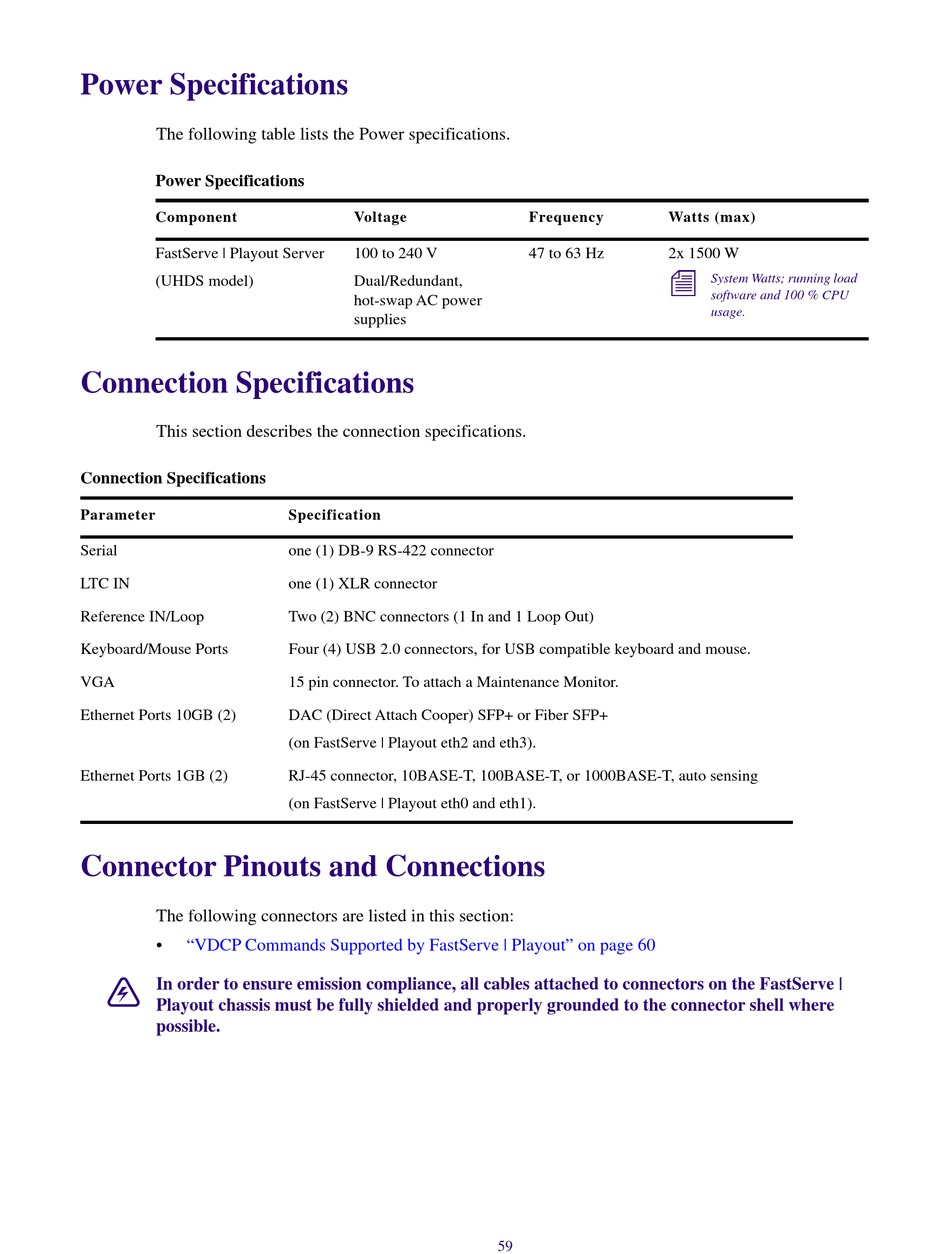

Power Specifications

The following table lists the Power specifications.
Power Specifications
Component
FastServe | Playout Server
(UHDS model)

Connection Specifications

This section describes the connection specifications.
Connection Specifications
Parameter
Serial
LTC IN
Reference IN/Loop
Keyboard/Mouse Ports
VGA
Ethernet Ports 10GB (2)
Ethernet Ports 1GB (2)

Connector Pinouts and Connections

The following connectors are listed in this section:
• "VDCP Commands Supported by FastServe | Playout" on page 60
w
In order to ensure emission compliance, all cables attached to connectors on the FastServe |
Playout chassis must be fully shielded and properly grounded to the connector shell where
possible.
Voltage
100 to 240 V
Dual/Redundant,
hot-swap AC power
supplies
Specification
one (1) DB-9 RS-422 connector
one (1) XLR connector
Two (2) BNC connectors (1 In and 1 Loop Out)
Four (4) USB 2.0 connectors, for USB compatible keyboard and mouse.
15 pin connector. To attach a Maintenance Monitor.
DAC (Direct Attach Cooper) SFP+ or Fiber SFP+
(on FastServe | Playout eth2 and eth3).
RJ-45 connector, 10BASE-T, 100BASE-T, or 1000BASE-T, auto sensing
(on FastServe | Playout eth0 and eth1).
Frequency Watts (max)
47 to 63 Hz 2x 1500 W
n
59
System Watts; running load
software and 100 % CPU
usage.
