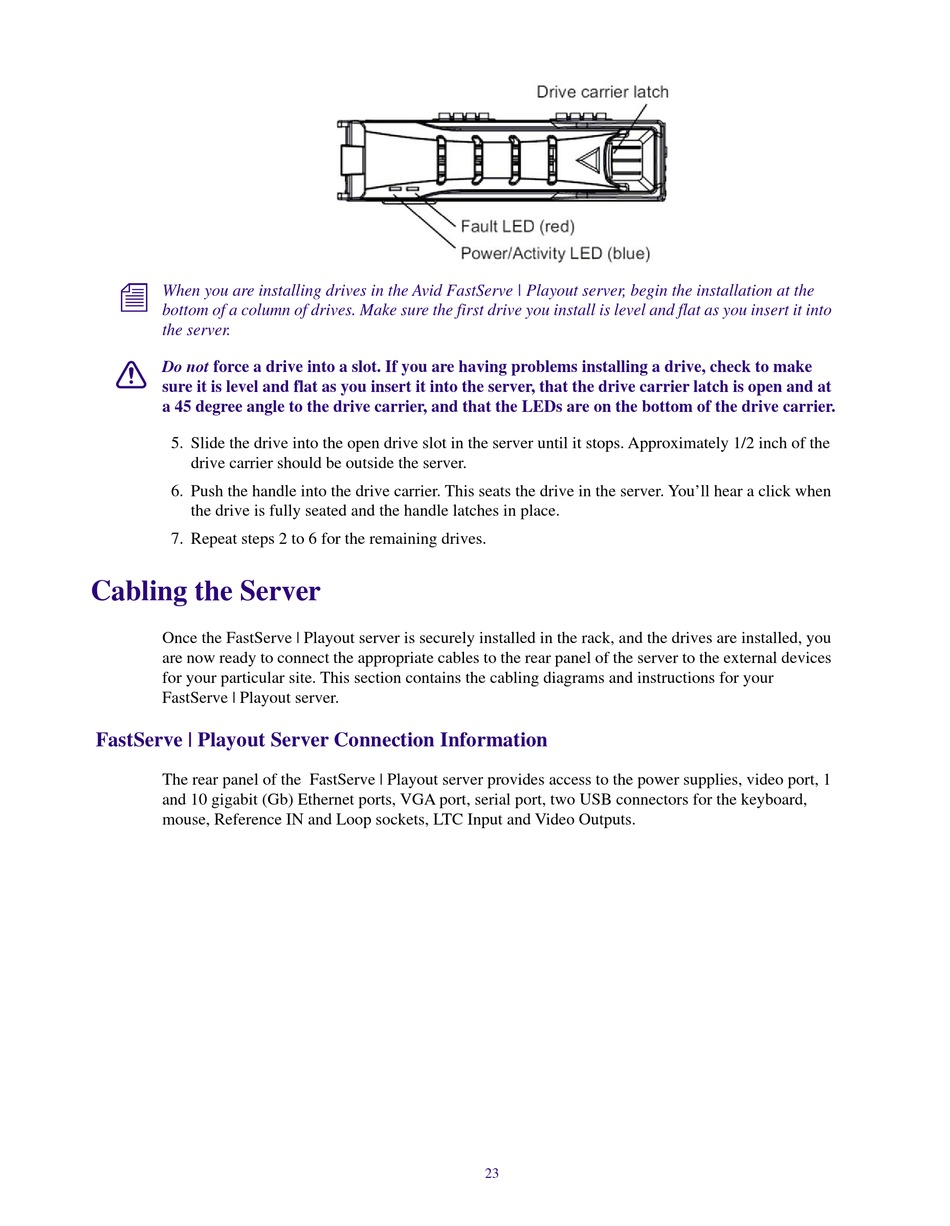

When you are installing drives in the Avid FastServe | Playout server, begin the installation at the
bottom of a column of drives. Make sure the first drive you install is level and flat as you insert it into
the server.
c
Do not force a drive into a slot. If you are having problems installing a drive, check to make
sure it is level and flat as you insert it into the server, that the drive carrier latch is open and at
a 45 degree angle to the drive carrier, and that the LEDs are on the bottom of the drive carrier.
5. Slide the drive into the open drive slot in the server until it stops. Approximately 1/2 inch of the
drive carrier should be outside the server.
6. Push the handle into the drive carrier. This seats the drive in the server. You'll hear a click when
the drive is fully seated and the handle latches in place.
7. Repeat steps 2 to 6 for the remaining drives.

Cabling the Server

Once the FastServe | Playout server is securely installed in the rack, and the drives are installed, you
are now ready to connect the appropriate cables to the rear panel of the server to the external devices
for your particular site. This section contains the cabling diagrams and instructions for your
FastServe | Playout server.

FastServe | Playout Server Connection Information

The rear panel of the FastServe | Playout server provides access to the power supplies, video port, 1
and 10 gigabit (Gb) Ethernet ports, VGA port, serial port, two USB connectors for the keyboard,
mouse, Reference IN and Loop sockets, LTC Input and Video Outputs.
