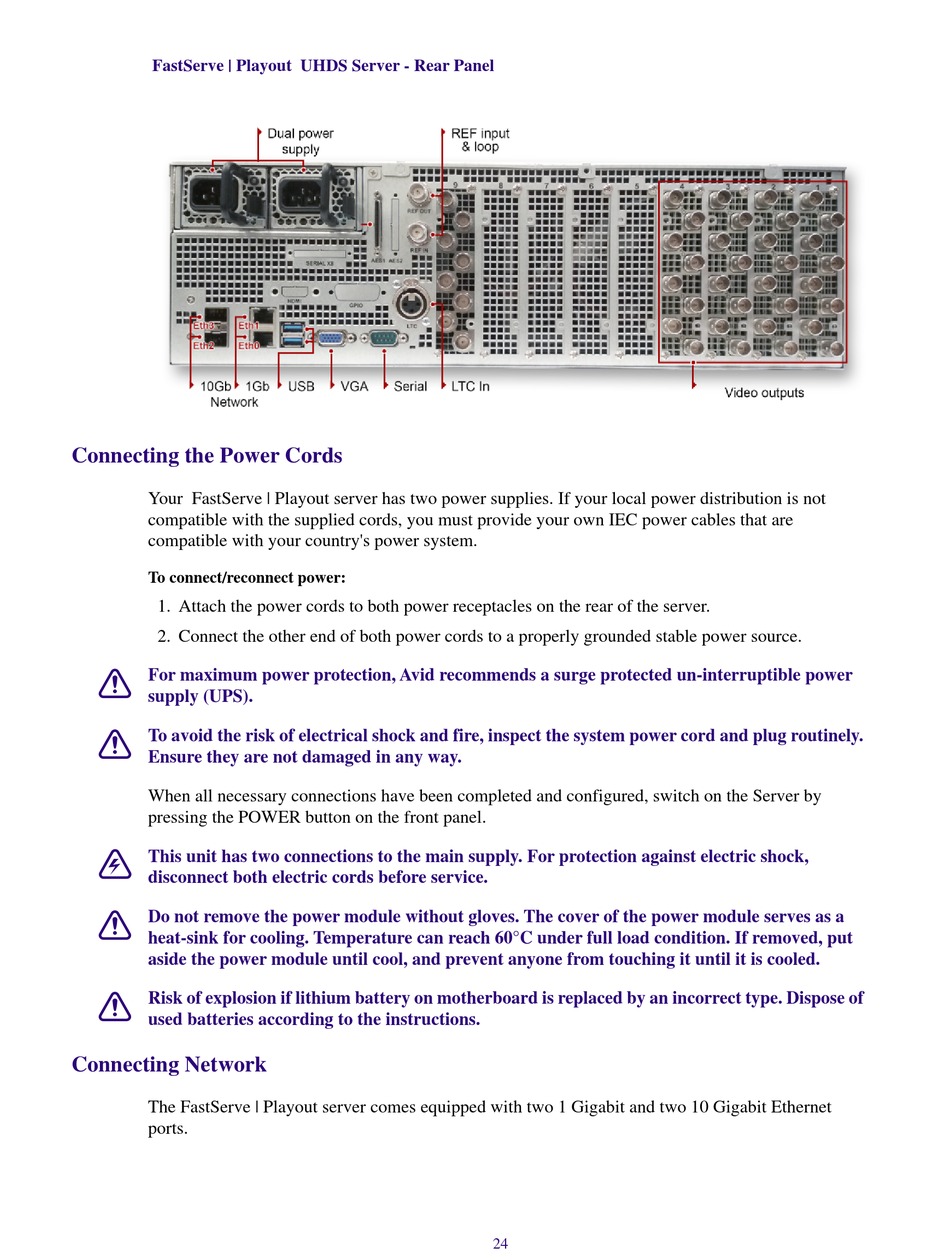

FastServe | Playout UHDS Server - Rear Panel

Connecting the Power Cords

Your FastServe | Playout server has two power supplies. If your local power distribution is not
compatible with the supplied cords, you must provide your own IEC power cables that are
compatible with your country's power system.
To connect/reconnect power:
1. Attach the power cords to both power receptacles on the rear of the server.
2. Connect the other end of both power cords to a properly grounded stable power source.
c
For maximum power protection, Avid recommends a surge protected un-interruptible power
supply (UPS).
c
To avoid the risk of electrical shock and fire, inspect the system power cord and plug routinely.
Ensure they are not damaged in any way.
When all necessary connections have been completed and configured, switch on the Server by
pressing the POWER button on the front panel.
w
This unit has two connections to the main supply. For protection against electric shock,
disconnect both electric cords before service.
c
Do not remove the power module without gloves. The cover of the power module serves as a
heat-sink for cooling. Temperature can reach 60°C under full load condition. If removed, put
aside the power module until cool, and prevent anyone from touching it until it is cooled.
c
Risk of explosion if lithium battery on motherboard is replaced by an incorrect type. Dispose of
used batteries according to the instructions.

Connecting Network

The FastServe | Playout server comes equipped with two 1 Gigabit and two 10 Gigabit Ethernet
ports.
