Front of the Server
Regarding media drives, each media drive has a blue and red LED on the bottom front of the drive.
The left LED (blue) is lit when a drive has power and flashes when the drive is in use. The right LED
(red) is lit when an error is detected with the drive and the drive needs to be replaced. Details on the
media drive LED indicators are in the following table.
Media Drive Example
• The left Power/Activity LED (blue) is solid when a drive has power and flashes when the drive
is in use.
• The right Fault LED (red) is lit when an error is detected, or if the drive is rebuilding or
initializing. It flashes fast when it is initializing or rebuilding an array. It flashes slow when there
is a suspected problem with the drive.

Server Front Panel and LED Control Panel

The server has one Power button on the top right part of the server. The front panel also contains
activity LEDs, storage error LED, and two USB sockets.

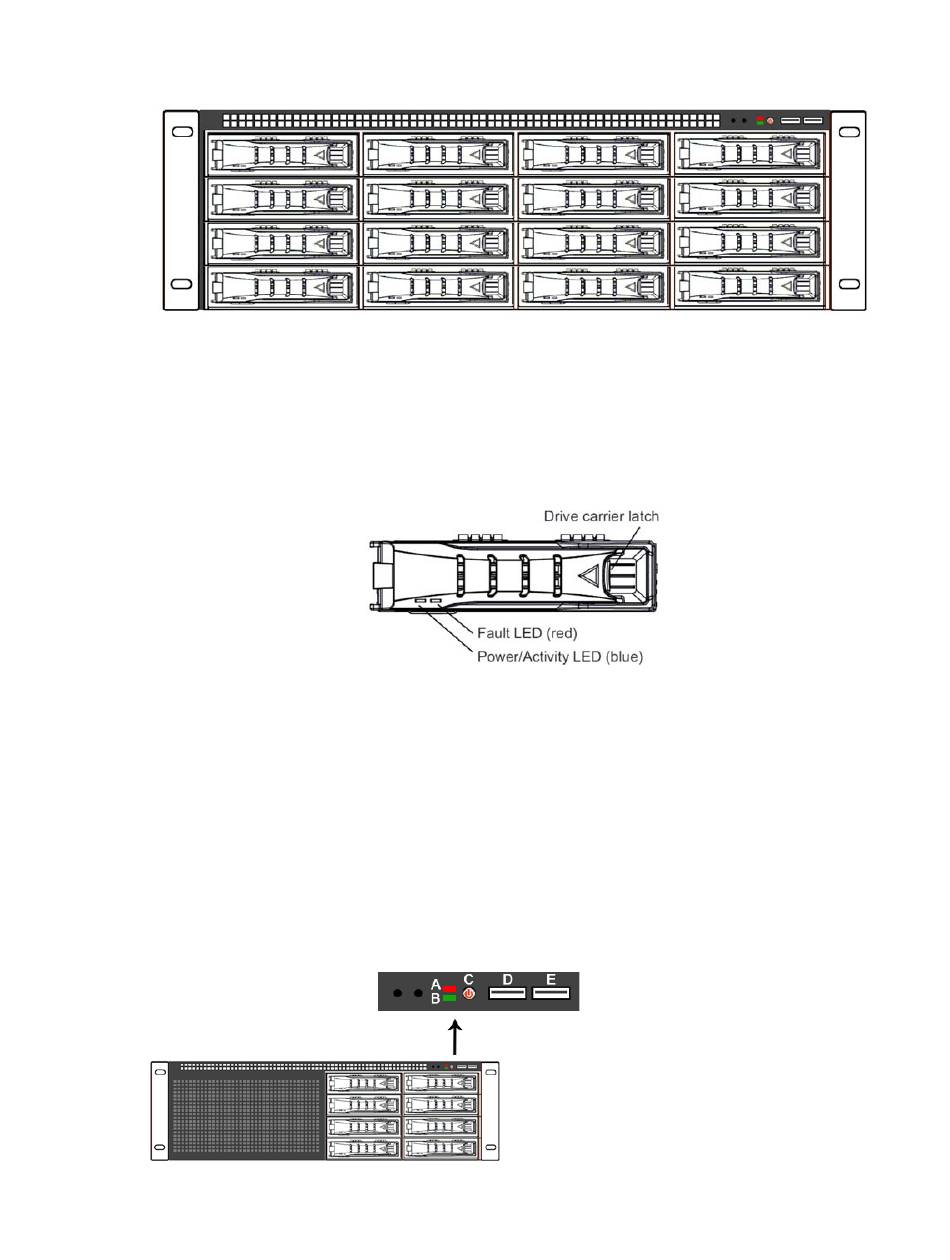

Server Front View and LED Control Panels
