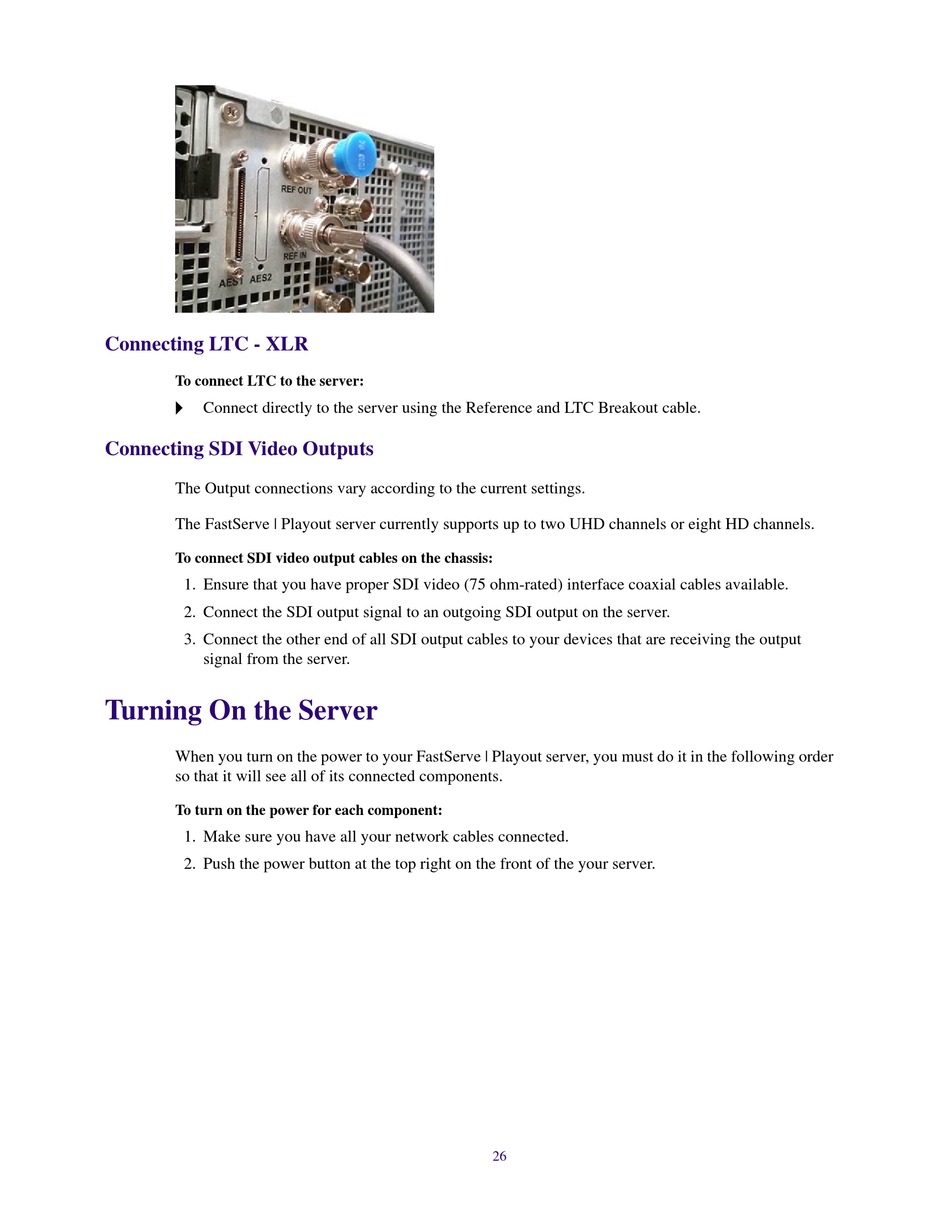

Connecting LTC - XLR

To connect LTC to the server:
t
Connect directly to the server using the Reference and LTC Breakout cable.

Connecting SDI Video Outputs

The Output connections vary according to the current settings.
The FastServe | Playout server currently supports up to two UHD channels or eight HD channels.
To connect SDI video output cables on the chassis:
1. Ensure that you have proper SDI video (75 ohm-rated) interface coaxial cables available.
2. Connect the SDI output signal to an outgoing SDI output on the server.
3. Connect the other end of all SDI output cables to your devices that are receiving the output
signal from the server.

Turning On the Server

When you turn on the power to your FastServe | Playout server, you must do it in the following order
so that it will see all of its connected components.
To turn on the power for each component:
1. Make sure you have all your network cables connected.
2. Push the power button at the top right on the front of the your server.
