Point-To-Point
Configuration
Ground Fault
Considerations
The following paragraphs highlight ground fault detection considerations
for point-to-point and bus wire configurations. In the examples that follow,
the MIB-WF may be used in place of the MIB-W.
In a point-to-point segment without repeaters, enable ground fault
detection in only one of the two nodes powered by an MPS-24A to
monitor the FN segment between the two nodes. In Figure 12, the left node
is an IFC panel and will therefore provide ground fault detection for the
FN segment between the two nodes. On the MIB node to the left, SW2 is
set to the On position to enable ground fault feedthrough detection on
MIB-W Port B. The corresponding Port A switch, SW1, of the right
MIB-W is set to the Off position, disabling ground fault detection
feedthrough from the node on the right. The node on the right can be any
network node, including another IFC panel, Fire OWS, Fire-Net NCM, or
remotely powered INA.
With the switches set in this manner, the ground fault detection feature of
the power supply located in the node to the left is monitoring the
FN segment between the two nodes.
A
Ports
SW2
Ground Fault
Detection
Enabled
MIB-W
IFC Node

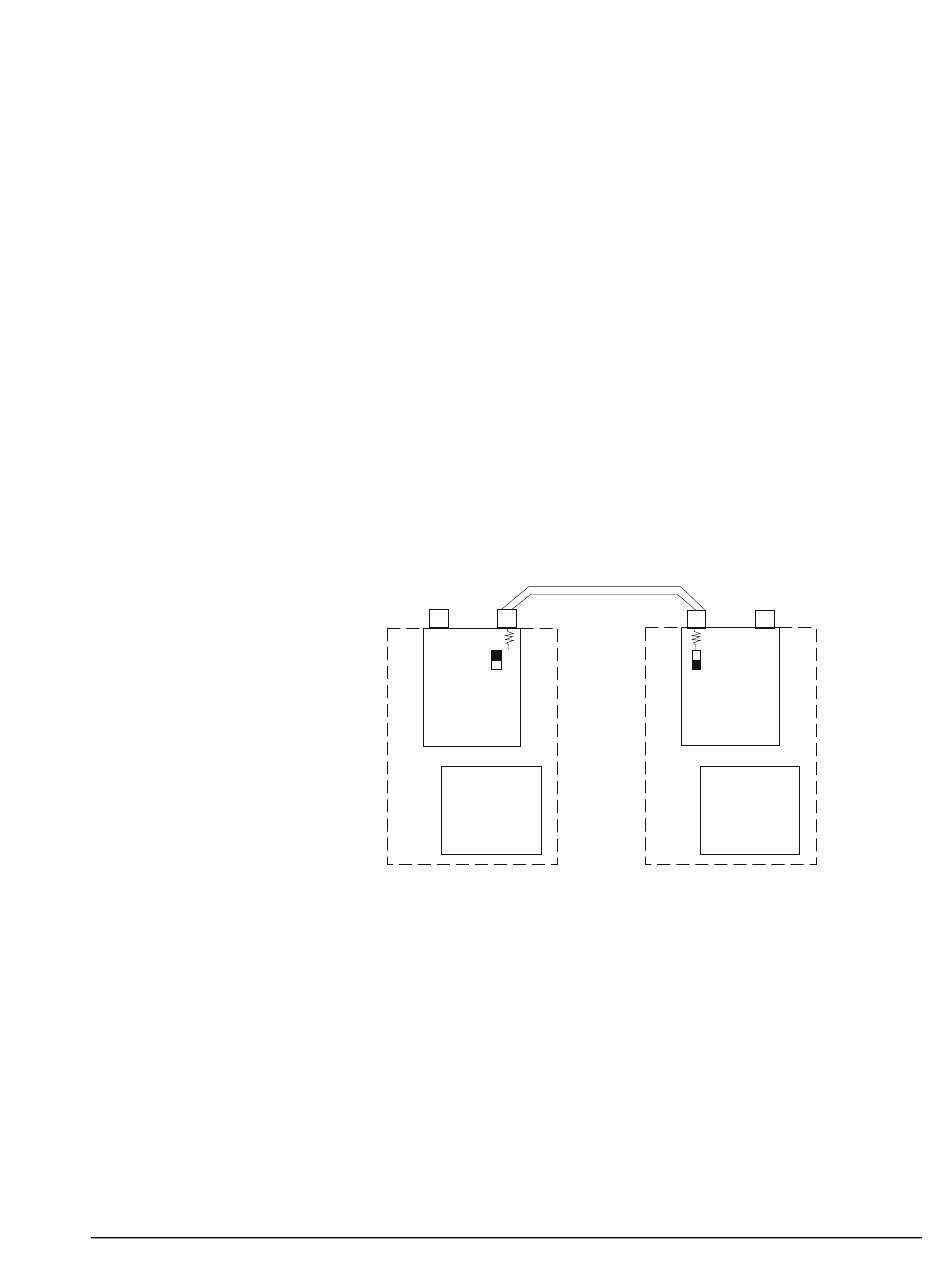

Figure 12: Point-To-Point Ground Fault Detection
