MIB-WF

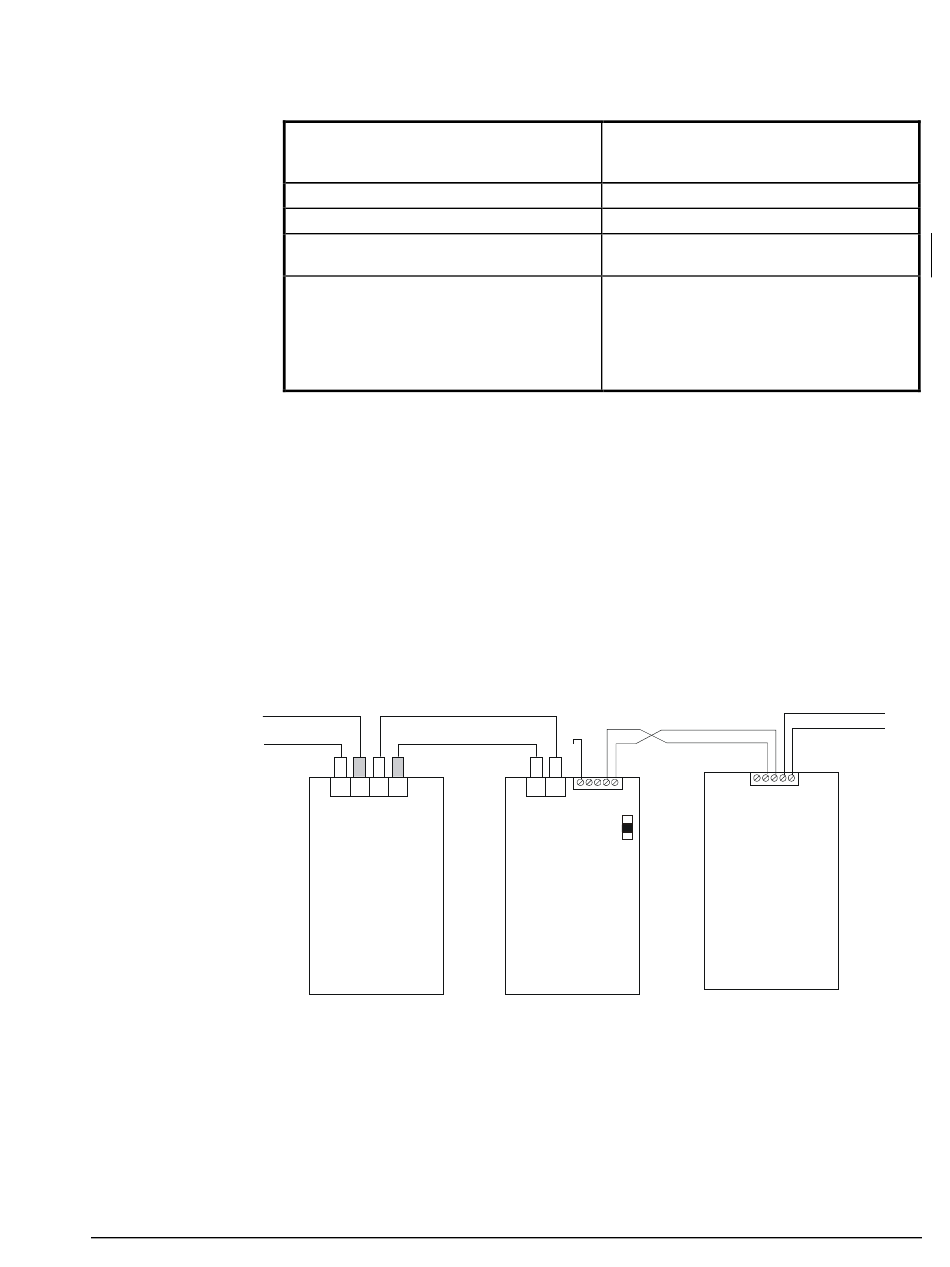

Table 11: MIB-WF (Wire and Fiber) Specifications
Medium Supported
Transmission Rate
Wiring Style
LEDs
Connects to Devices
Note: Internode isolation; fiber optic cable electrically isolates nodes from each other.
Interconnecting the MIB-WF
The MIB-WF can be used as an interface between wire and fiber when
connecting the MIB-F to the MIB-W as shown in Figure 7.
Note: Wiring from the MIB-WF that is situated outside the building:
• cannot exceed 100 m (3,000 ft)
• must be underground and in conduit
• cannot cross any power lines
To Next
Node/Repeater
10 dB Maximum Attentuation
TXB RXB TXA RXA
MIB-F
Note: If the SW1 switch is in the On position, ground fault detection is
enabled. If the SW1 switch is in the Off position, the MIB-WF will
not have ground fault detection enabled.
Fiber Optic Cable
TXB RXB
5 4 3 2 1
SW 1
MIB-WF
Figure 7: MIB-WF
IFC Networking—Metasys Intelligent Fire Network
One Twisted Pair Wire Medium Port One
Fiber Optic Cable Medium Port Permits
Hybrid (Mixed Media) Networks
312.5K Baud
NFPA Style 4 (Class B)
Indicates network activity on the port.
See Table 15 and Figure27.
MIB-F
MIB-W
RPT-F
RPT-WF
RPT-W
Another MIB-WF
Twisted Pair Wire
5 4 3 2 1
MIB-W
To Next
Node/Repeater
mib5
