4.1.

Grounding

The amplifier has to be grounded properly! Connect the screw on the rear panel of the
amplifier to your local grounding system with a copper cable; use a cross-section of 4
2
mm at least.
Connect your transceiver to the same grounding system of your shack carefully! Use minimum length
cables and make certain that the connections are both physically and electrically sound. With poor
grounding, you may risk damaging your equipment, have problems with TVI/BCI or possible distortion
of your transmitted signal.
4.2.

Coaxial Cable

The output of the transceiver is to be connected to the input of the amplifier via RG58 or similar 50
Ohm cable. For the connection between the power amplifier and the antenna, RG213 or similar coaxial
cable suited for high power is recommended. SO-239 sockets with Teflon insulation are used for the
HF INPUT and OUTPUT connectors.

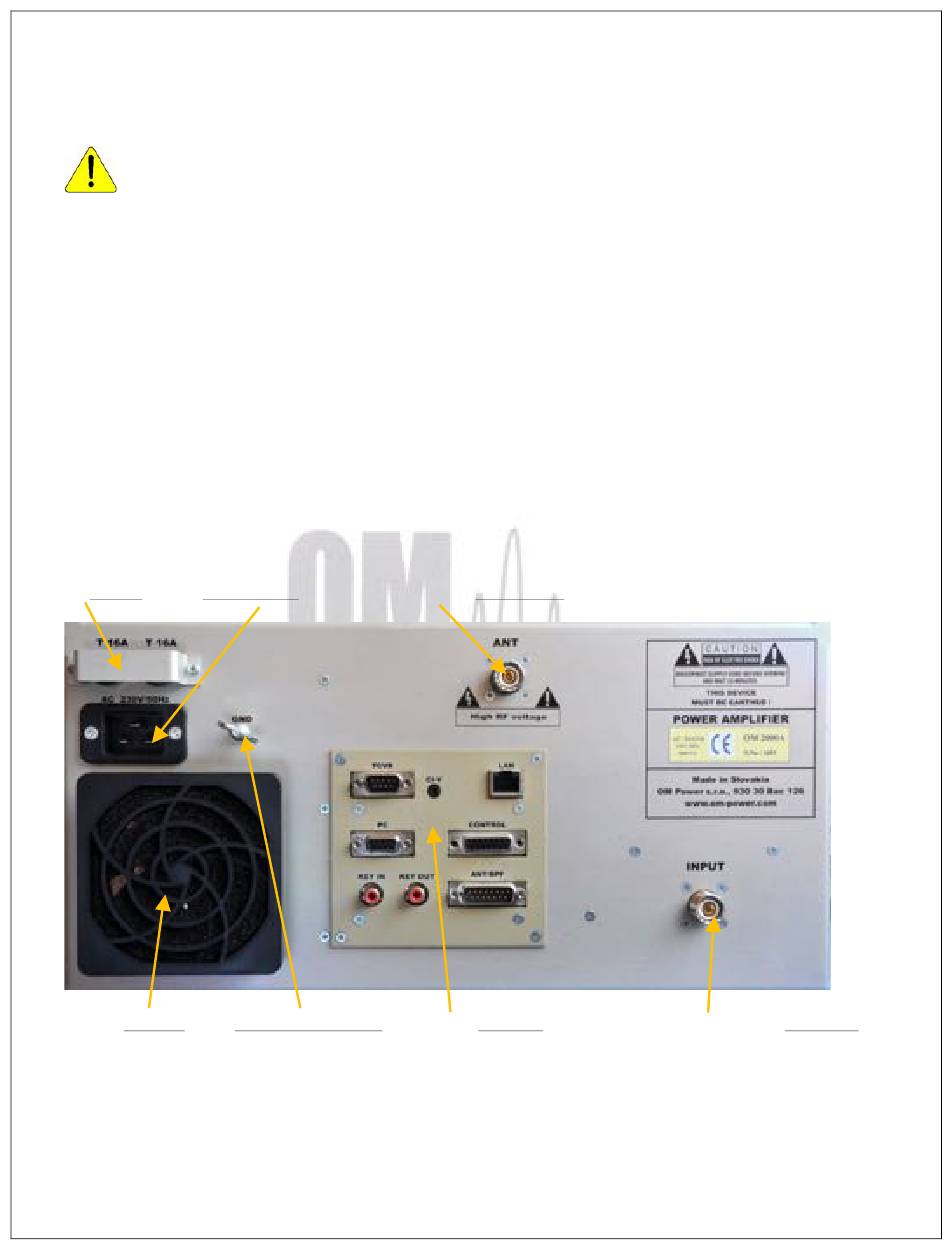

Rier view of the amplifier OM2000A+
Fuses Mains Plug
Blower Grounding point
HF Output
Control HF Input
