8.3.4. Earth Spike Installation

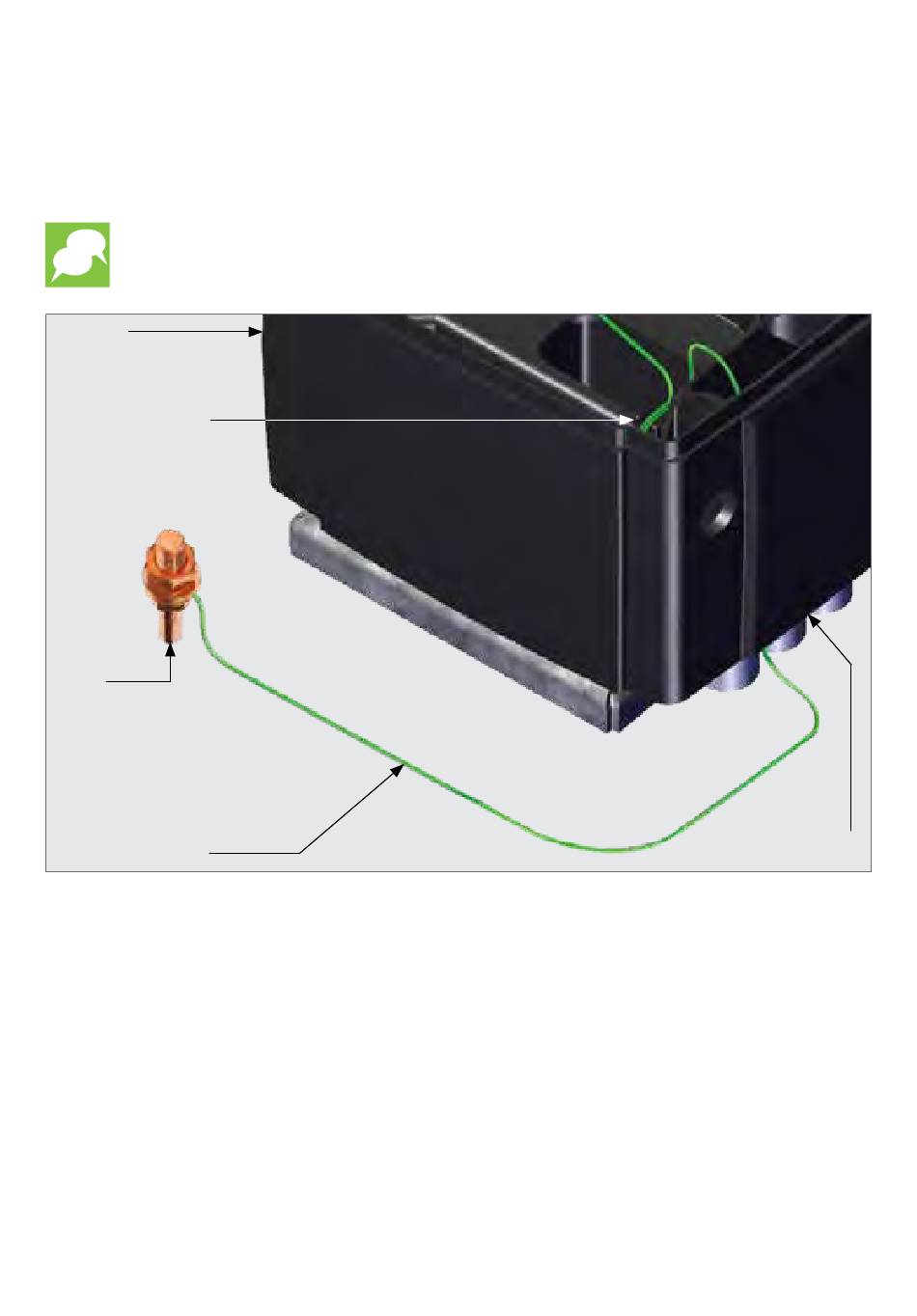

For further surge protection, an Earth Spike
from the Earth Spike around to the back of the D5 SMART, and under the Gearbox by
the Cable Shield. Connect it to the Mounting Bolt on the right of the Gearbox where the
Charger Earth is located by means of a Ring Lug.
See Section 7.9.2.1. - "Placing and Routing the Earth Harness".
Utilise the Cable Management Clip to keep the wiring neat and out of the way.
Gearbox
Cable Management
Clip
Earth
Spike
Earth Return Cable
1. Not supplied with the D5 SMART.
can be installed. Route the earth cable
1
page 51
Cable
Shield
FIGURE 87
