8.3. Wiring the Control Card on its Default Settings

The D5 SMART Control Card's Input / Output terminals are defaulted with the following
configuration;
Control Card
Terminal
I/O1
I/O2
I/O3 Infrared Beam Close (IRBC)

8.3.1. Closing Infrared Beam Wiring (I5 Infrared Beams)

IRB Receiver
NC
COM
NO
IRB Transmitter
Please contact Centurion
Systems (Pty) Ltd for directions
on wiring Infrared Beams in an
opening configuration.
Default Setting
Trigger (TRG)
Pedestrian (PED)
12V/24V -
12V/24V +
COM
NC
12V/24V +
12V/24V -
page 48
COMPLETING THE INSTALLATION
Control Card
Default Setting
Terminal
I/O4
I/O5
I/O6
Gate Status
Free-exit (FRX)
Safe Common
TABLE 2
D5 SMART
Control Card

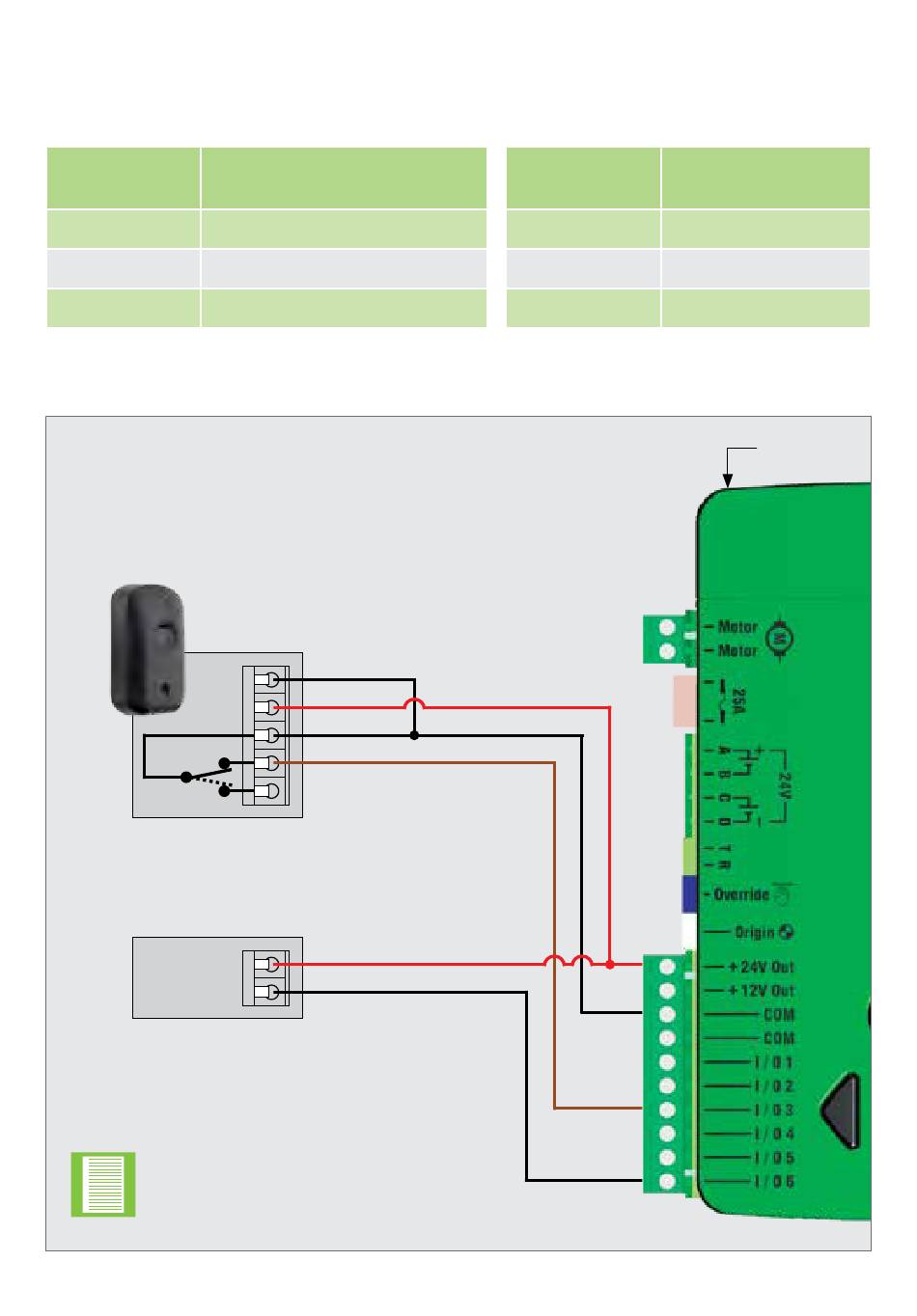

FIGURE 84
