SECTION 5

5.2. Endstops

Fit opening and closing endstops capable of stopping the gate at rated speed. Refer to
the specifications at the beginning of this manual for the operating speed.
Make H1>H2 to ensure gate will not jump over the endstop.
Opening and closing endstops are mandatory and must be fitted to
prevent death or accidental injury as the operator uses and confirms
these limits during operation.
Endstop
H1

5.3. Guide-rollers and Anti-lift Brackets

Guide-rollers must be installed to ensure that the gate is held vertical. For improved
safety, fit additional support posts to prevent the gate from falling over should the
guide-rollers fail.
To prevent unauthorised access, fit anti-lift brackets as shown.
The gap between the anti-lift bracket and the gate must be less than 5mm.
Ensure that the gate cannot be lifted off the motor pinion with the anti-lift
bracket fitted.
Guide-rollers and
Anti-Lift Bracket
Additional
support post
NEW SITE INSTALLATION PREPARATION
H2

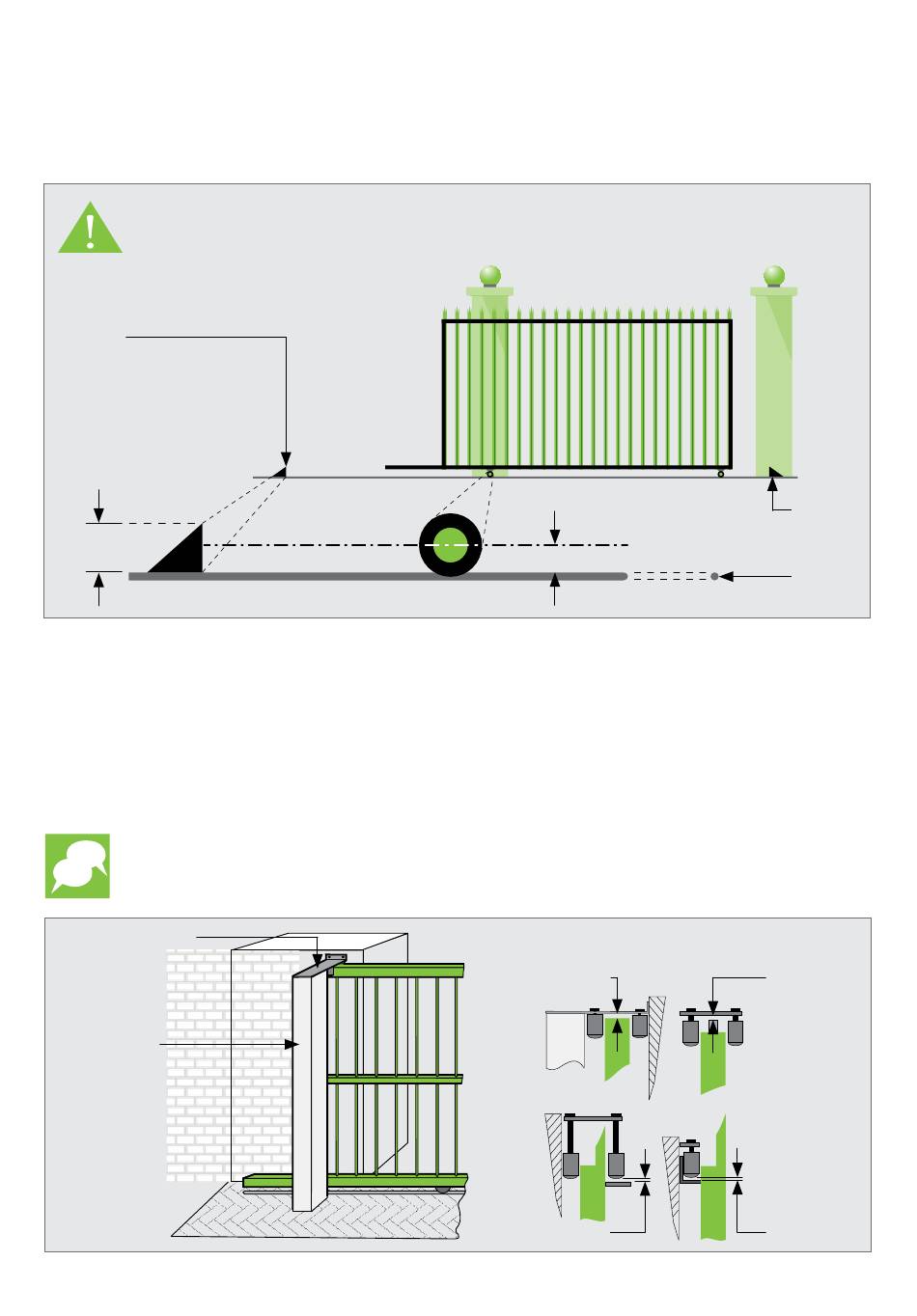

FIGURE 4. FITTING ENDSTOPS
Side view of gate and different
Guide-roller options
GAP <5mm
GAP <5mm
FIGURE 5. FITTING GUIDE-ROLLERS
page 14
Endstop
Ø16mm
GAP <5mm
GAP <5mm
