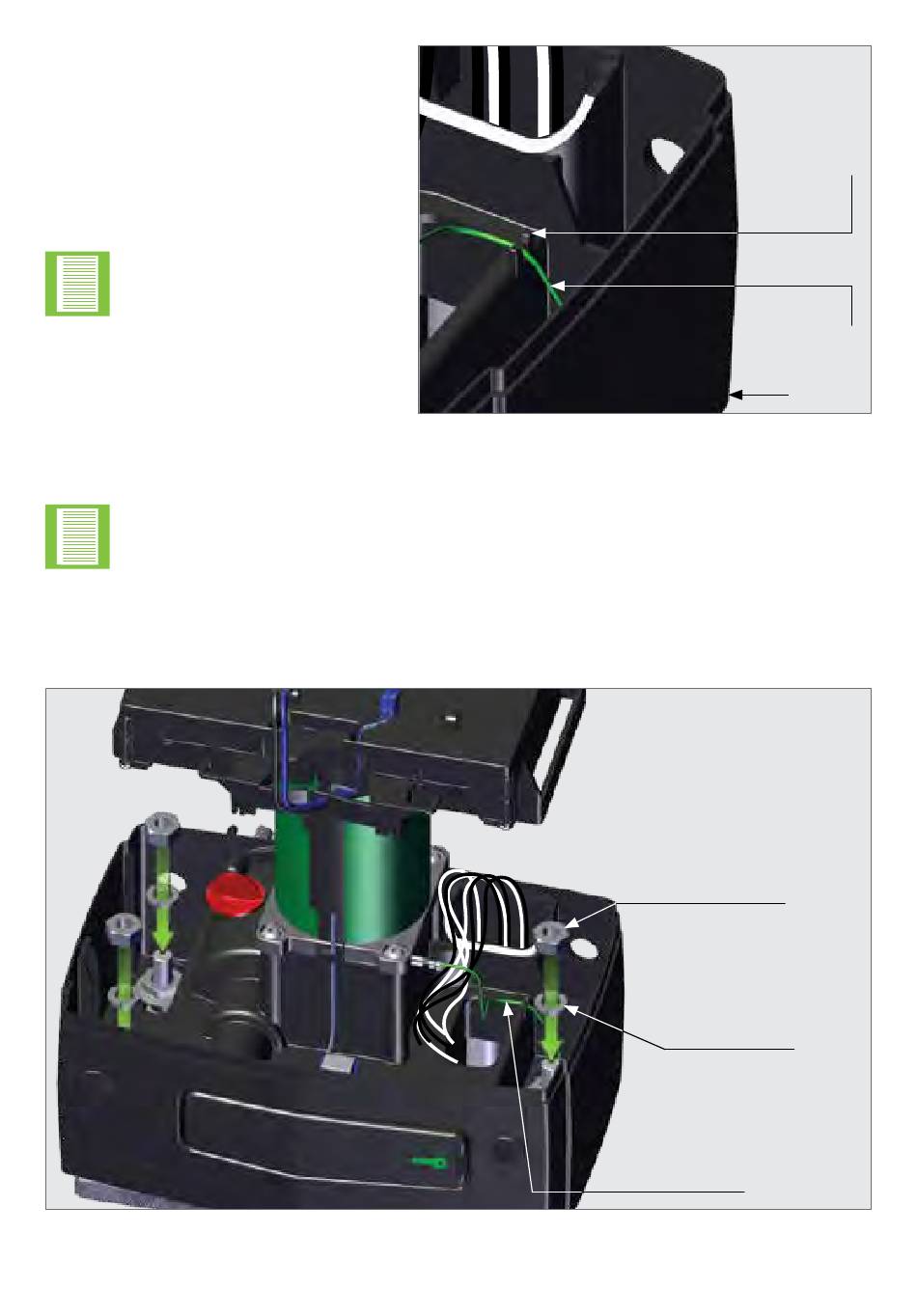

Route the Earth Harness up to
the left and place it into the Cable
Management Clip as shown in
Figure 67.
The Earth Harness will
need to be routed under
the battery at a later
stage.
7.9.2.2. Placing the Spring Washers and Lock Nuts
Only add the Spring Washers and Lock Nuts once the Rack has been installed
and the operator height is correct.
Place one Spring Washer and one Lock Nut onto each of the Mounting Bolts. Tighten all of
the Lock Nuts with a 17mm socket to secure the Earth Harness and the height of the D5
SMART firmly in position.
page 41
Cable
Management
Clip
Earth
Harness
Gearbox
FIGURE 67
Lock Nut
Spring
Washer
Earth Harness
FIGURE 68
