SECTION 7
Foundation Plate
Raised Concrete
Foundation
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and top edge of the Rack Tooth
RAZ Rack
Flat bar welded
to foundation plate
and rail
Concrete Foundation
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and bottom edge of the Rack Tooth
25mm
(Typical Steel
Rack Width)
Minimum space from edge
of foundation plate to reference
point of edge that protrudes
49mm-51mm

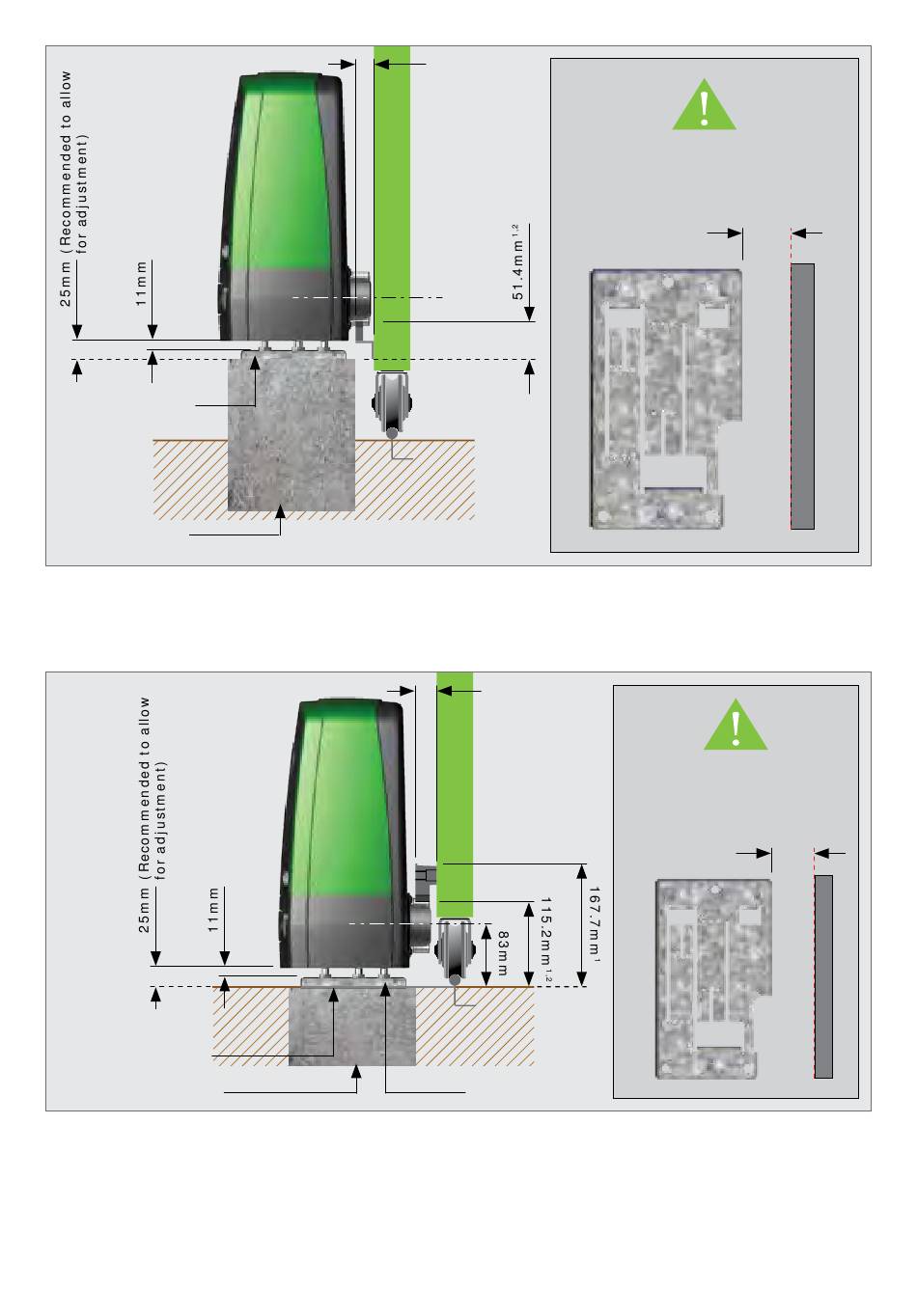

FIGURE 13. STEEL RACK BELOW PINION
29.5mm
(Typical RAZ
Rack Width)
Foundation Plate
FIGURE 14. RAZ RACK ABOVE PINION
page 21
OPERATOR INSTALLATION
the furthest.
(Section 7.1.1.)
Minimum space from edge
of foundation plate to
reference point of edge that
protrudes the furthest.
(Section 7.1.1.)
53mm-55mm
