SECTION 8

8. Completing the Installation

8.1. Fitting the Batteries

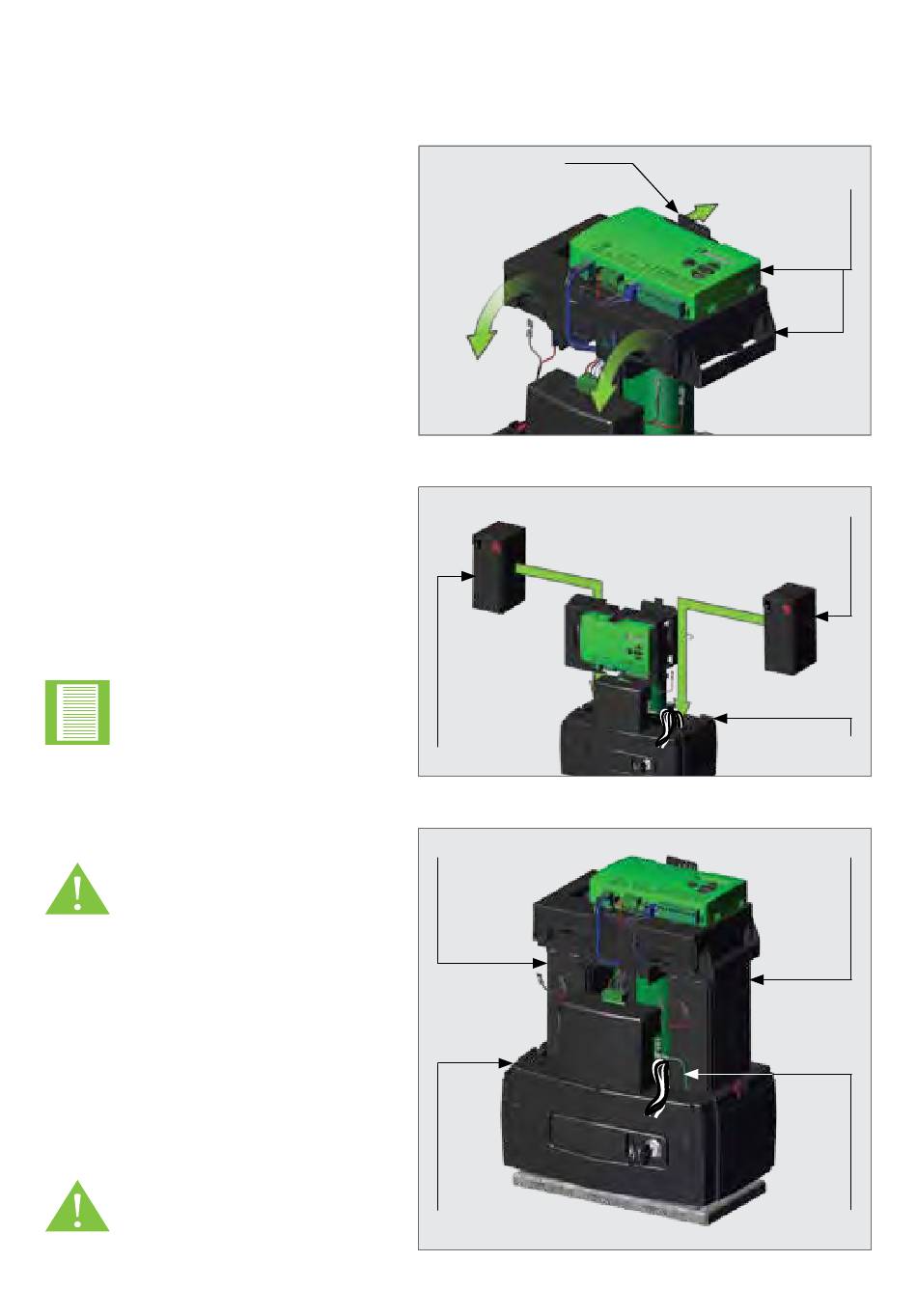

Gently push the left tab behind the
Control Card backwards. This will
allow the entire upper assembly to
hinge forward.
Place a Battery into the designated
area found on top of the Lower
Battery Tray on the left. Route the
Power and Signal cables between
the right Battery compartment and
the Electric Motor then place the
remaining Battery in it's designated
area on the right.
Note the orientation of
the two Batteries. Ensure
that the Battery Terminals
always face the direction of
the Charger.
Take extra care not to
pinch the Earth Harness
when placing the Battery
on the right. The Earth
Harness must be routed
under this Battery and
out the gap found in front
of the Battery once in
position.
Swing the upper assembly back into
position over the batteries.
A click should be heard if this is done
correctly.
Failure to properly click
the control card and
upper assembly into
place will result in erratic
behavior of the gate
motor.
COMPLETING THE INSTALLATION
Push the left tab
backwards
Battery
Battery
Lower
Battery Tray
page 46
Swing the upper
assembly forward
FIGURE 78
Battery
Lower
Battery Tray
FIGURE 79
Battery
Earth
Harness
FIGURE 80
