SECTION 7
Foundation Plate
Raised Concrete
Foundation
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and top edge of the Rack Tooth
29mm
(Typical Nylon
Rack Width)
Minimum space from edge
of foundation plate to reference
point of edge that protrudes
53mm-55mm

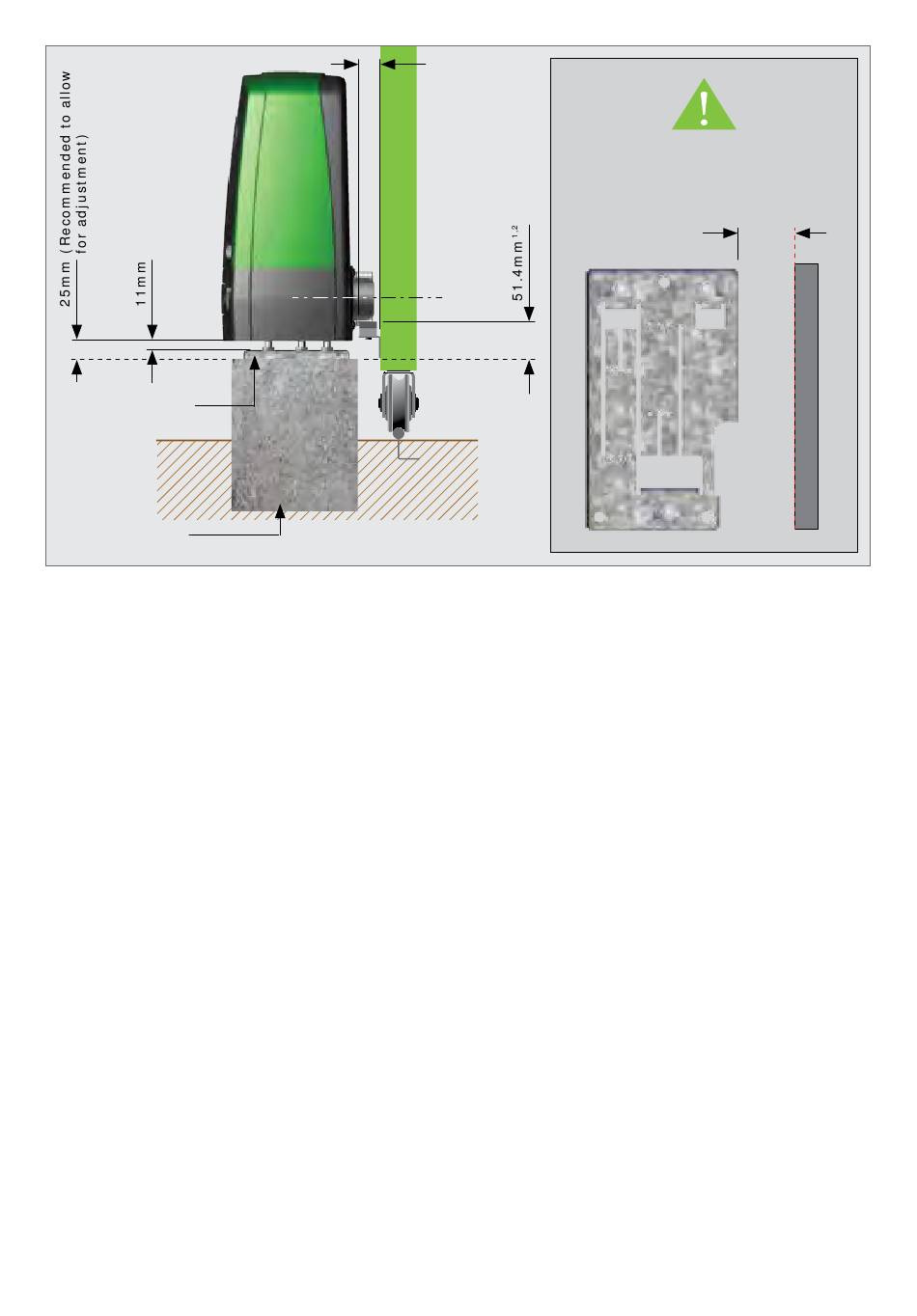

FIGURE 17. NYLON RACK BELOW PINION
page 23
OPERATOR INSTALLATION
the furthest.
(Section 7.1.1.)
