SECTION 7

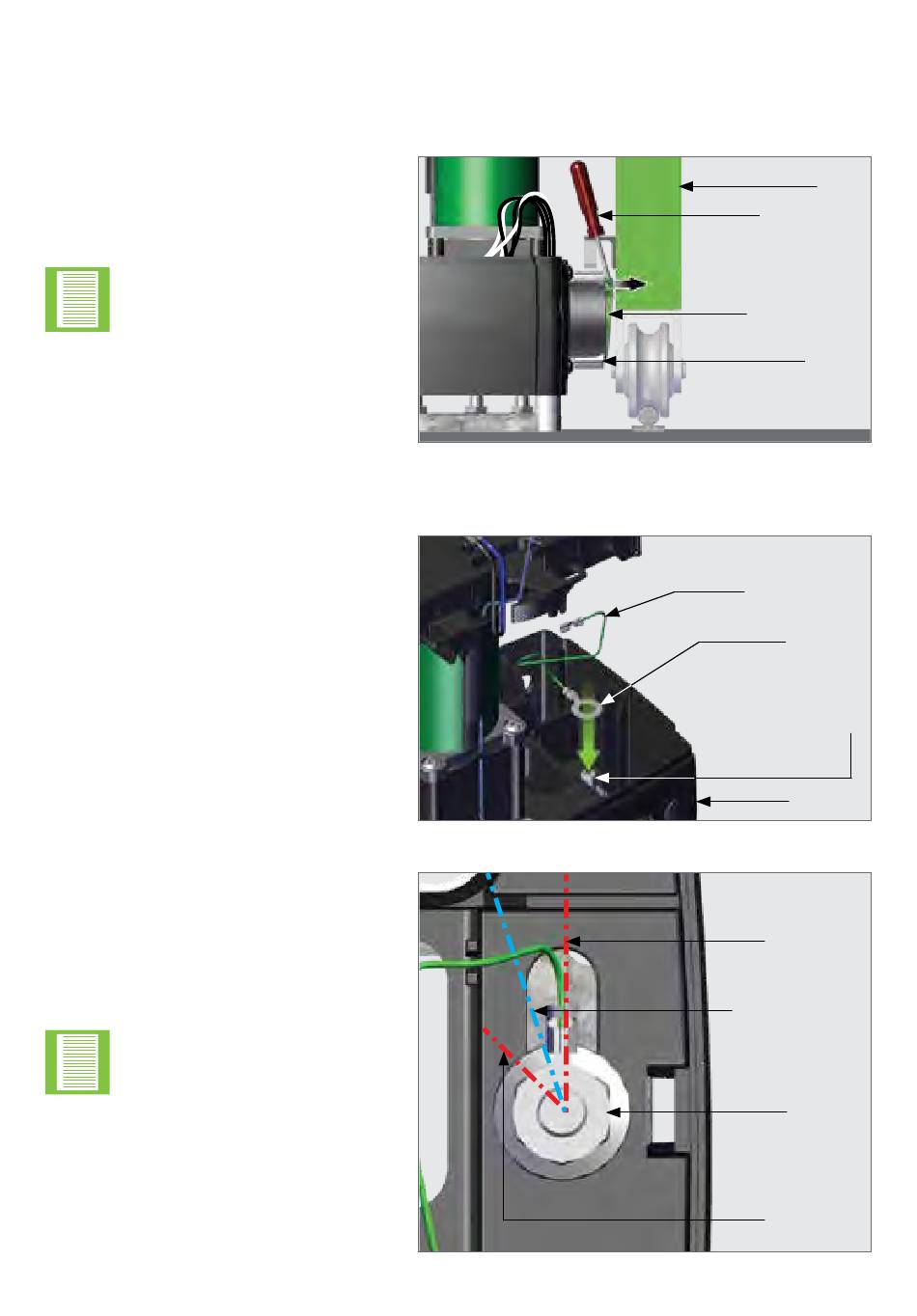

7.9.2. Finalising the Height Adjustment

Once the rack has been fixed to the entire length of the gate, use a screwdriver to
carefully remove the Pinion Spyder from the Pinion of the D5 SMART.
Slide the D5 SMART away
from the gate so that the
rack is centred above the
Pinion.
Final adjustment to the
position of the gearbox
should be done at this
point.
7.9.2.1. Placing and Routing the Earth Harness
Place the Ring Lug-end of the Earth
Harness onto the mounting bolt on
the right-hand side of the Gearbox.
To ensure that the Earth
Harness is able to reach the
Charger once connected to
the mounting bolt,
it is recommended that it
is positioned at the angle
depicted by the middle
line, but not at an angle
exceeding the lines at
either side of it as the Earth
Harness will not be able to
reach the Charger.
page 40
OPERATOR INSTALLATION
Gate
Screwdriver
Pinion Spyder
Pinion
FIGURE 64
Earth Harness
Ring Lug
Mounting
Bolt
Gearbox
FIGURE 65
Do not
exceed this
angel
Middle Line
(Ideal position)
Ring Lug
Do not
exceed this
angel
FIGURE 66
