SECTION 7

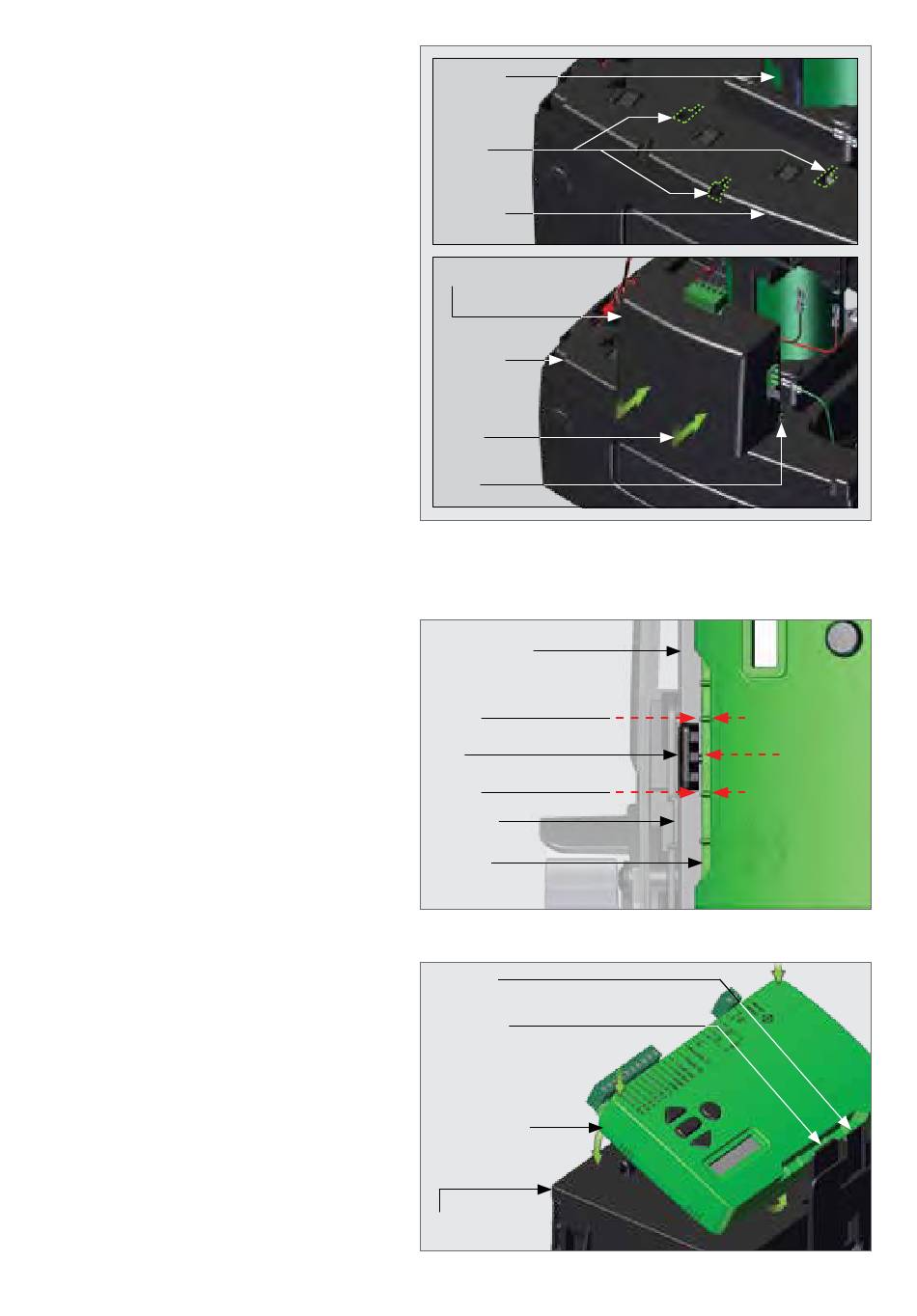

Place the Charger back into position
by aligning the three feet at the
bottom of the Charger with the three
slots found on top of the Lower
Battery Tray.
Place the studs of the Charger into
the three holes on the Lower Battery
Tray. Firmly press the Charger down,
and push it toward the Electric
Motor, sliding it along the slots.

7.10.4. Placing the Control Card back into Position

Tilt the control card and align the
wider gap with the clips shown in
Figure 73.
Once aligned, hinge the Control Card
under the tab's lip, and firmly press
downward on both sides in front of
the Control Card.
This will engage the Control Card
into the hinges at the front of the
Control Card Support Tray.
A click from both sides will be heard
if this is done correctly.
Electric
Motor
Slots
Lower
Battery
Tray
Charger
Lower
Battery
Tray
Stud
Slot
FIGURE 72. CHARGER PLACEMENT
Control Card
Support Tray
Ridge
Clip
Ridge
Left Tab
Control
Card
Left Tab
Right Tab
Control Card
Control Card
Support Tray
page 44
OPERATOR INSTALLATION
Wider gap
FIGURE 73
FIGURE 74
