SECTION 7

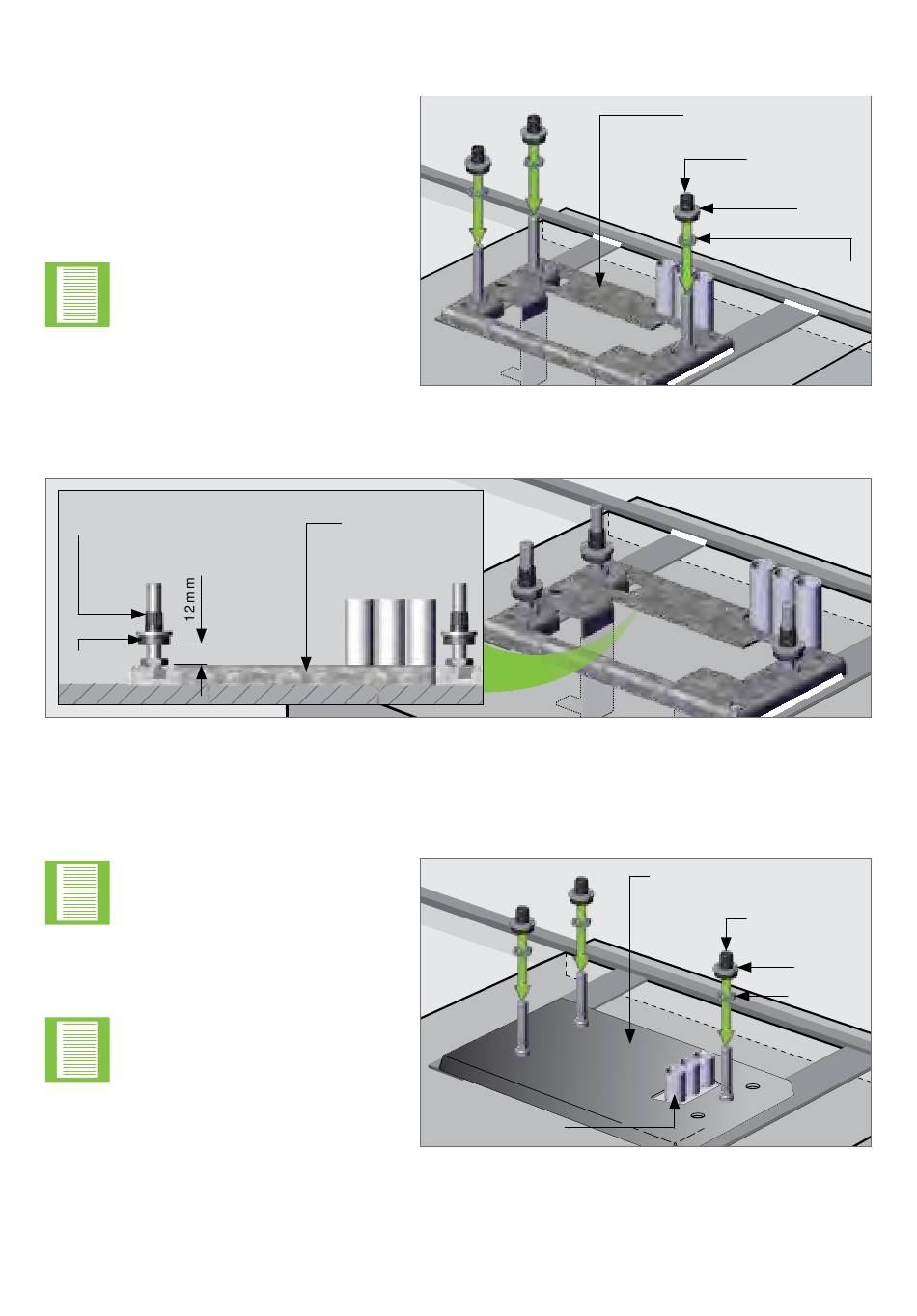

7.5. Mounting the Gearbox

For a new site installation, place
a Half-nut and a Bottom Height
Adjuster onto each Mounting Bolt as
shown in Figure 35.
Note the orientation of the
Bottom Height Adjusters.
Adjust the Half-nuts to be 12mm clear from the Foundation Plate.
Bottom Height
Adjuster
Half-
Nut
For a retro-fit installation, remove the original washers and height adjustment nuts from
the existing foundation plate and then place a Half-nut and a Bottom Height Adjuster
onto each existing Mounting Bolt, as shown in Figure 37.
Note the orientation of the
Bottom Height Adjusters.
If the existing unit
was mounted with the
maximum clearance to
the foundation plate, the
new unit will require that
the rack be re-adjusted to
obtain the correct mesh
between the rack and
pinion.
D5 SMART
Foundation Pate
Existing Conduit
page 30
OPERATOR INSTALLATION
D5 SMART Foundation
Plate
Bottom Height
Adjuster
Washer
Half-nut
FIGURE 35
FIGURE 36
Existing D3, D5, or D5-Evo
Foundation Plate
Bottom Height
Adjuster
Washer
Half-Nut
FIGURE 37
