7.10.5. Reconnecting the Harnesses to the Control Card and Charger

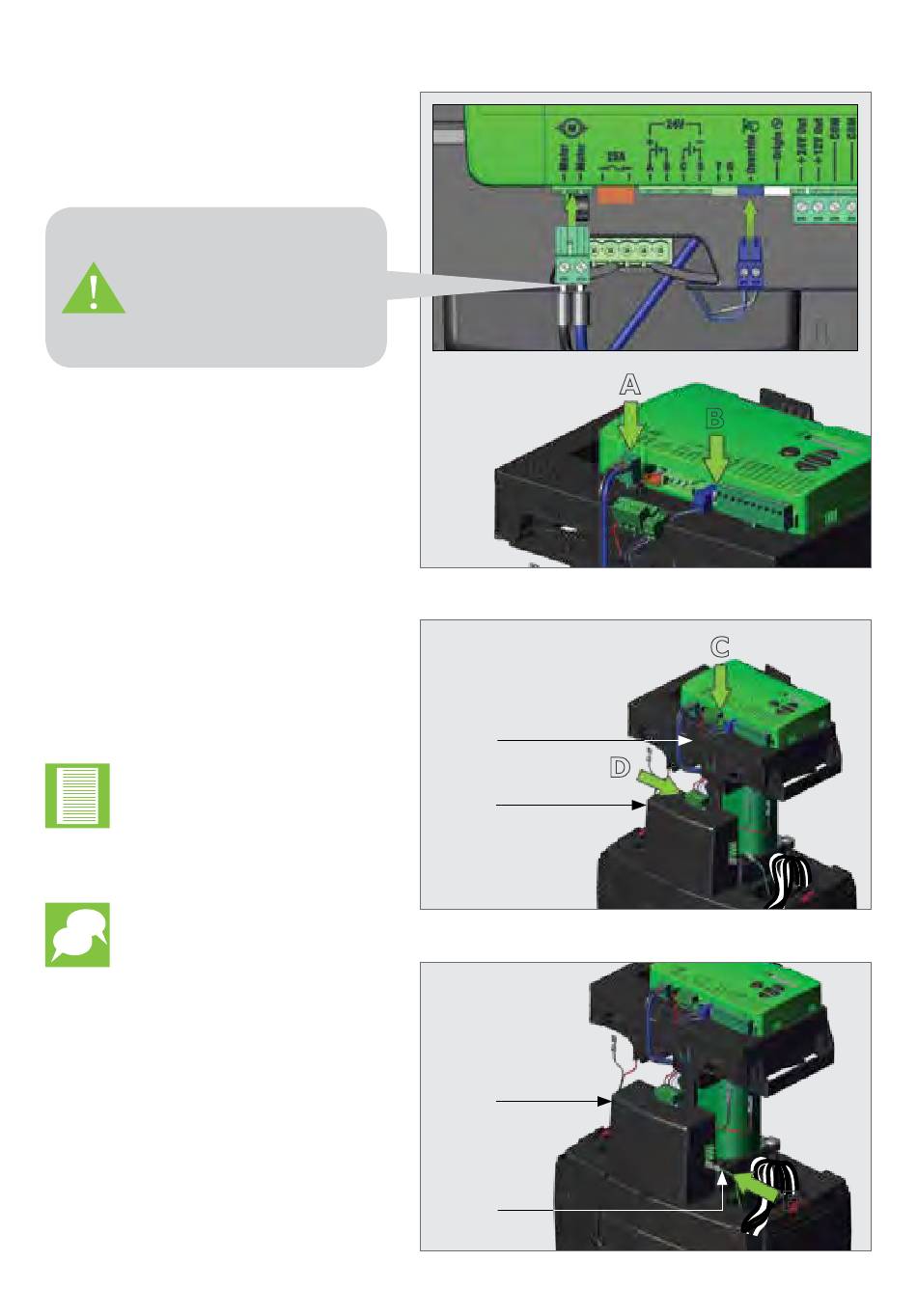

Reconnect the Motor Wires at
Position "A" and the Override
Harness at Point "B" on the Control
card.
The black motor wire
is connected on the
far Left of the Control
Card, and the blue on
the immediate right of
the black.
Reconnect the Charger Harness
to the point from which it was
disconnected earlier, either at
Position "C" or at Position "D".
If the connection is made
at Point "C", note that
there are two connector
blocks that need to be
reconnected to the
Control Card.
Utilise the Cable Retainers
at the bottom of the
accessory storage to neaten
up the wiring, and the
overall installation.
Connect the Earth Harness into the
right-hand side of the Charger at
Point "E".
Harness
Charger
Charger
Earth
Harness
page 45
A B
A
B
FIGURE 75
C
D
FIGURE 76
E
FIGURE 77
