SECTION 7
Slide the gate halfway along the first section and level the unsecured end, ensuring that
the rack is resting on the Pinion Spyder, not pressing down. Continue this way to fix all
sections.
Before fully fixing each section of rack, slide the gate backwards and forwards
along the section, checking that the rack is only resting on the Pinion Spyder,
and not pressing down onto it.
First
Secured End
Pinion Spyder
Foundation
Plate

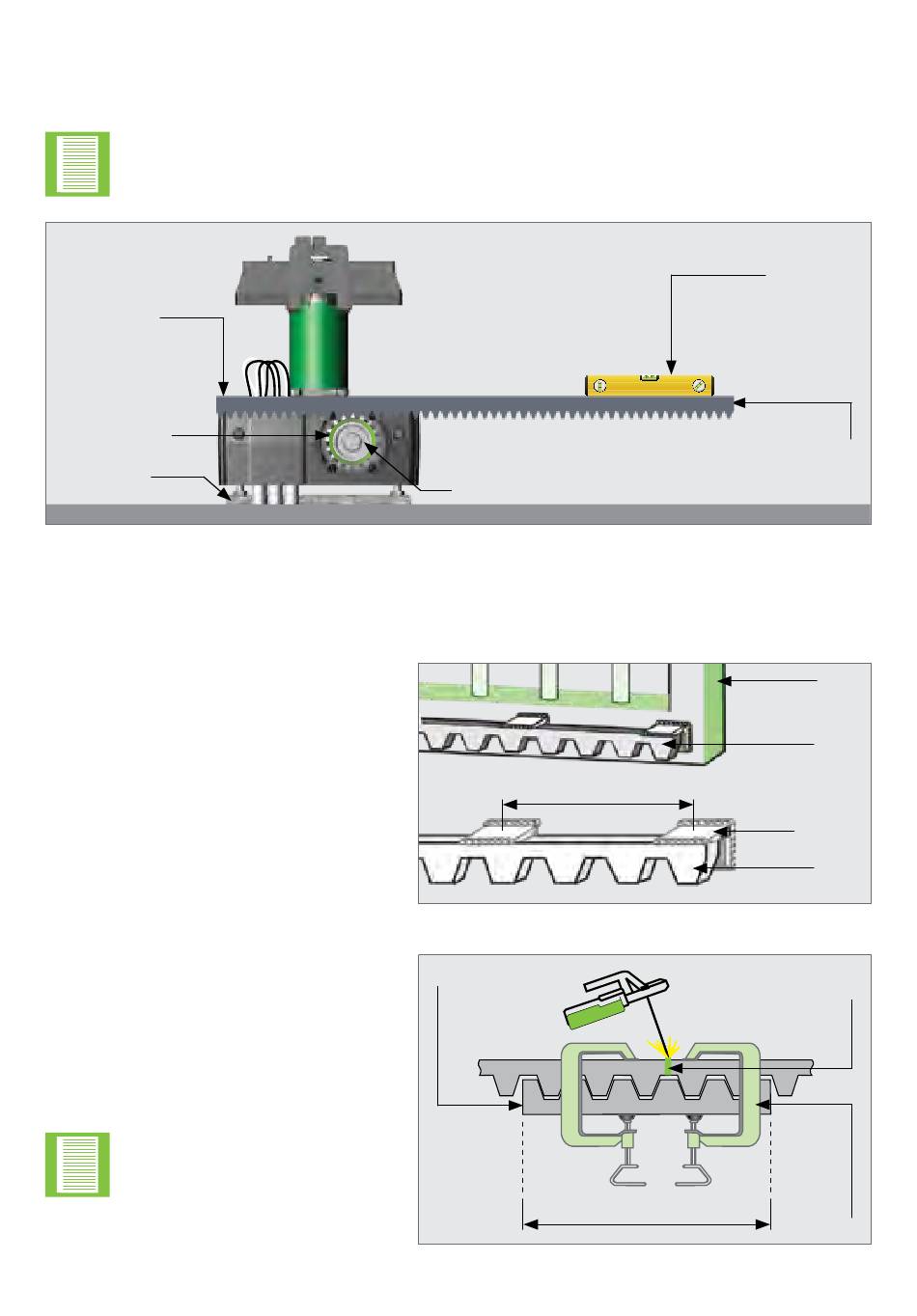

FIGURE 56. THE RACK AND OPERATOR FROM THE GATE'S PERSPECTIVE

7.9.1. Fitting Different Types of Rack to the Gate

Steel Rack
Fix the Steel Rack with the steel
angle brackets provided. The
brackets must be spaced no more
than 300mm apart.
When joining different lengths of
Steel Rack, a simple way of ensuring
that the correct pitch spacing is
achieved, is to clamp a small off-cut
between the two pieces.
Do not weld the off-cut
to the gate or the join.
Pinion
±300mm
Off-cut
page 37
OPERATOR INSTALLATION
Spirit Level
Level this end of the rack,
and fix it to the gate
FIGURE 57
±300mm
FIGURE 58
www.centsys.com
Gate
Steel
Rack
Steel
Bracket
Steel
Rack
Welded
join
Clamp
