CENTURION SYSTEMS D5 SMART Installation Manual page 33

SECTION 7

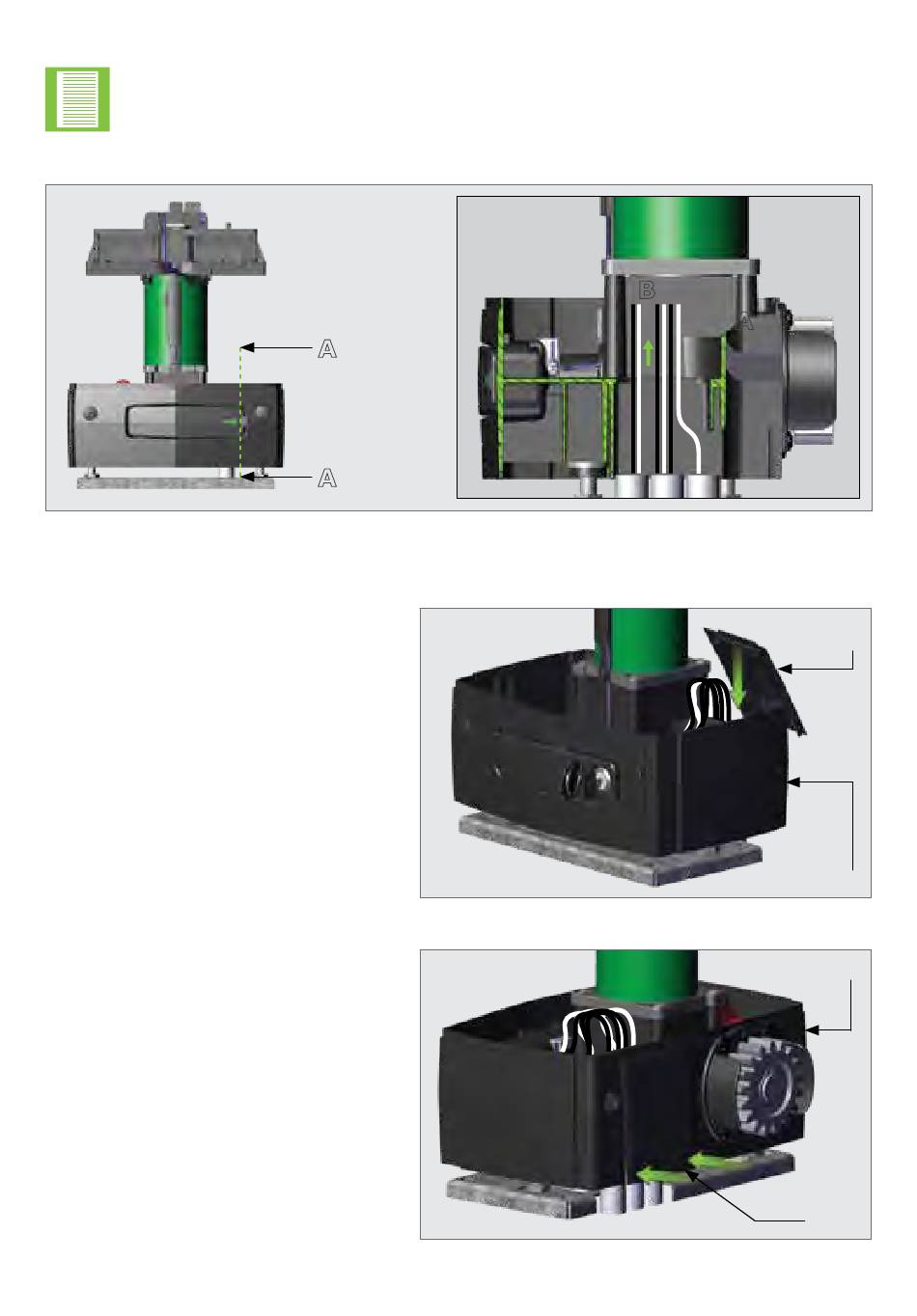

Should the existing cables for a retro-fit installation be too short to route
through "Point A" as shown in Figure 43 on the previous page, they can be
routed directly through "Point B" to accommodate the shorter length. Note that
routing the cables through "Point B" as shown in Figure 44, may make it more
challenging to remove the D5 SMART for whatever reason at a later stage.
FIGURE 44. CABLE ROUTING FOR RETRO-FITS WITH SHORTER CABLES
Replacing the Cable Shield onto the Gearbox
Tilt the top of the Cable Shield
towards the Gearbox, and slide it
down so that the top of the Cable
Shield is flush with the top edge of
the Gearbox.
From the other side of the gate,
firmly push the bottom sides of the
Cable Shield inward, towards the
gearbox.
Two clicks will be heard (one from
each side of the Cable Shield) if the
Cable Shield has engaged with the
gearbox correctly.
Section View A-A
A
A
page 33
OPERATOR INSTALLATION
B
A
Gearbox
FIGURE 45
Gearbox
FIGURE 46
www.centsys.com
Cable
Shield
Cable
Shield
