SECTION 8

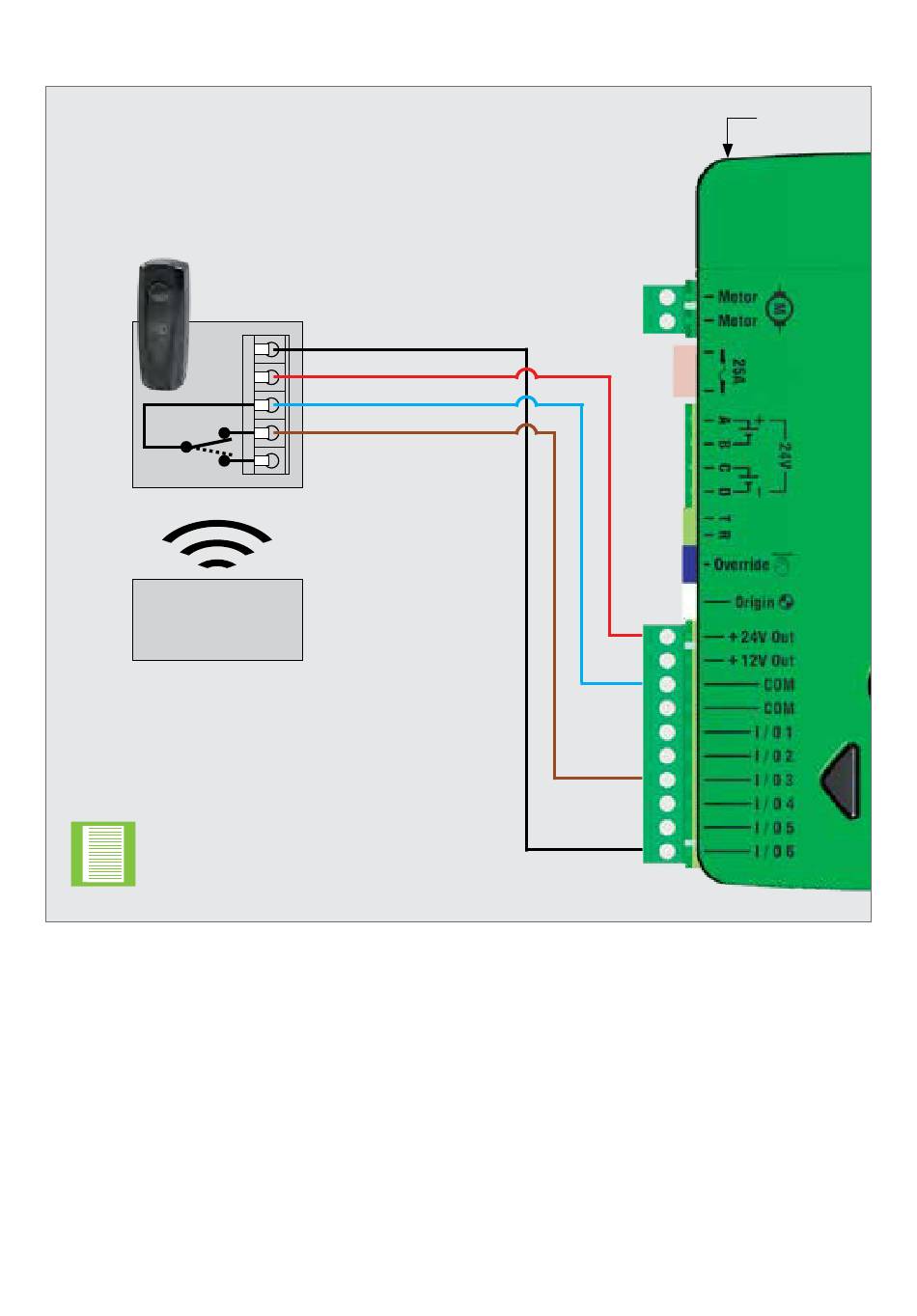

8.3.2. Closing Infrared Beam Wiring (Photon Infrared Beams)
NC
COM
NO
Wireless IRB
Transmitter
Please contact Centurion
Systems (Pty) Ltd for directions
on wiring Infrared Beams in an
opening configuration.
IRB
Receiver
12V/24V -
12V/24V +
COM
NC
COMPLETING THE INSTALLATION
page 49
D5 SMART
Control Card
FIGURE 85
