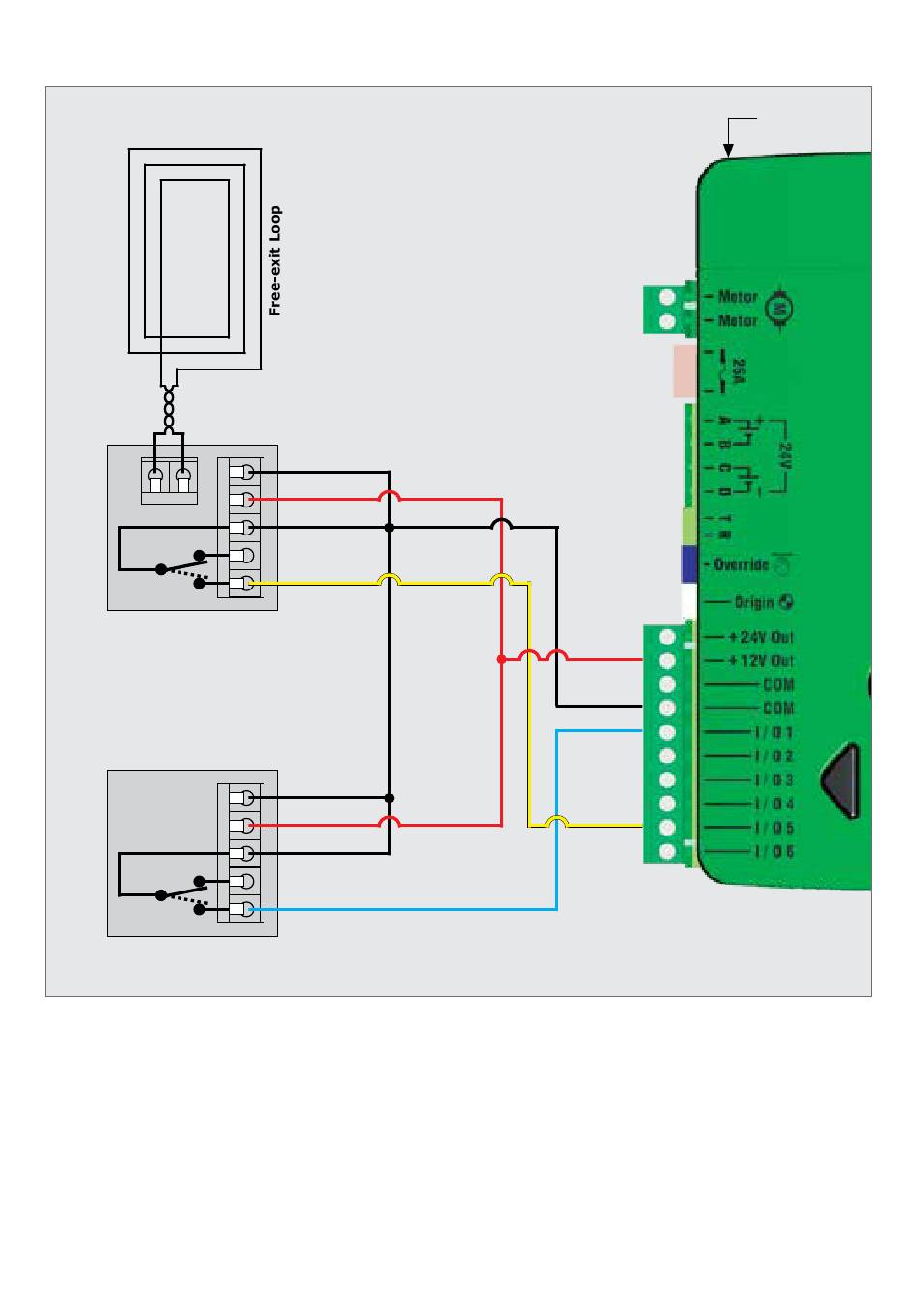

8.3.3. External Radio Receiver and Loop Detector Wiring

NC
COM
NO
Loop Detector
External Radio
Receiver
NC
COM
NO
12V/24V -
12V/24V +
COM
NO
12V/24V -
12V/24V +
COM
NO
page 50
COMPLETING THE INSTALLATION
Control Card
FIGURE 86
